DMX controlled operation
You can control the projectors individually via your DMX-controller
Addressing
The control board allows you to assign the DMX starting address,
Note; it's necessary to insert the XLR termination plug (with 120ohm) in the last device in the link in order to ensure proper
transmission on the DMX data link.

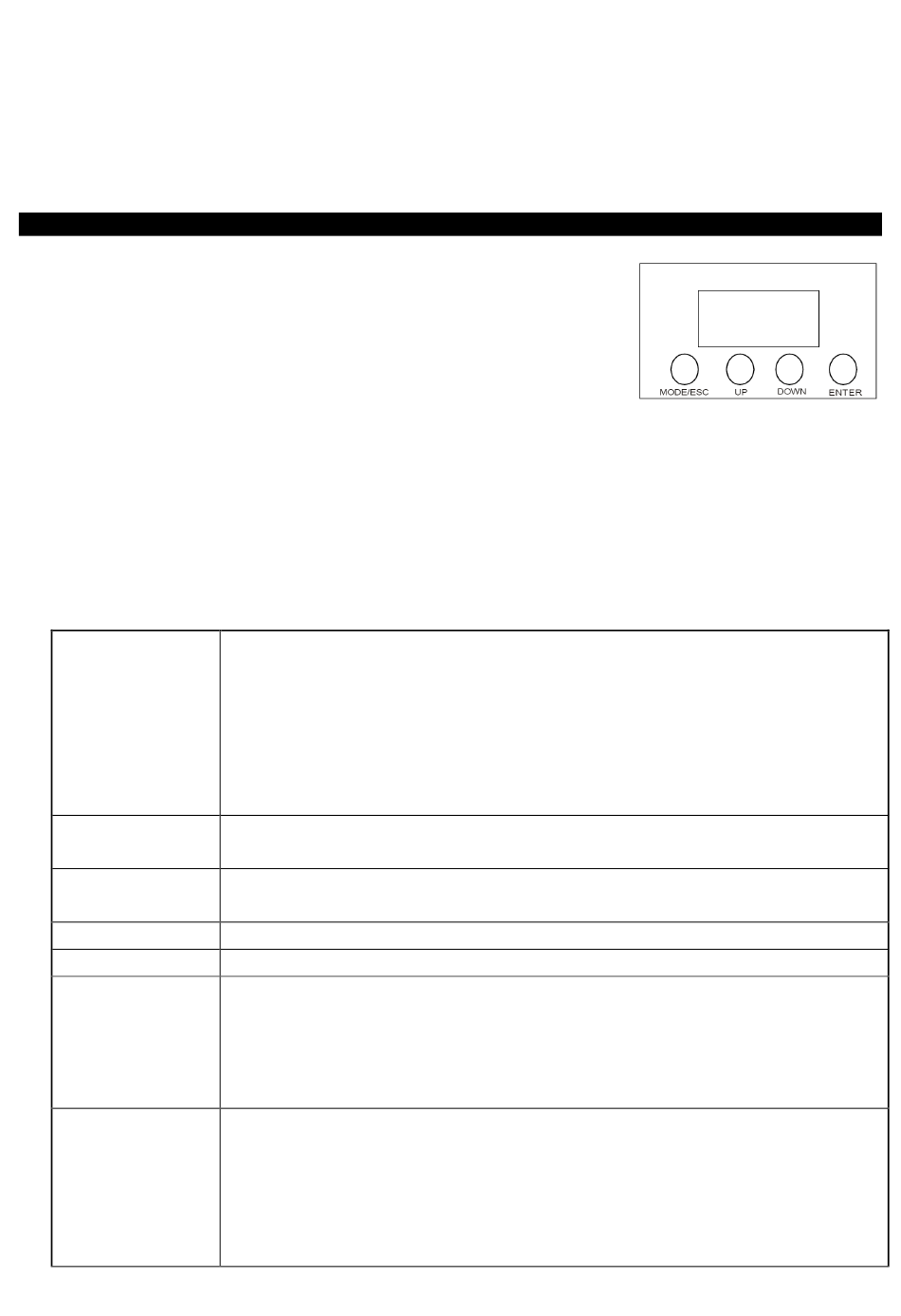

CONTROL PANEL

The control panel offers several features: you can simple set the starting address, run
the pre-programmed program or make a reset.
• The main menu is accessed by pressing the Mode/Esc-button.
• Browse through the submenu by pressing Up or Down.
• Press the Enter-button in order to select the desired menu. You can change the
selection by pressing Up or Down. Confirm every selection by pressing the Enter
button.
• You can leave every mode by pressing the Mode/Esc-button.
The functions provided are described in the following setting.
M EN U M A P
The device has two operation modes: It can be operated in manual or DMX mode.
When in Master/Slave Mode, only one unit in a series chain can be set as the master.
STAT
AUTO
SOUD
RUN
DMX
PERS
PARCOB150RGB-MKIII
PERS
PARCOB100HEX
©Copyright Lotronic 2019
R.000 Adjust red color from 0~255
G.000 Adjust green color from 0~255
B.000 Adjust blue color from 0~255
Y.000 Adjust Amber color from 0-255 (only PARCOB100HEX)
W.000 Adjust white color from 0~255 (only PARCOB100HEX)
U.000 Adjust UV color from 0~255 UV (only PARCOB100HEX)
ST.00
Adjust strobe effect from 0~20
AT From AT01 to AT10 with 10 different auto modes
PR From PR01 to PR10 with 10 different modes
MOD1 Sound control with color change
MOD2 Sound control with color strobe
DMX and SLAV mode for selection
Adjust DMX value from 001 to 512
STRG Run static mode, 10 channels with details on DMX protocol
ARC.1 Run 3 channel mode Red/Green/Blue
AR1.D Run 4 channel mode Dimmer/Red/Green/Blue
AR1.5 Run 5 channel mode Dimmer/Red/Green/Blue/Strobe
HSV. Adjust Color in Hue (0~255), Saturation (0~255 )and Value (0~255)
STRG Run static mode ,13 channel with details on dmx protocol
ARC.1 Run 3 channel mode Red/Green/Blue
AR1.D Run 4 channel mode Dimmer/Red/Green/Blue
ARC.2 Run 6 channel mode Red/Green/Blue/Amber/White/UV
AR2.D Run 7 channel mode Dimmer/Red/Green/Blue/Amber/White/UV
AR2.5 Run 8 channel mode Dimmer/Red/Green/Blue/Amber/White/UV/Strobe
