Turbo suction brush
WARNUNG! Danger of injury: Never reach into the rotating brush roller when
working with the turbo suction brush.

Vacuum cleaning

A
C
E
D

Dustbag change indicator


NOTICE!
In case of full dust bag, as well as with clogged up accessories (hose, tube, nozzles), the fil-
ter exchange indicator " [D] " lights up. In order to make an accurate evaluation, press press
the switch on the maximum vacuum power position " [C] " and lift the floor suction nozzle
from the floor. In this case, replace the dust bag and/or the clogged filters or remove the stop-
page.
12

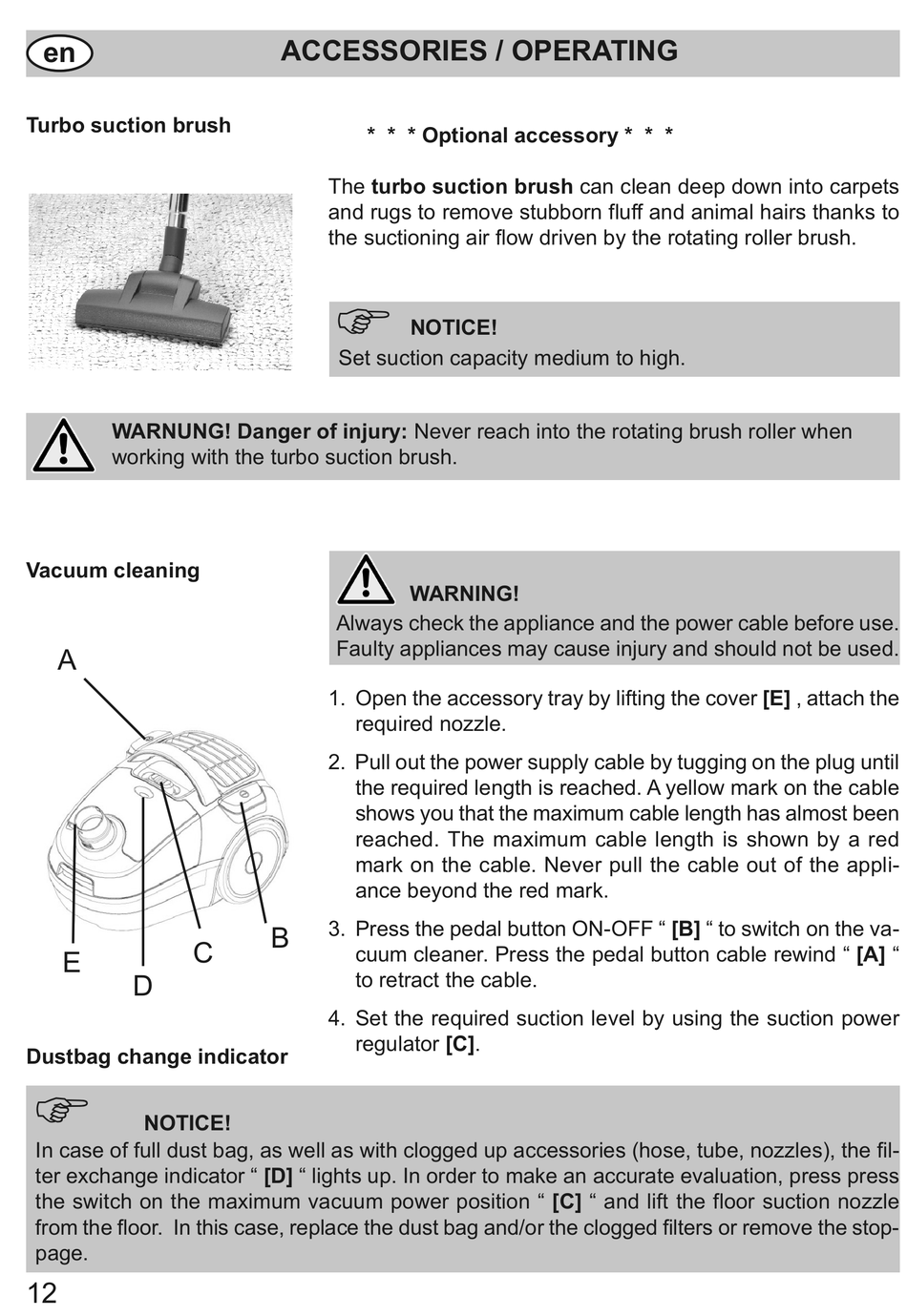

ACCESSORIES / OPERATING
* * * Optional accessory * * *
The turbo suction brush can clean deep down into carpets
and rugs to remove stubborn fluff and animal hairs thanks to
the suctioning air flow driven by the rotating roller brush.

NOTICE!
Set suction capacity medium to high.
WARNING!
Always check the appliance and the power cable before use.
Faulty appliances may cause injury and should not be used.
1. Open the accessory tray by lifting the cover [E] , attach the
required nozzle.
2. Pull out the power supply cable by tugging on the plug until
the required length is reached. A yellow mark on the cable
shows you that the maximum cable length has almost been
reached. The maximum cable length is shown by a red
mark on the cable. Never pull the cable out of the appli-
ance beyond the red mark.
3. Press the pedal button ON-OFF " [B] " to switch on the va-
B
cuum cleaner. Press the pedal button cable rewind " [A] "
to retract the cable.
4. Set the required suction level by using the suction power
regulator [C].
