3.1 Protective devices
The machine may only be operated with the Flange head!

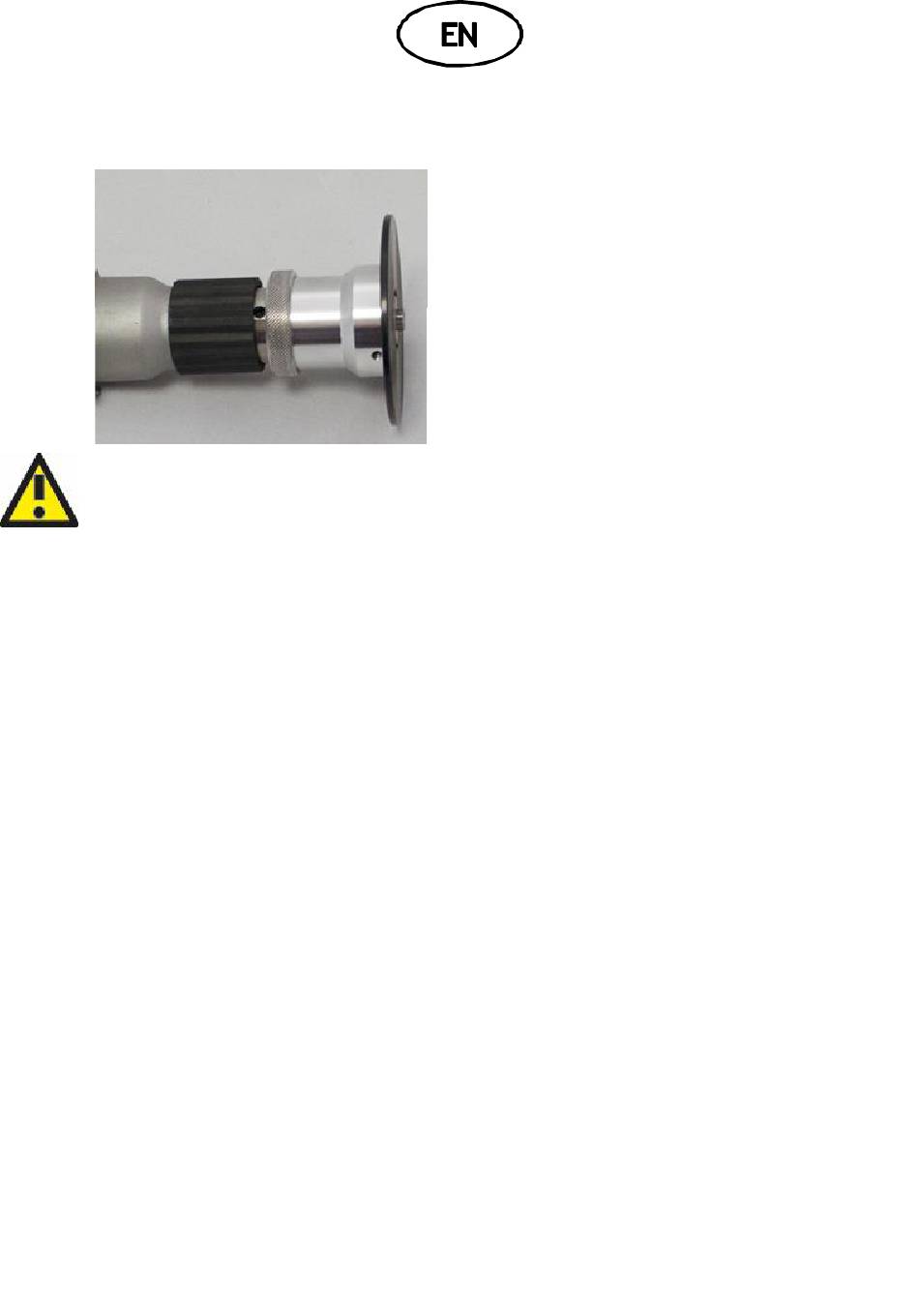

3.1.1 Flange head
Adapt Flange head
• Turn the lock ring counter clockwise to unlock the flange head.
• Turn the Flange head until it has reached the right depth.
• Turn the lock ring clockwise to lock the flange head.
Cleaning depth mechanism
• Remove guide bearing and bevel head.
• Turn the Flange head until it comes off.
• Clean all parts and replace defective parts.
• Lubricate the thread with Teflon spray and gears with a little multi-purpose grease.
• Re‐assemble in reverse order.
