Asus Eee PC 1005HA Hard Drive Replacement

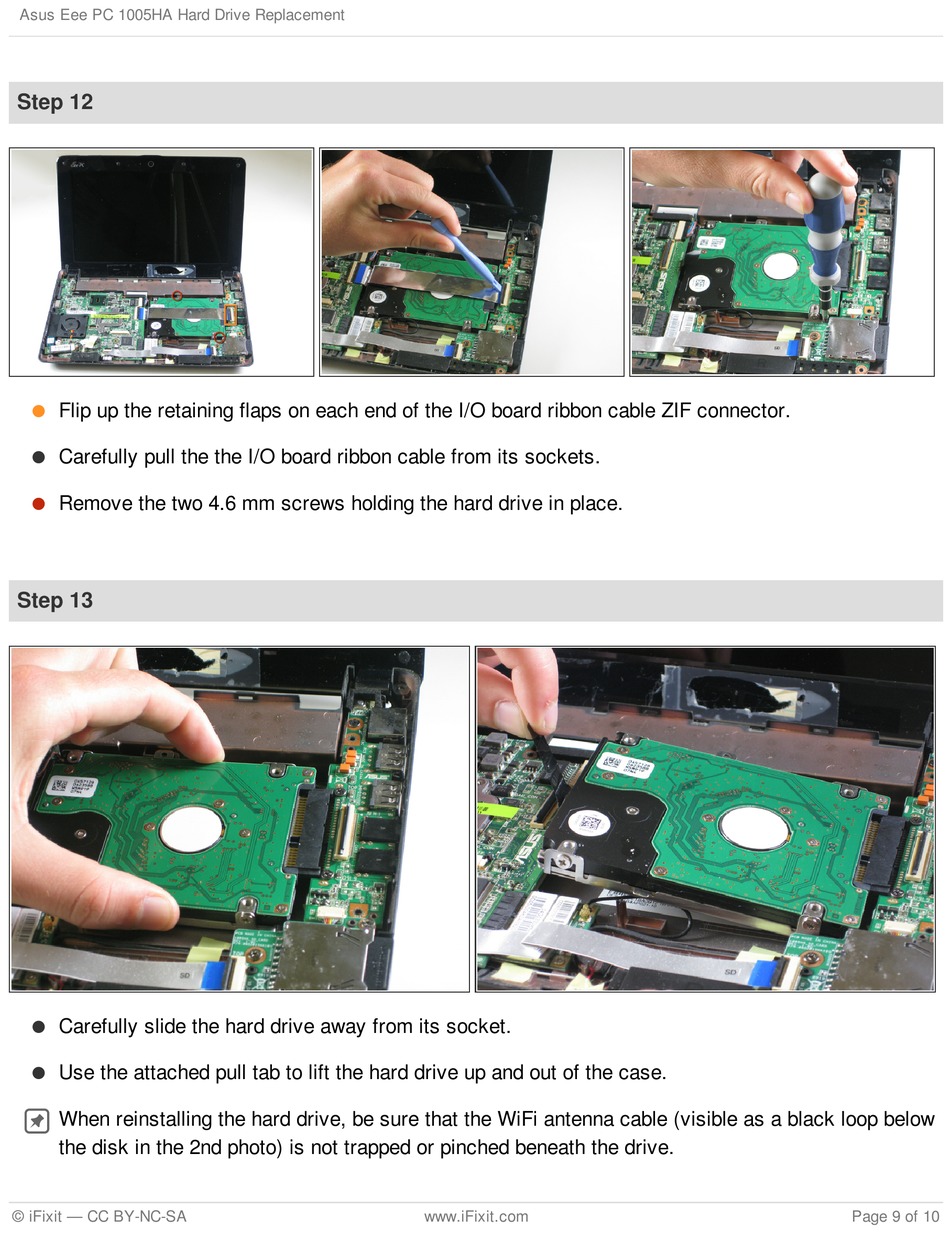

Step 12
Flip up the retaining flaps on each end of the I/O board ribbon cable ZIF connector.

Carefully pull the the I/O board ribbon cable from its sockets.

Remove the two 4.6 mm screws holding the hard drive in place.

Step 13
Carefully slide the hard drive away from its socket.

Use the attached pull tab to lift the hard drive up and out of the case.

 When reinstalling the hard drive, be sure that the WiFi antenna cable (visible as a black loop below
the disk in the 2nd photo) is not trapped or pinched beneath the drive.
