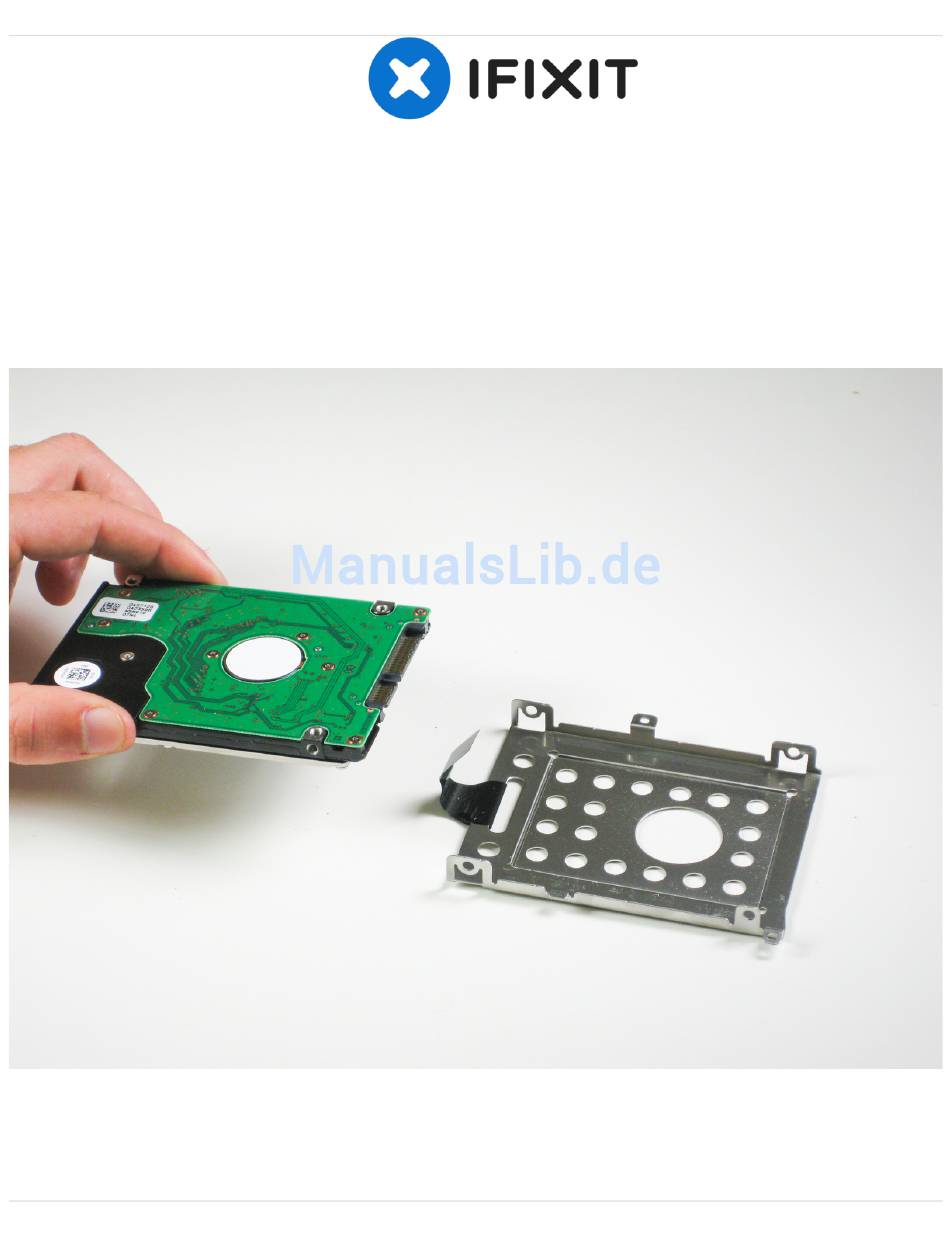

Asus Eee PC 1005HA Hard Drive Replacement
Asus Eee PC 1005HA Hard Drive Replacement
Replace the hard drive in your Asus Eee PC 1005HA.
Written By: Mitchell Cesare
© iFixit — CC BY-NC-SA
www.iFixit.com
Page 1 of 10

Werbung

loading

Verwandte Anleitungen für iFixit 1005ha

Inhaltszusammenfassung für iFixit 1005ha

  • Seite 1 Asus Eee PC 1005HA Hard Drive Replacement Asus Eee PC 1005HA Hard Drive Replacement Replace the hard drive in your Asus Eee PC 1005HA. Written By: Mitchell Cesare © iFixit — CC BY-NC-SA www.iFixit.com Page 1 of 10...
  • Seite 2 Asus Eee PC 1005HA Hard Drive Replacement INTRODUCTION Use this guide to replace or upgrade the hard drive in the Asus Eee PC 1005HA. TOOLS: Phillips #1 Screwdriver iFixit Opening Tools © iFixit — CC BY-NC-SA www.iFixit.com Page 2 of 10...
  • Seite 3 Asus Eee PC 1005HA Hard Drive Replacement Step 1 — Battery Lay the laptop upside down.  Locate the two battery lock tabs.  Step 2 Slide the tabs outward to unlock the battery.  The left tab will remain unlocked, while the right tab must be held.
  • Seite 4 Asus Eee PC 1005HA Hard Drive Replacement Step 3 — Keyboard Use a plastic opening tool to pull out the four metal latches in the battery cavity.  Do not apply too much pressure to the latches. They cannot be removed, and will bend if forced.
  • Seite 5 Asus Eee PC 1005HA Hard Drive Replacement Step 5 Using a spudger, release the tabs on  the keyboard ribbon cable ZIF connector. Depending on the variation of this  model, the tabs on this ZIF connector will either flip up towards the display or push out towards the display.
  • Seite 6 Asus Eee PC 1005HA Hard Drive Replacement Step 7 Remove the panel covering the RAM.  Pull the two RAM retaining arms away from the center of the RAM chip.  Gently pull the RAM chip out of its socket.
  • Seite 7 Asus Eee PC 1005HA Hard Drive Replacement Step 9 Flip the laptop back over and open the display.  Remove the six 5.5 mm screws from the metal plate beneath the keyboard.  © iFixit — CC BY-NC-SA www.iFixit.com Page 7 of 10...
  • Seite 8 Asus Eee PC 1005HA Hard Drive Replacement Step 10 Using a plastic opening tool, carefully detach the five plastic clips securing the upper case.  There are two small LEDs in the top edge of the lower casing, near the bottom right of the laptop.
  • Seite 9 Asus Eee PC 1005HA Hard Drive Replacement Step 12 Flip up the retaining flaps on each end of the I/O board ribbon cable ZIF connector.  Carefully pull the the I/O board ribbon cable from its sockets.  Remove the two 4.6 mm screws holding the hard drive in place.
  • Seite 10 Asus Eee PC 1005HA Hard Drive Replacement Step 14 Remove the four 3.6 mm screws from the hard drive tray.  Remove the hard drive from the tray.  To reassemble your device, follow these instructions in reverse order. This document was last generated on 2017-06-21 06:56:14 PM.
