- Seite 1 Asus Eee PC 1005HA Screen Replacement Asus Eee PC 1005HA Screen Replacement Replace the screen on your Asus Eee PC 1005HA. Written By: Mitchell Cesare © iFixit — CC BY-NC-SA www.iFixit.com Page 1 of 6...
- Seite 2 Asus Eee PC 1005HA Screen Replacement INTRODUCTION Use this guide to replace the screen of the Replace the screen on your Asus Eee PC 1005HA laptop. TOOLS: PARTS: Phillips #00 Screwdriver 10" PC Laptop LCD HSD100IFW1 Phillips #1 Screwdriver Tweezers ©...
- Seite 3 Asus Eee PC 1005HA Screen Replacement Step 1 — Battery Lay the laptop upside down. Locate the two battery lock tabs. Step 2 Slide the tabs outward to unlock the battery. The left tab will remain unlocked, while the right tab must be held.
- Seite 4 Asus Eee PC 1005HA Screen Replacement Step 3 — Screen Using tweezers, remove the six screw covers on the screen bezel. Remove the six 4.6 mm screws from the bezel. Step 4 Use a plastic opening tool to ...

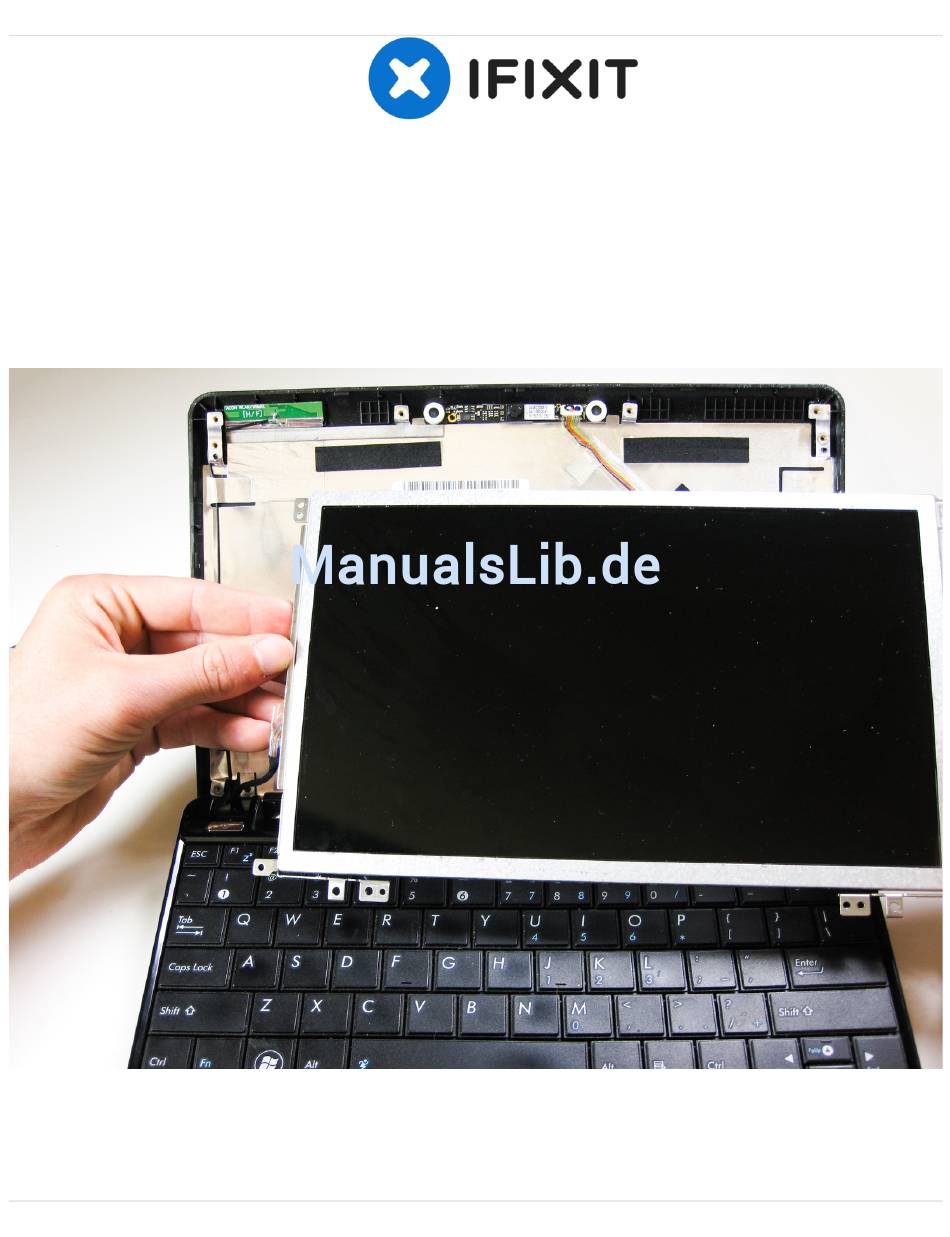

- Seite 5 Asus Eee PC 1005HA Screen Replacement Step 5 Remove the four 3.6 mm screws securing the screen. Slowly lift the screen up from the rest of the laptop. The screen is still attached to the laptop by a set of cables. Be careful not to damage them while ...
- Seite 6 Asus Eee PC 1005HA Screen Replacement Step 7 Remove the four 3.1 mm housing screws on the sides of the display housing frame Remove the housing frame. To reassemble your device, follow these instructions in reverse order. This document was last generated on 2017-06-20 07:45:42 AM.
