Asus Eee PC 1005HA Bluetooth Module Replacement
Asus Eee PC 1005HA Bluetooth Module
Replacement
This guide will show you step by step directions on how to repair a damaged Bluetooth component
for Asus Eee PC 1005HA good luck.
Written By: Maged Hanna
© iFixit — CC BY-NC-SA
www.iFixit.com
Page 1 of 9
Werbung
Verwandte Anleitungen für iFixit 1005ha
Inhaltszusammenfassung für iFixit 1005ha
- Seite 1 Asus Eee PC 1005HA Bluetooth Module Replacement Asus Eee PC 1005HA Bluetooth Module Replacement This guide will show you step by step directions on how to repair a damaged Bluetooth component for Asus Eee PC 1005HA good luck. Written By: Maged Hanna ©...
- Seite 2 Asus Eee PC 1005HA Bluetooth Module Replacement TOOLS: iFixit Opening Tools Phillips #1 Screwdriver © iFixit — CC BY-NC-SA www.iFixit.com Page 2 of 9...
- Seite 3 Asus Eee PC 1005HA Bluetooth Module Replacement Step 1 — Keyboard Use a plastic opening tool to pull out the four metal latches in the battery cavity. Do not apply too much pressure to the latches. They cannot be removed, and will bend if forced.
- Seite 4 Asus Eee PC 1005HA Bluetooth Module Replacement Step 3 Using a spudger, release the tabs on the keyboard ribbon cable ZIF connector. Depending on the variation of this model, the tabs on this ZIF connector will either flip up towards the display or push out towards the display.
- Seite 5 Asus Eee PC 1005HA Bluetooth Module Replacement Step 5 Remove the RAM lid This may involve using the spudger to unclip the edges of the cover Battery is shown still attached in picture, but can be removed prior to removing RAM ...

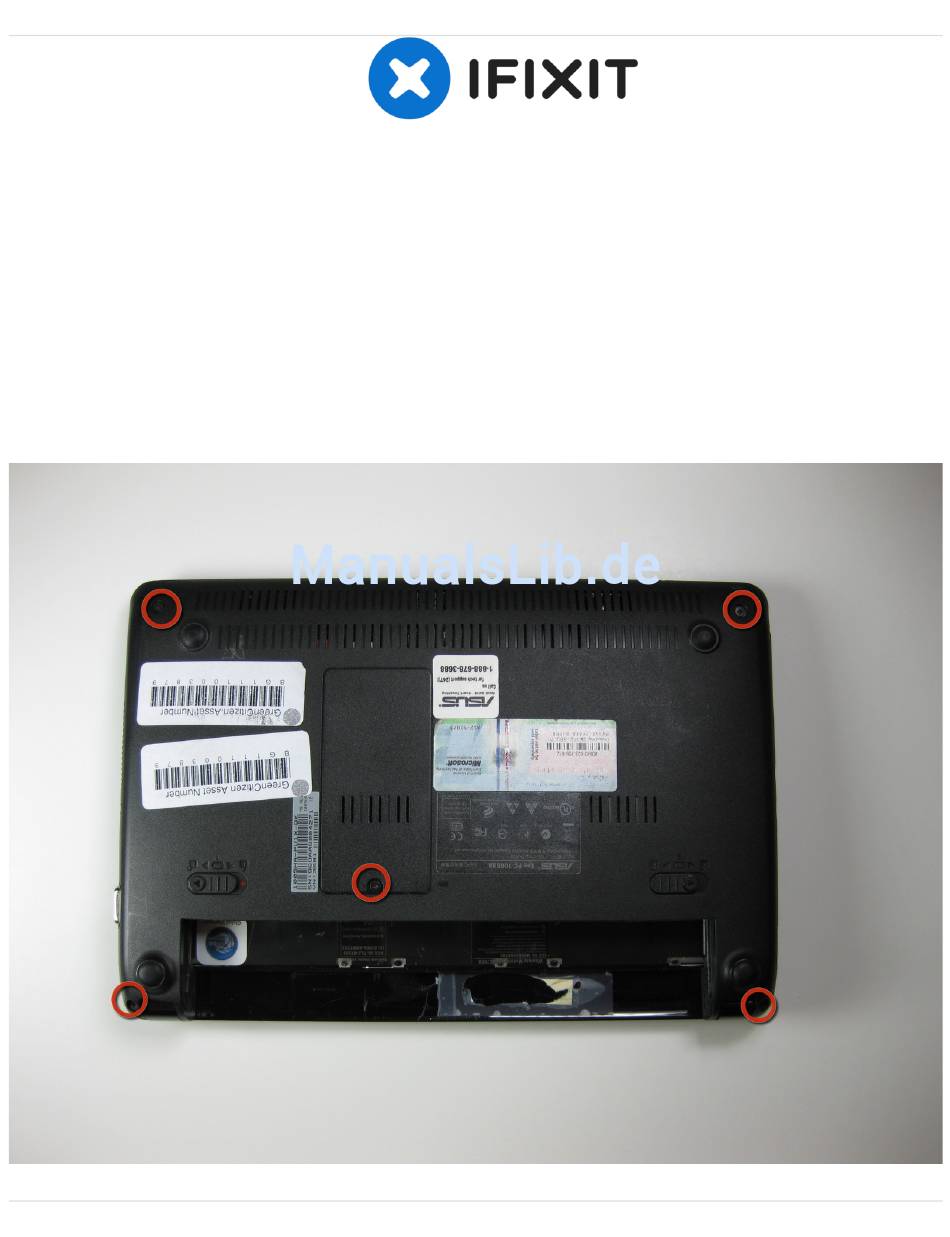

- Seite 6 Asus Eee PC 1005HA Bluetooth Module Replacement Step 7 Flip back over, open Remove 6 screws (5.5 mm) on inside covering. Disconnect the touch pad ribbon cable, visible through a window at the bottom edge of the metal ...
- Seite 7 Asus Eee PC 1005HA Bluetooth Module Replacement Step 8 Detach the five plastic clips. You need to run a plastic opening tool along the underside of the top half. You will hear the 'clicks' of the clips coming undone.
- Seite 8 Asus Eee PC 1005HA Bluetooth Module Replacement Step 9 Detach trackpad ribbon by raising up black pad (This can also be done during step 4, through a window in the metal chassis; in this way you lessen the...
- Seite 9 Asus Eee PC 1005HA Bluetooth Module Replacement © iFixit — CC BY-NC-SA www.iFixit.com Page 9 of 9...
