Asus Eee PC 1005HA Hard Drive Replacement

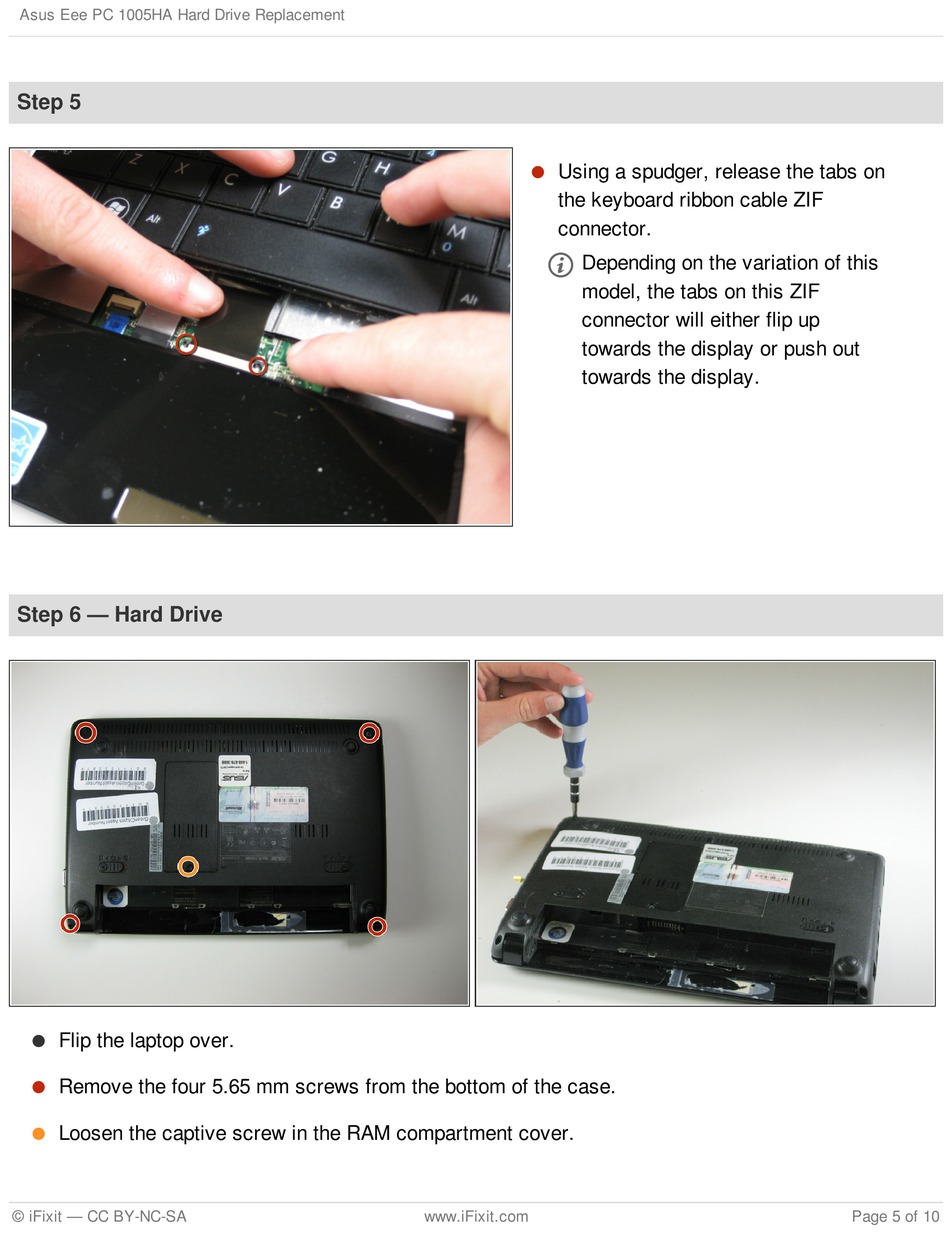

Step 5
Step 6 — Hard Drive
Flip the laptop over.

Remove the four 5.65 mm screws from the bottom of the case.

Loosen the captive screw in the RAM compartment cover.

© iFixit — CC BY-NC-SA
Using a spudger, release the tabs on

the keyboard ribbon cable ZIF
connector.
Depending on the variation of this

model, the tabs on this ZIF
connector will either flip up
towards the display or push out
towards the display.
www.iFixit.com Page 5 of 10
