Asus Eee PC 1005HA Bluetooth Module Replacement

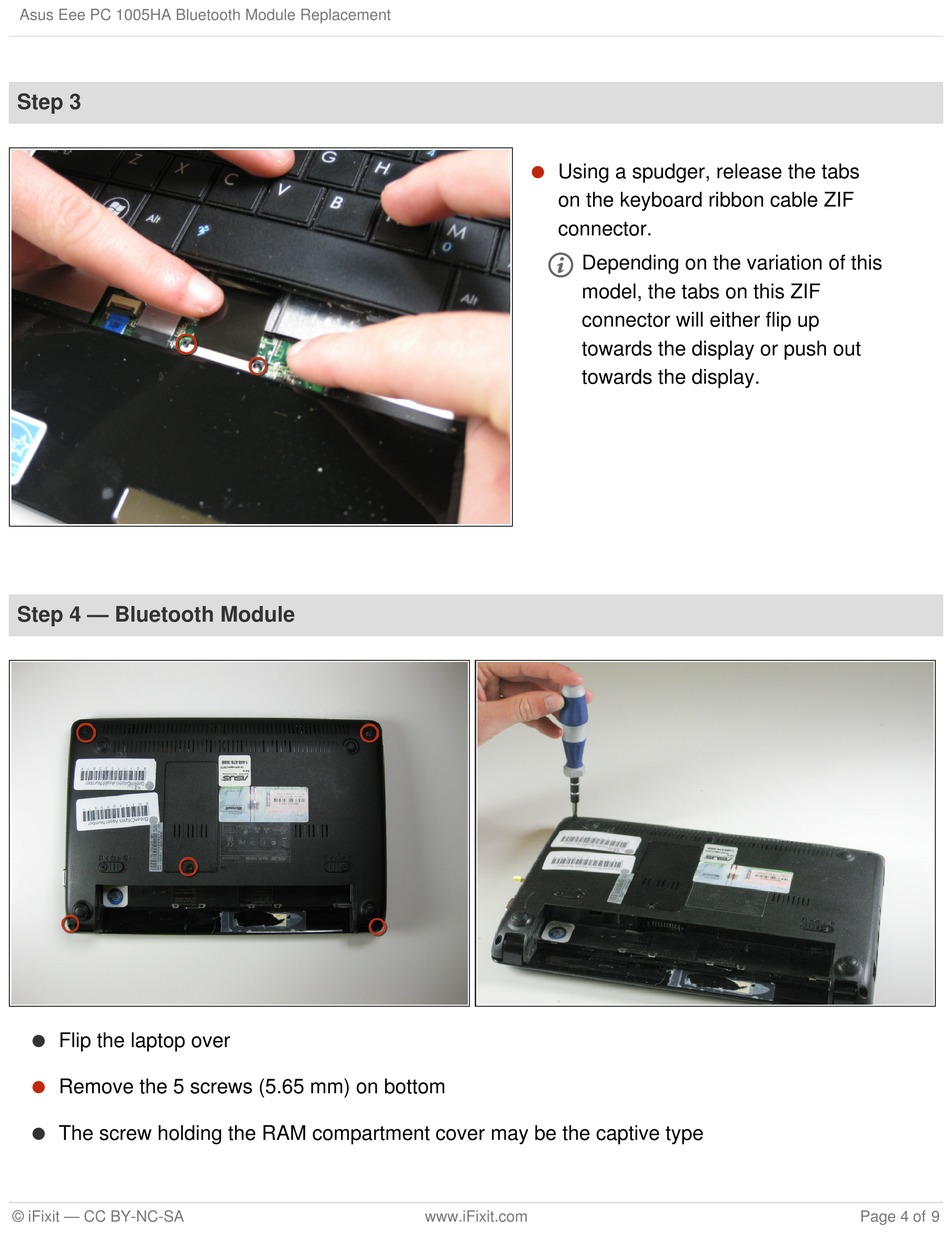

Step 3
Step 4 — Bluetooth Module
Flip the laptop over

Remove the 5 screws (5.65 mm) on bottom

The screw holding the RAM compartment cover may be the captive type

© iFixit — CC BY-NC-SA
Using a spudger, release the tabs

on the keyboard ribbon cable ZIF
connector.
Depending on the variation of this

model, the tabs on this ZIF
connector will either flip up
towards the display or push out
towards the display.
