Asus Eee PC 1005HA Bluetooth Module Replacement

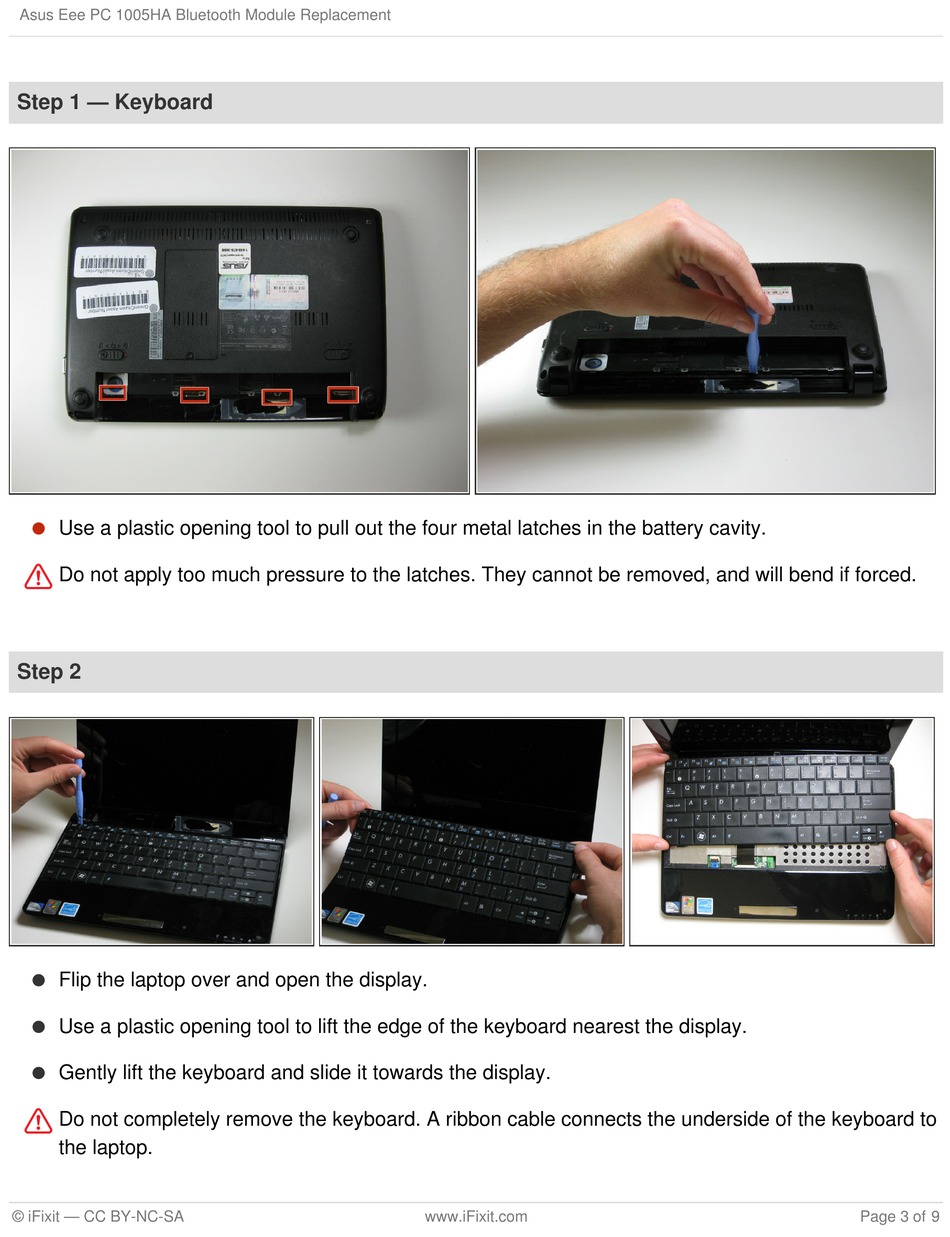

Step 1 — Keyboard
Use a plastic opening tool to pull out the four metal latches in the battery cavity.

Do not apply too much pressure to the latches. They cannot be removed, and will bend if forced.

Step 2
Flip the laptop over and open the display.

Use a plastic opening tool to lift the edge of the keyboard nearest the display.

Gently lift the keyboard and slide it towards the display.

 Do not completely remove the keyboard. A ribbon cable connects the underside of the keyboard to
the laptop.
