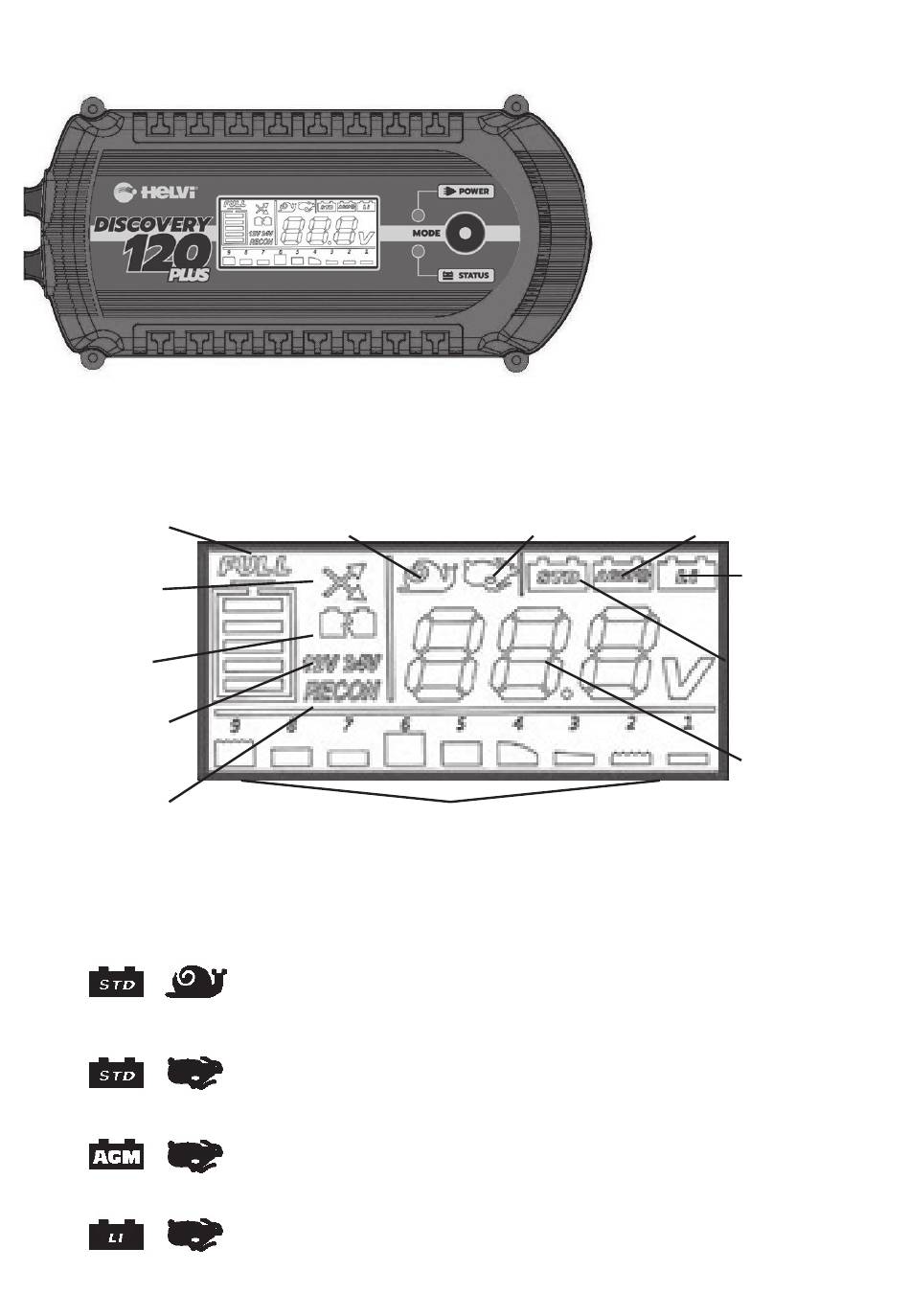

Charger LED display
FIG.2
Charger LCD display
The unit is built-in with LCD display for showing charger status:BUTTON AND MODE
Battery
Level
Reverse
Connection
Fail in
Charging
12/24V
Supply Mode
Recondition
Mode
MODE BUTTON:
The Mode button on unit is used to select the Five different battery charger mode
as below.
1. "12V/STD/SLOW" Mode
2. "12V/STD/FAST" Mode
3. "12V/AGM/DEEP/FAST" Mode
4. "12V/LI/FAST" Mode

OPERATION

Slow Charge
Mode
Charging Stage
Slow charge (Max. 2A Charging Current) with Standard or
GEL lead acid battery
Fast charge (Max. 7.2A Charging Current) with Standard or
GEL lead acid battery.
Fast charge (Max. 7.2A Charging Current) with AGM type
lead acid battery.
Fast charge (Max. 7.2A Charging Current) with Lipo4 battery.
Power LED -
Green color LED to indi-
cate Power is connect to
charger
STATUS LED -
Green color LED to indica-
te that the battery is char-
ging. Red color LED to in-
dicate a charging failure,
battery problem or reverse
polarity.
Fast Charge
Mode
16
AGM
Battery
Lipo4
Battery
GEL / Stan-
dard Battery
Battery
Voltage
Read Out
FIG.3
