INSTALLATION INSTRUCTIONS

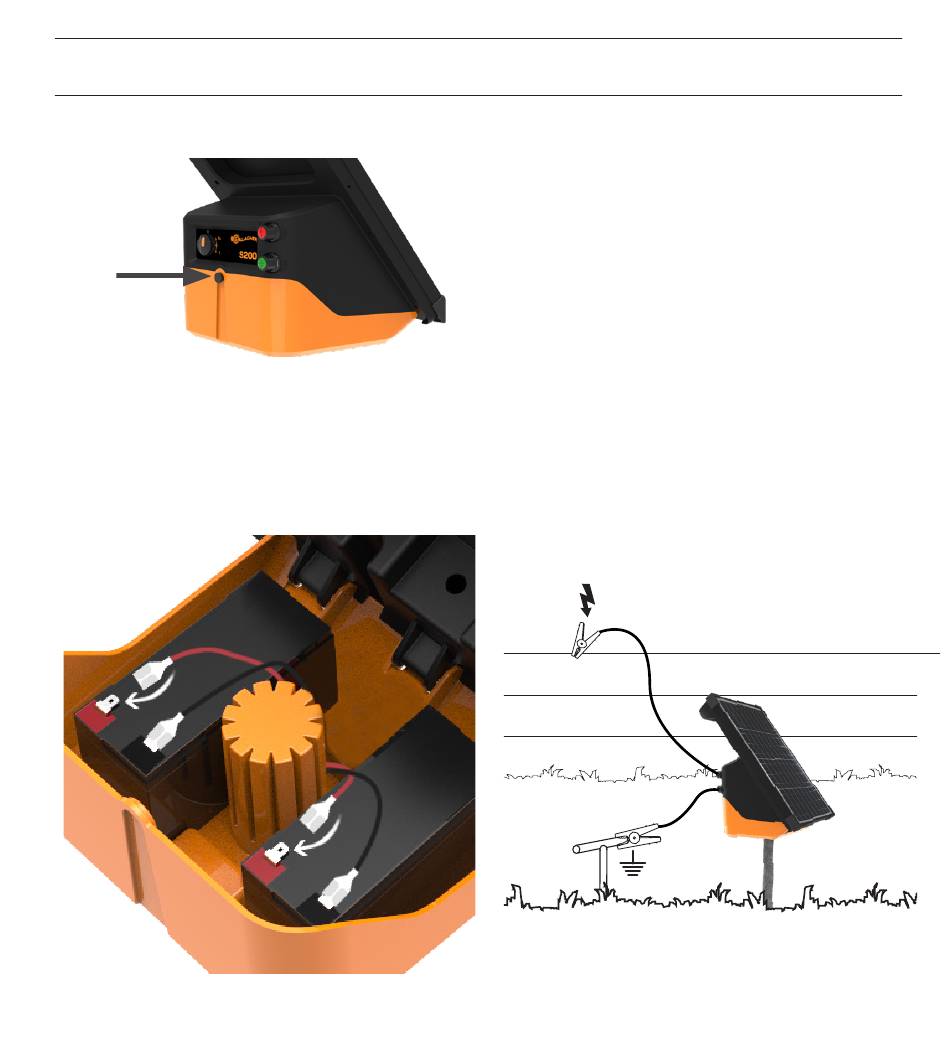

1. Open the energizer
2. Connect the batteries
Note: Before connecting the batteries
ensure the power switch is in the Off
position.
8 8
3E4677 Gallagher S200 Solar Energizer User Manual
3. Close cover and tighten screw
4. Install energizer
The solar panel should face towards
the equator. i.e. in the northern
hemisphere, panel faces south, in the
southern hemisphere, panel faces
north. Avoid placing in a shady area.
5. Connect leads
a)
b)
6. Switch energizer ON
3' Earth Rod
Connect green terminal to earth
stake at least 2 ft (60cm) into
ground.
Connect red terminal to fence
line.
RED
GREEN
