Do not subject the screen to either dazzling sunlight or to ultra-violet radiation.
Please keep the packaging material and use this exclusively to transport the TFT monitor.
Disposal
Packaging
Your device is in packaging for protection against transport damage. Packaging is made from
materials that can be disposed off in an environmentally friendly way and taken to correct recycling.
Device
Do not throw the device into the normal domestic refuse after the end of its useful life under any
circumstances. Obtain information about the possibilities of environmentally friendly and correct
disposal.

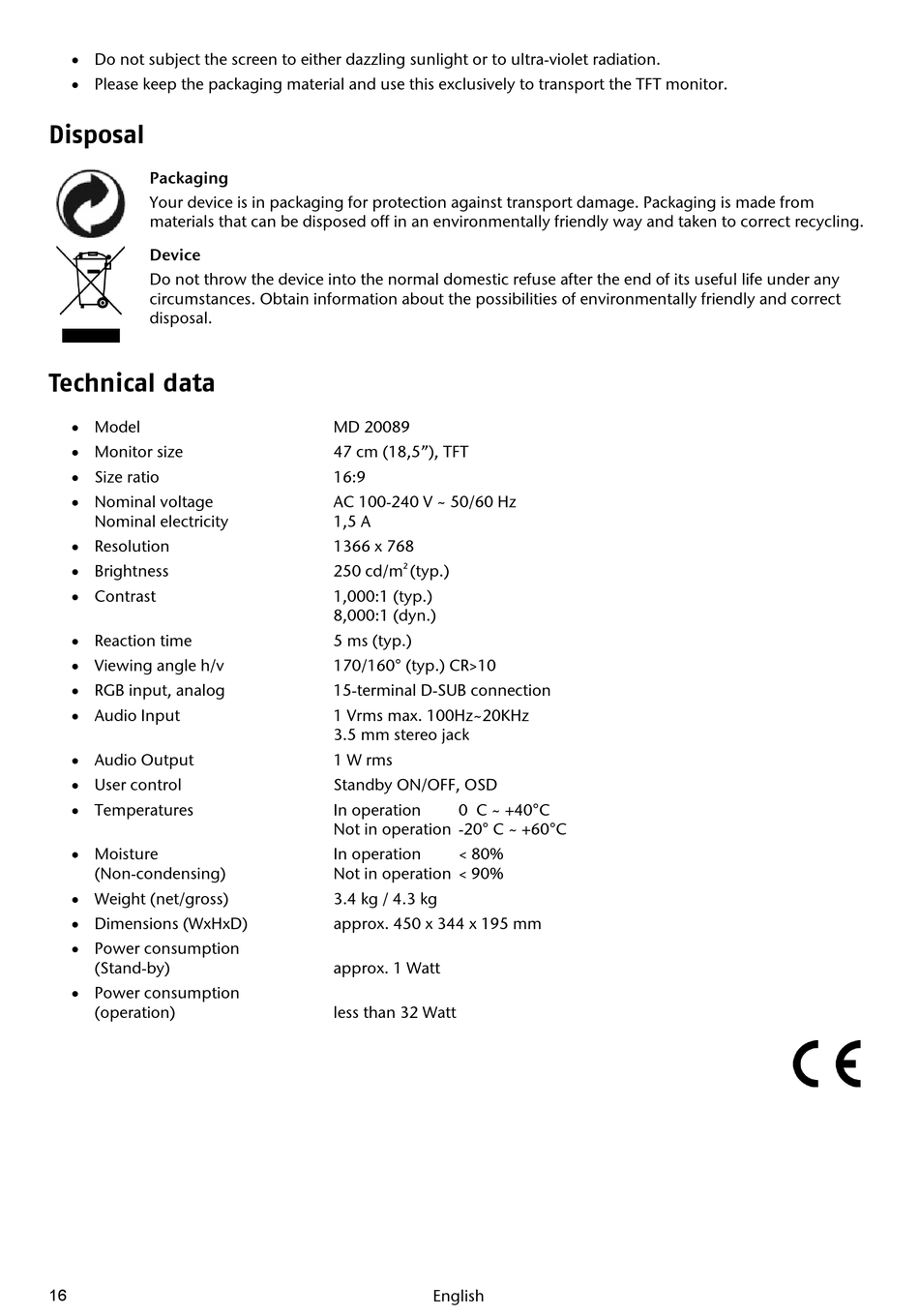

Technical data
Model
Monitor size
Size ratio
Nominal voltage
Nominal electricity
Resolution
Brightness
Contrast
Reaction time
Viewing angle h/v
RGB input, analog
Audio Input
Audio Output
User control
Temperatures
Moisture
(Non-condensing)
Weight (net/gross)
Dimensions (WxHxD)
Power consumption
(Stand-by)
Power consumption
(operation)
16
MD 20089
47 cm (18,5"), TFT
16:9
AC 100-240 V ~ 50/60 Hz
1,5 A
1366 x 768
2
250 cd/m
(typ.)
1,000:1 (typ.)
8,000:1 (dyn.)
5 ms (typ.)
170/160° (typ.) CR>10
15-terminal D-SUB connection
1 Vrms max. 100Hz~20KHz
3.5 mm stereo jack
1 W rms
Standby ON/OFF, OSD
In operation
0 C ~ +40°C
Not in operation -20° C ~ +60°C
In operation
< 80%
Not in operation < 90%
3.4 kg / 4.3 kg
approx. 450 x 344 x 195 mm
approx. 1 Watt
less than 32 Watt
English
