Santon DFS-14 Installationshandbuch Seite 7

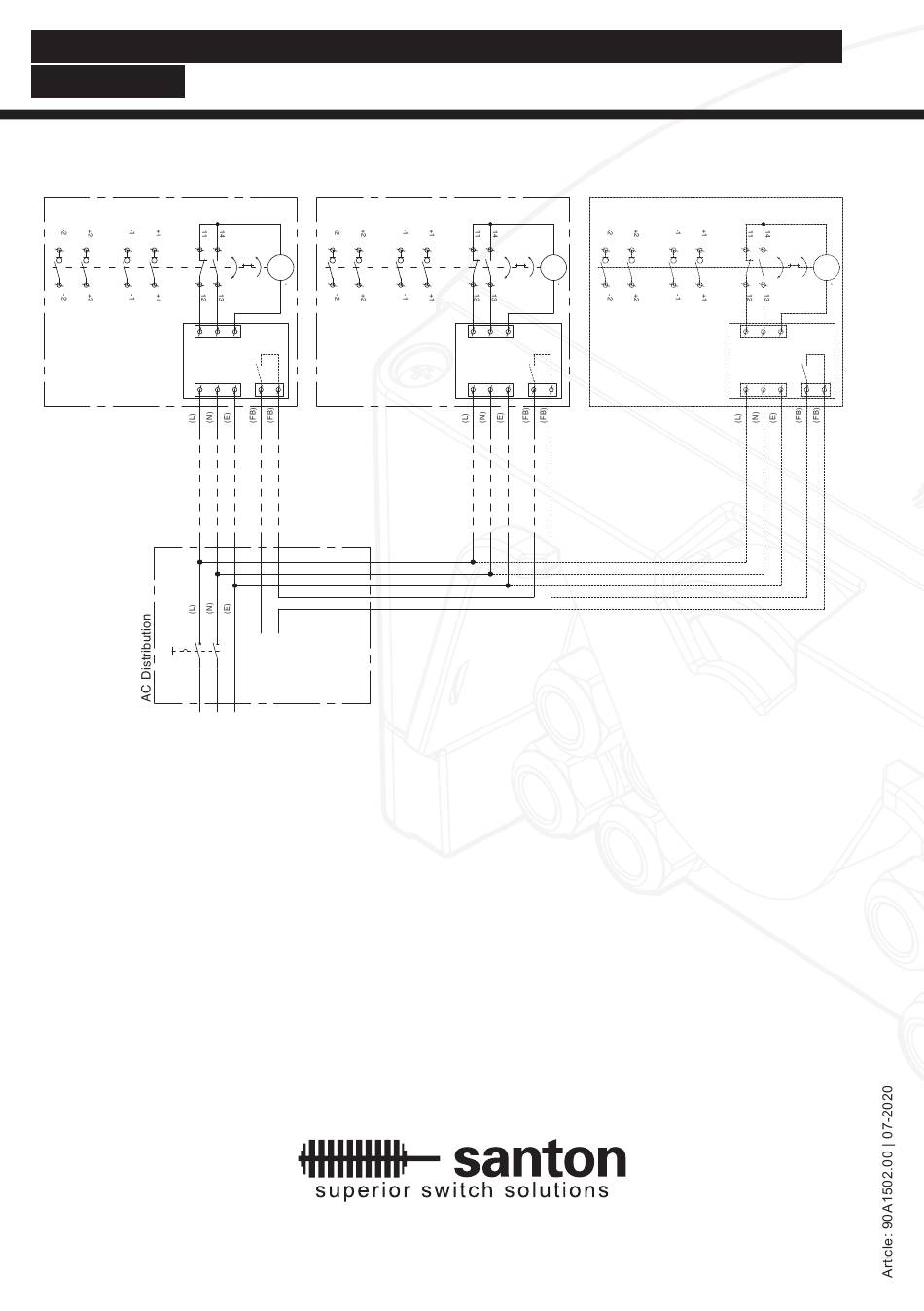

WIRING / VERDRAHTUNG / CÂBLAGE / ALAMBRADO / CABLAGGIO /
BEDRADING
DFS-14 / DFS-14-W
DFS-14-MC4 / DFSHP-14-MC4
X2
UPS
1
(A)
X1
(B)
AC -Grid
info@santonswitchgear.com, www.santonswitchgear.com, NEN-EN-ISO 9001:2015
DFS-14 / DFS-14-W
DFS-14-MC4 / DFSHP-14-MC4
+
M
2 3 1 2
(A)
X3
(C)
Note(s):
(A) The DFS-14, DFS-14-W, DFS-14-MC4 and DFSHP-14-MC4 is for 2 strings.
(B) The AC distribution panel/power box can be fitted with a switch off device.
(C) The DFS is equipped with a NO contact which can be connected in series
© copyrights Santon International bv
+
M
X2
UPS
1 2 3 1 2
X1 X3
The switch off device is not included with the DFS.
with all DFS's in an installation to create a feedback loop for signaling purposes.
