6.2 Rear

1 2
7
9
10

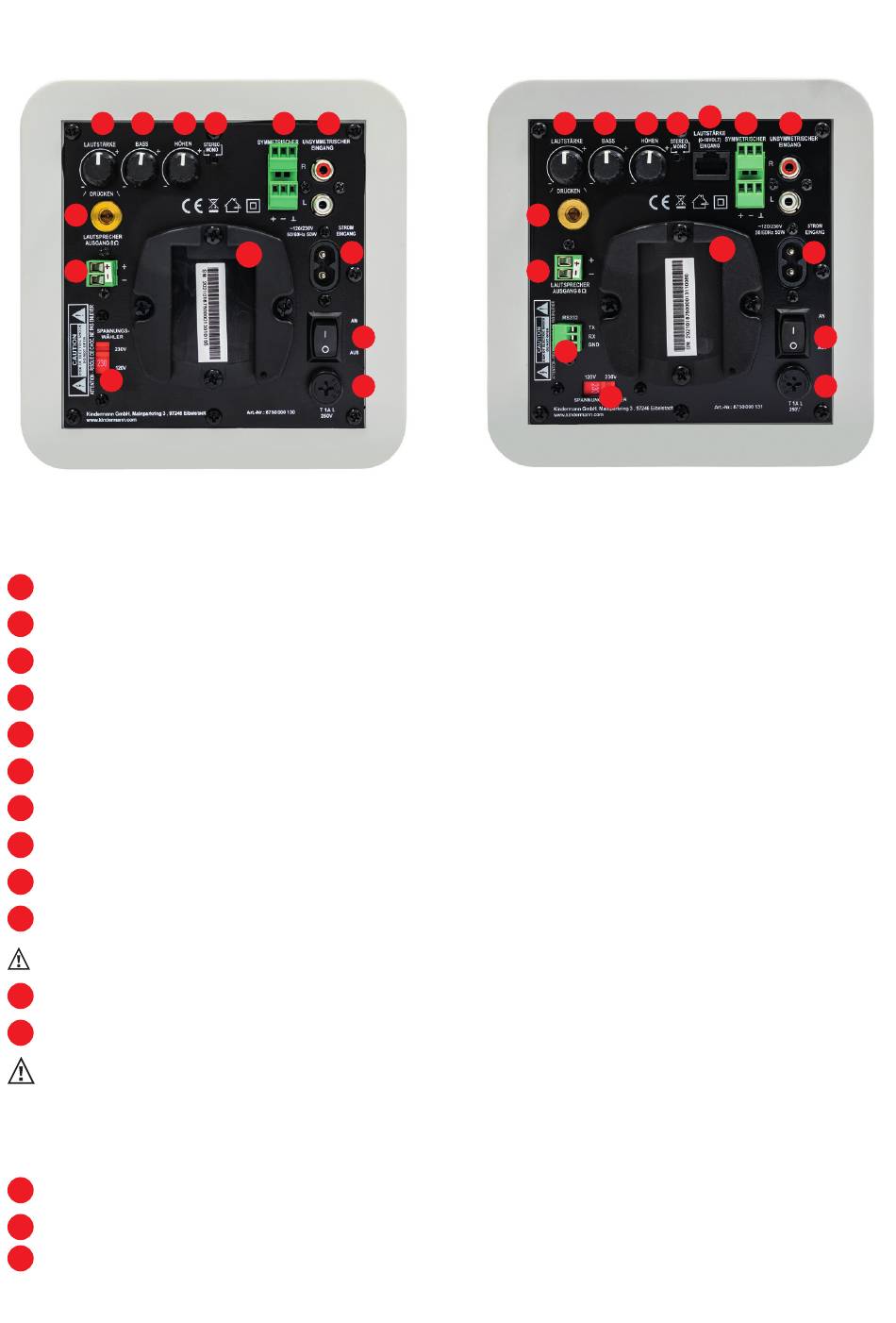

Aktivbox Set² 50+
Ref. No. 8750000130
Volume
1
Low control (bass)
2
Treble control (high)
3
Stereo/mono switch
4
Balanced stereo input Euroblock
5
Stereo RCA input
6
7 Fixing point of the safety cable
8 Power supply socket
9 Amplified output
10 Voltage selector 115V / 230V
Note: Incorrect voltage selection may cause damage to the product!
11 Power switch
12 Fuse holder
Attention: In order to protect the system from possible electrical overloads, a mains fuse is built-in. If the fuse
melts, the active box will no longer work and you have to replace the fuse. To do so, turn off the device, remove it from
the wall mount and remove the power cord! Turn out the fuse holder, remove the fuse and replace it with an equivalent
one. If the new fuse melts again immediately after powering the speaker, please contact customer service immediately.
Remote control input (0-10VDC – RJ45 port), (only Kindermann Aktivbox² Set50+ WBT)
13
RS232 (only Kindermann Aktivbox² Set50+ WBT)
14
15 Mounting flange for the wall bracket
