9 Electrical connection
Attention danger to life!
Incorrect assembly and incorrect electrical connection can be life-threatening.
Electricity hazards must be ruled out.
• Assembly and electrical connection may only be performed by qualified personnel
and in accordance with the applicable regulations (e.g. IEC, VDE, etc.)!
• The type of current and voltage must comply with the data on the rating plate.
• Comply with the regulations of the local power supply company!
• Comply with the accident prevention regulations!
• Never pull on the power cord.
• Do not bend the cord.
• Do not place any objects on the cord.
• When the pump is used in systems with temperatures above 90°C,
a connection cable that is suitably resistant to high temperature must be used.
• There is a risk of sharp and jagged edges during assembly.
• Never transport by holding the power cord.
• There is a risk of injury from dropping the pump.
9.1

Assembly of mains plug

1
34
2
3
4

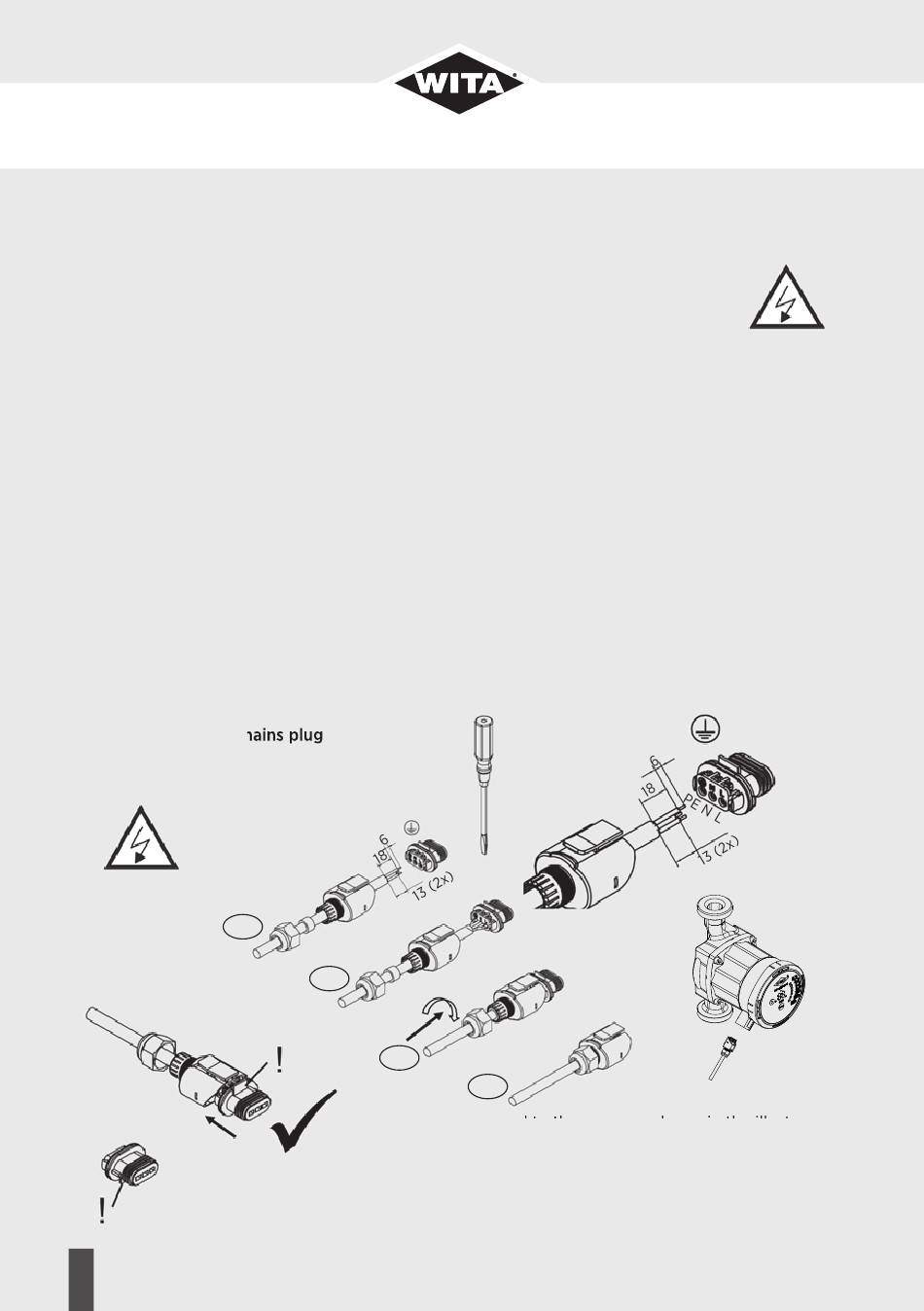

Connect the power cord to the pump as shown in the illustra-
tion. Caution mains voltage! The necessary protective measu-
res, VDE regulations and local regulations must be observed.
The crosssection of the cable must not be less than 0.75 mm
When using cables with thin wires, insulating ends should be
used.
Pluging
2 .
