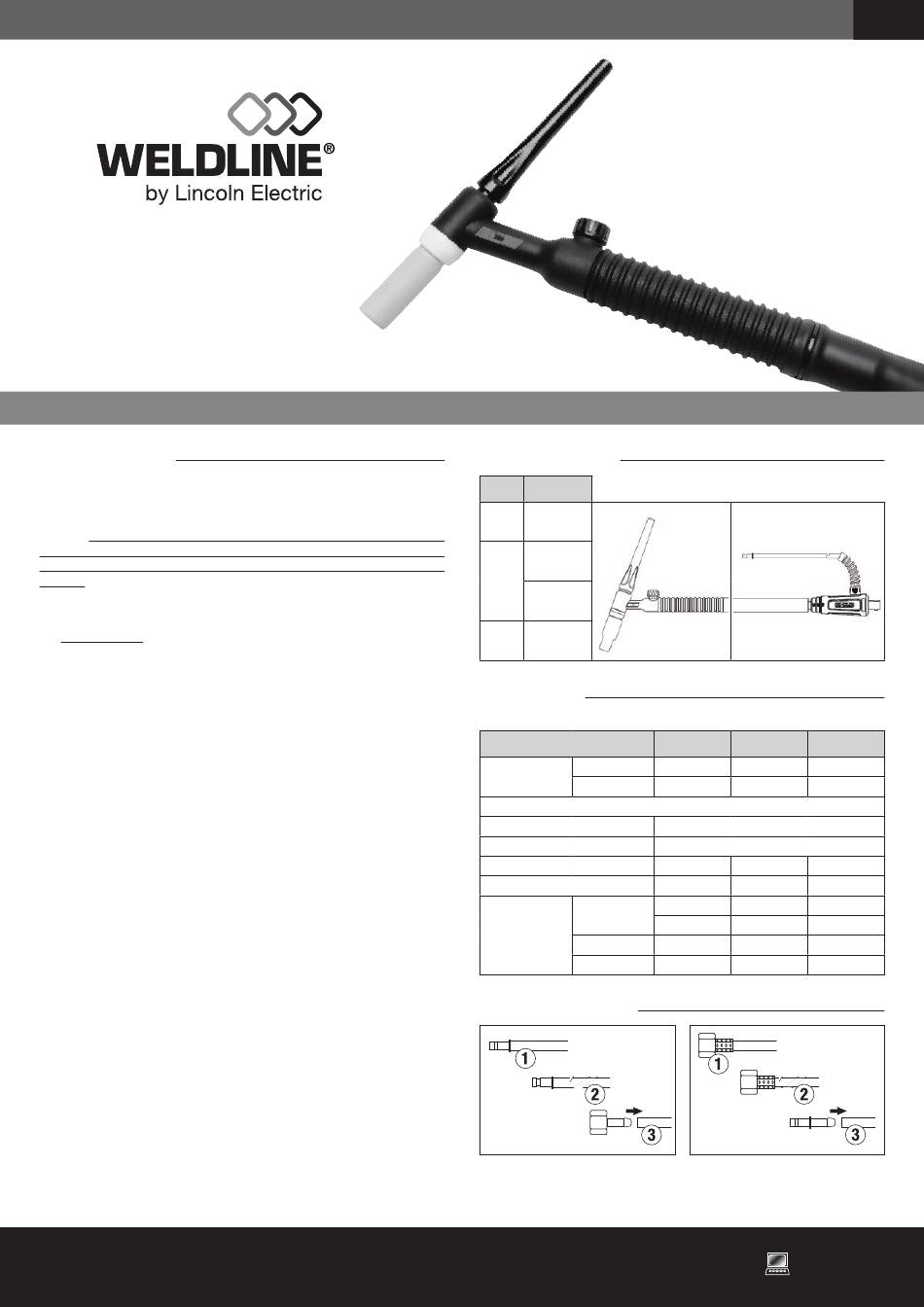

Instructions for safety, use and maintenance
Safety instructions
We thank you for your trust in our company by purchasing this equipment which will
provide you with complete satisfaction if you comply with its conditions for use and
maintenance.
CAUTION: The company declines all responsibility in case of modification, addition of
components or subassemblies, or any transformation of the equipment carried out
by the customer or a thirdparty, without prior specific written agreement from the
company.
Arc welding and plasma cutting may be dangerous for the operator and persons close
to the work area. Read the operating manual and safety instructions W000261712.
See www.weldline.eu.
A) Maintenance / Troubleshooting
Before any internal verifications and repair work, make sure that the equipment is
separated from the electric installation by electrical isolation (by electrical isolation is
meant a group of operations designed to separate and keep the equipment de-energized).
At least every six months, you must check the proper condition of the insulation and
connections of the electric equipment and accessories such as plugs, flexible wires,
ducts, connectors, extension leads, partholders, electrode-holders, or torches...
Maintenance and repair work on the jackets and insulating ducts must be carried out
extremely carefully.
Have defective parts repaired by a specialist, or better still, have them replaced.
Routinely check the proper tightening and cleanliness of the electric connections.
B) Work-station
Use only electrode holders and torches which are perfectly insulated.
The operator must be insulated from the ground-surface and the workpiece (gloves,
safety shoes, dry clothes, leather apron, and so forth...).
Do not touch the electrode wire and the part (or the nozzle) simultaneously.
C) Protection
It is absolutely essential that your protect your eyes from blinding glare (glare of arc
invisible light and infrared and ultraviolet radiation).
The welding mask, without or with helmet, must always be equipped with a protective
filter whose gradation depends on the welding arc current intensity (EN 169 Standard).
Fumes emitted during welding operations may be dangerous. Use adequate protection
means (fumes extraction, ventiled masks...)
LINCOLN ELECTRIC IBERIA S.L.
Ctra. Laureà Miró 396-398,
08980 Sant Feliu de Llobregat (Barcelona) - SPAIN
®
The Standard Range
WTT2
9V
17V
26V
Technical data
TIG manual torch with natural cooling
WTT2
Curent
Light alloy welding, reduce the duty cycle about 30%
Voltage class
Gas flow
Power connection
Using electrodes
Origin
equipment fitted
to the torch
Gas connector change
4 m
W000278876
Connector 9 mm
W000278880
Connector 9 mm
W10529-17-4V
Connector 13 mm
W000278885
V
Connector 13 mm
9V
Duty cycle 35% 110 A
Duty cycle 60% 80 A
25 mm
Ø 1.0 / 3.2 mm
Long
Back Cap
Long
Nozzle Ø 10 mm
Electrode Ø 1.6 L
EN
S
17V 26V
135 A 180 A
100 A 130 A
L - 113 V
Mini : 7 l/mn - Maxi : 13 l/mn
25 mm 50 mm
2 2 2
Ø 1.0 / 3.2 mm Ø 1.0 / 4.0 mm
Long Long
Long Long
Ø 10 mm Ø 12 mm
Ø 2.0 L Ø 2.4 L
