Emergency shut-off switch

The stacker truck is equipped with an emergency
shut-off feature (no. 2 in Figure 8 Emergency shut-
off and steering) which will immediately disconnect
the battery from the stacker truck. It can be
activated by pressing it in order to disconnect the
entire energy supply in the following cases:

Accident

Stacker truck shut-off

Emergency situation, risk of accident

Welding work

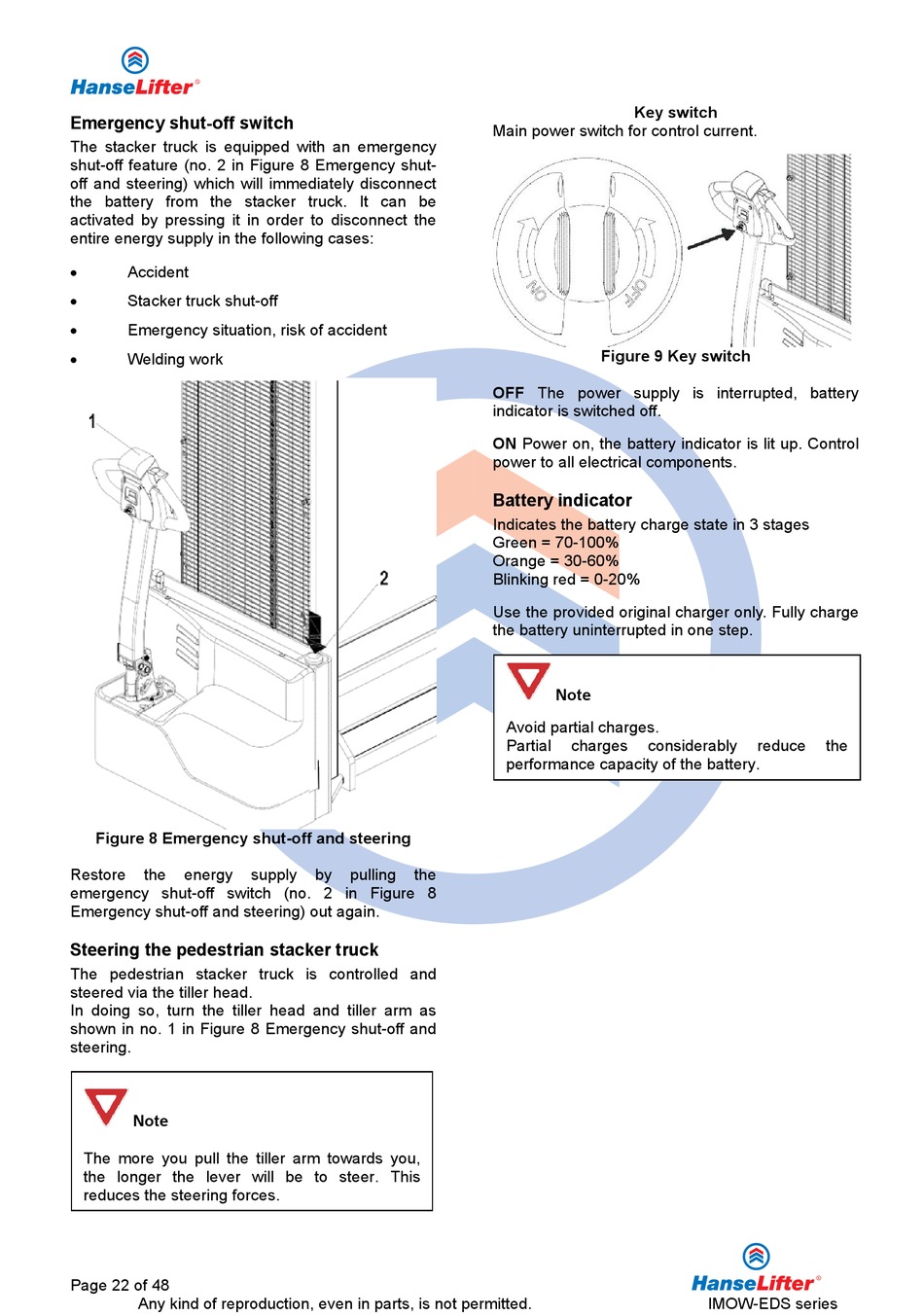

Figure 8 Emergency shut-off and steering

Restore the energy
emergency shut-off switch (no. 2 in Figure 8
Emergency shut-off and steering) out again.

Steering the pedestrian stacker truck

The pedestrian stacker truck is controlled and
steered via the tiller head.
In doing so, turn the tiller head and tiller arm as
shown in no. 1 in Figure 8 Emergency shut-off and
steering.
Note
The more you pull the tiller arm towards you,
the longer the lever will be to steer. This
reduces the steering forces.
Page 22 of 48
Any kind of reproduction, even in parts, is not permitted.
supply by pulling the
Key switch
Main power switch for control current.

Figure 9 Key switch

OFF The power supply is interrupted, battery
indicator is switched off.
ON Power on, the battery indicator is lit up. Control
power to all electrical components.

Battery indicator

Indicates the battery charge state in 3 stages
Green = 70-100%
Orange = 30-60%
Blinking red = 0-20%
Use the provided original charger only. Fully charge
the battery uninterrupted in one step.
Note
Avoid partial charges.
Partial charges considerably
performance capacity of the battery.
reduce the
