CV Firebox Inserts
Installation

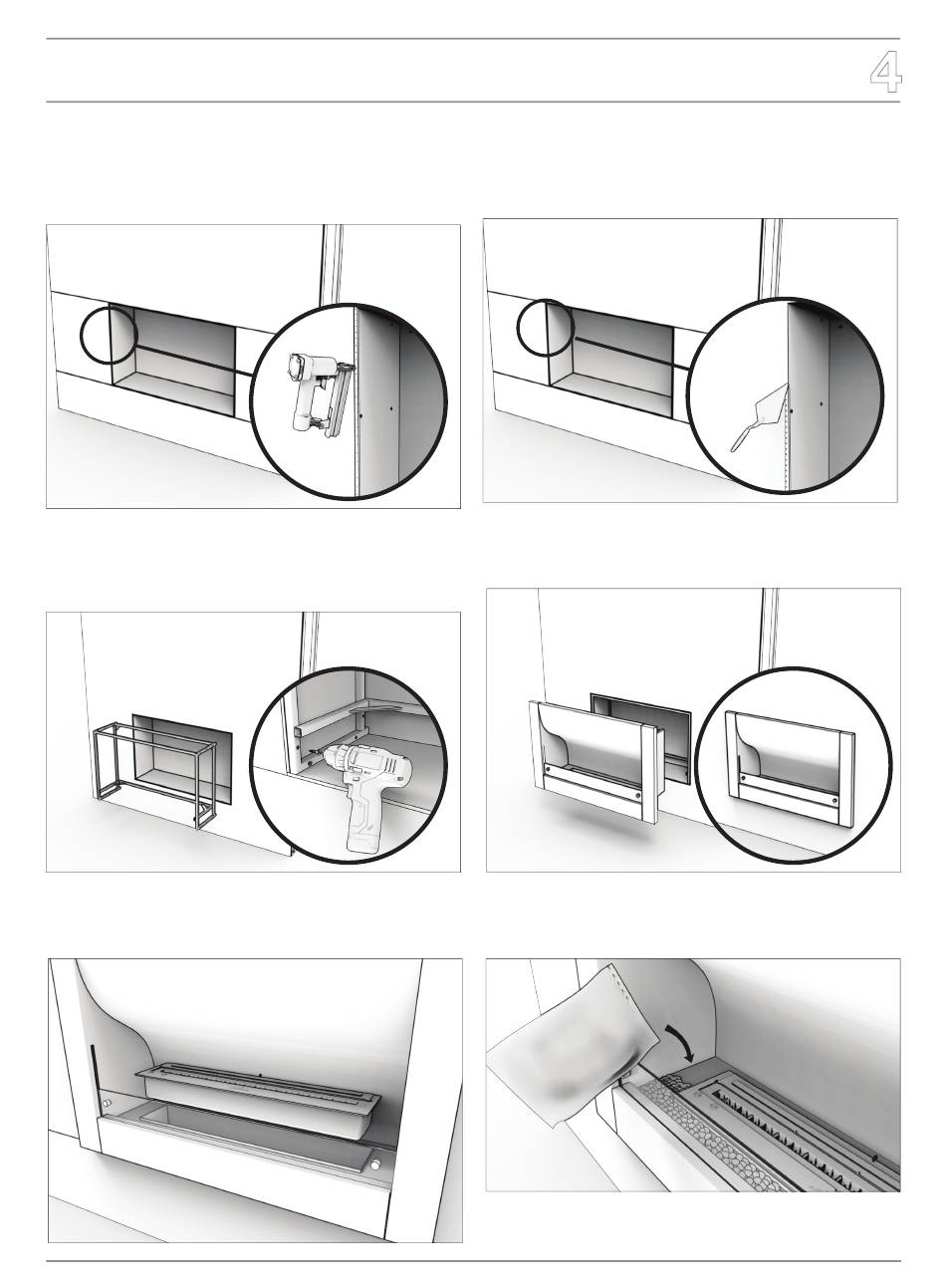

6. apply surrounding gyprock/dry wall panels. fix steel
end beads on all 4 edges (mitre the corners).
8. insert the mounting frame into the cavity. ensure the frame is
flush with the wall edge or the firebox will not sit flush. Secure the
mounting frame. ensure screws are engaging the timber frames
behind the fire-retardant panels.
10. ensure the glass screen is at the lowest position. Place the burner
into firebox tray. WARNING: Glass screen is fragile, careful not to
clip the screen during burner insertion or glass will shatter.
All manuals and user guides at all-guides.com
7. Plaster all seams and beads and paint to create the
9. Push the firebox into the cavity. Push until the magnets engage
11. Evenly spread decorative pebbles around the firebox base.
oPeRAte ACCoRdING to tHe bURNeR oPeRAtIoNS
MANUAl INClUded WItH tHe bURNeR.
finished wall appearance.
with the mounting frame.
Position glass screen back up to its full height. always operate
with the glass screen in full upright position.
© Copyright 2004 - 2019 MAD Design Group. All rights reserved. V0719
