CV Firebox Inserts
Installation
Equipment required:
Power Drill, Screw Driver, Hand Trowel for Plaster, Silicone Gun, Caulk Gun

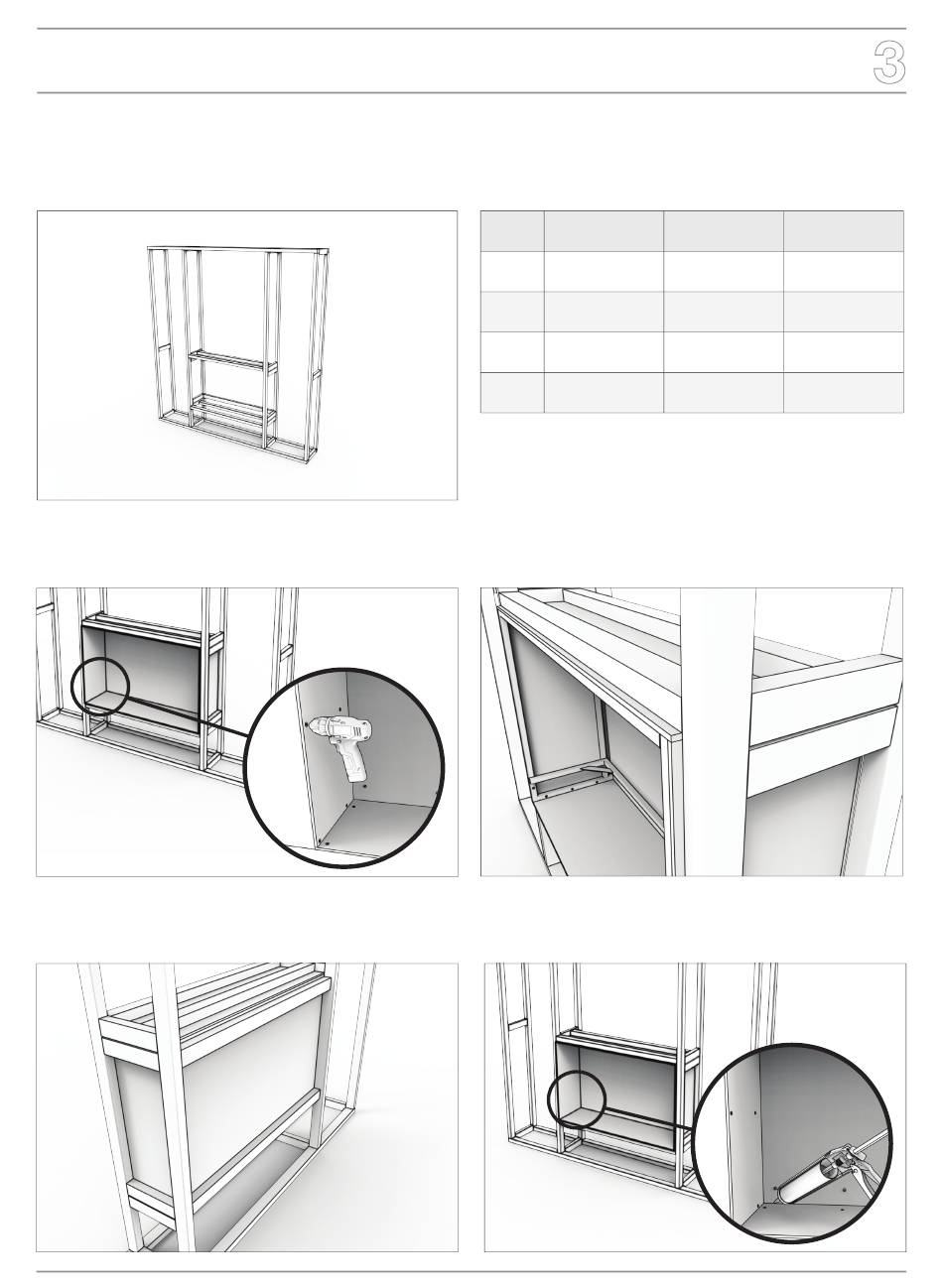

1. construct main wall framework leaving an opening as dimensioned in
table a.
2. Create an insulated cavity using 8mm [0.3in] fire
retardant cement boards fixed to the framework.
4. Add extra framing to secure fire-retardant sheeting.
www.ecosmartfire.com
All manuals and user guides at all-guides.com
table A: Framing dimensions
Physical model dimensions and thickness of cement boards should be verified against cut
out dimensions BEFORE installation begins to confirm tolerances align.
Model
650CV
720CV
920CV
1100CV
3. Ensure the cavity frame is offset from the timber frame. The offset
5. silicone all internal edges to make the cavity watertight.
W
mm [in]
712
[28]
782
[30.8]
982
[38.7]
1168
[46]
distance must be the same as the wall panel (gyprock/dry wall thickness).
d
H
mm [in]
mm [in]
278
506
[10.9]
[19.9]
318
669
[12.5]
[26.3]
318
669
[12.5]
[26.3]
331
746
[13]
[29.4]
