Product Description - SOMFY SITUO 1 VARIATION Kurzanleitung

Depending on the remote control you have chosen, it will be equipped either with the io protocol, or with the RTS
protocol.
It is used to control the following appliances individually or simultaneously (an unlimited number of devices may
be controlled via a single channel):
• roller shutter drives,
• swing shutter drives,
• blind drives,
• venetian blind drives,
• standard or variation lighting receivers.
Up / On /
Open button
Variator
Down / Off /
Close button
Up / On /
Open button
Variator
Down / Off /
Close button
Button press
indicator
light
For 5-channel remote controls
Each channel corresponds to an individual remote control, and can be used to control one or more devices.
The channel selector button is used to navigate between channels.
The indicator lights indicate the selected channel (see illustration opposite).

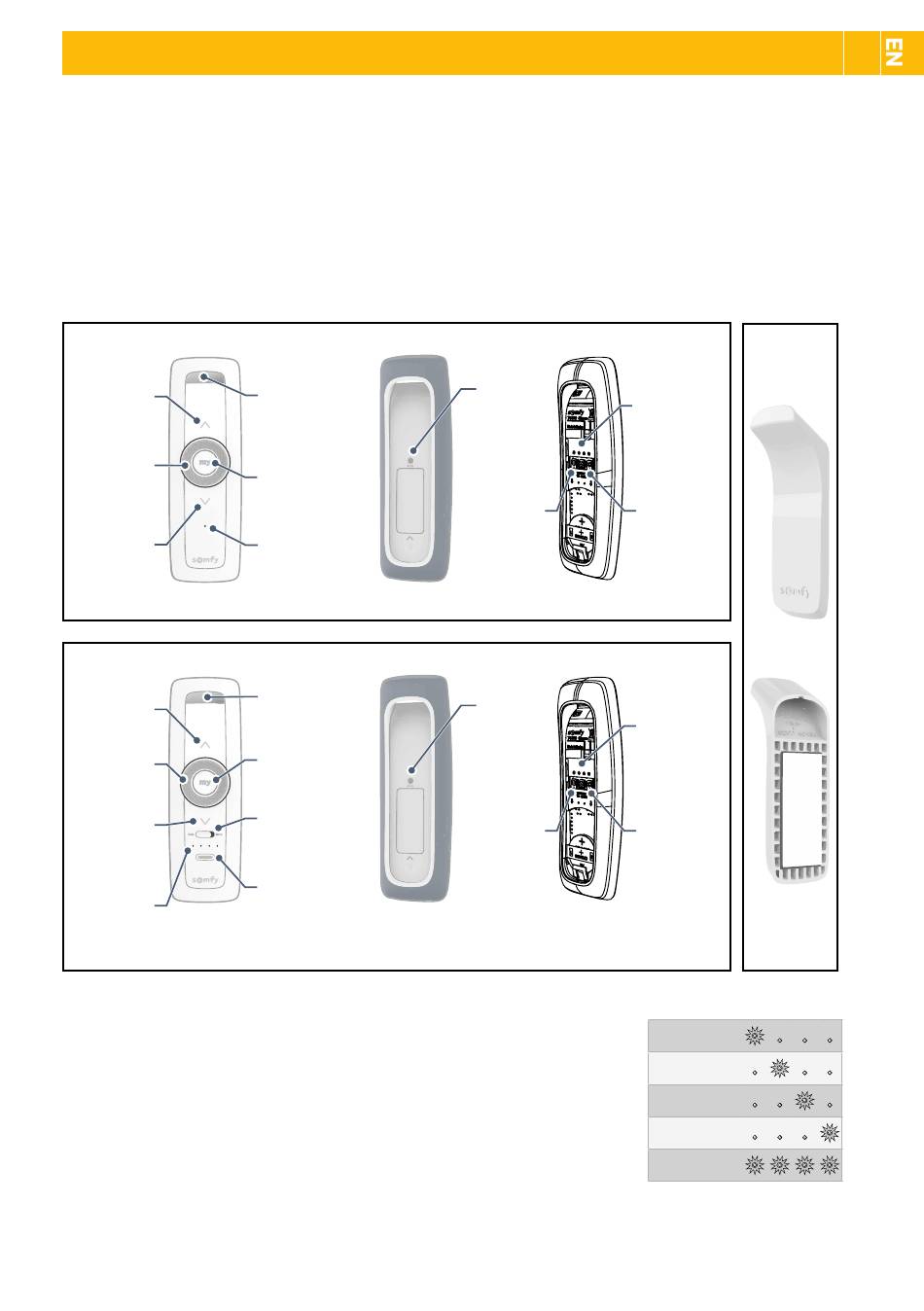

EN - Installation and operating manual 1-channel - 5-channel variation remote controls - SOMFY
Variation Situo 1
Wall bracket
recess
STOP / my
button
Button press
indicator light
1-channel remote control
Variation Situo 5
Wall bracket
recess
STOP / my button
Auto/man. mode
selector*
Group selector
5-channel remote control

PRODUCT DESCRIPTION

PROG
button
Specific
autonomous
mode
selector
(button A)*
* Only on io version
PROG
button
Specific
autonomous
mode
selector
(button A)*
* Only on io version
Wall
mount
Indicator
lights 1, 2, 3,
4 (operating
modes)*
Operating
mode
selector
(button E)*
Indicator
lights 1, 2, 3,
4 (operating
modes)*
Operating
mode
selector
(button E)*
Channel 1:
Channel 2:
Channel 3:
Channel 4:
Channel 5:
1
3
