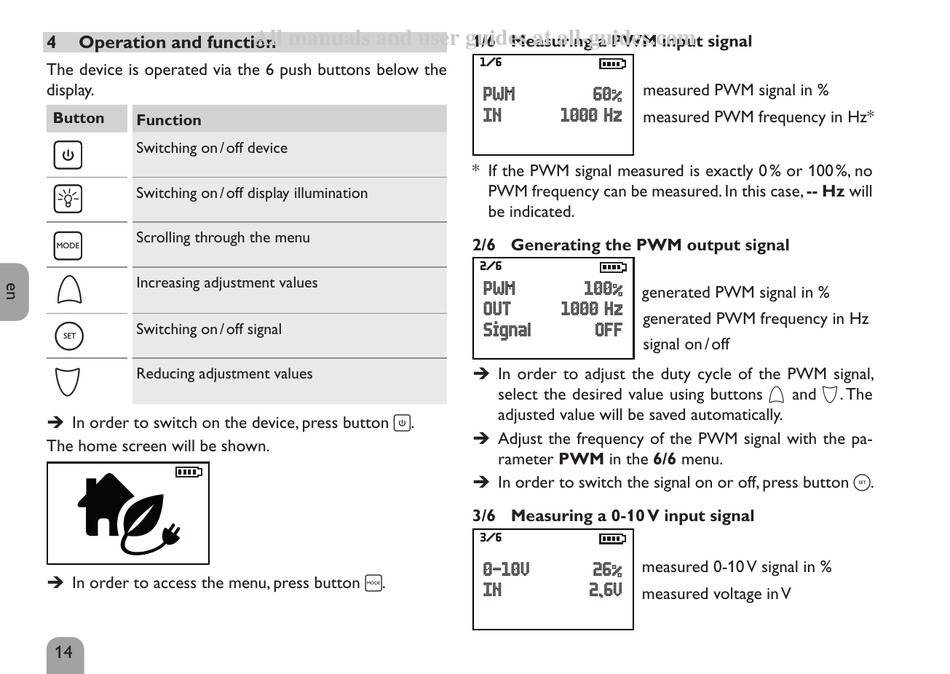

Operation and function

The device is operated via the 6 push buttons below the
display.
Button
Function
Switching on / off device
Switching on / off display illumination
Scrolling through the menu
Increasing adjustment values
Switching on / off signal
Reducing adjustment values
Î In order to switch on the device, press button ⚭.
The home screen will be shown.
Î In order to access the menu, press button ☰.
14
All manuals and user guides at all-guides.com
1/6 Measuring a PWM input signal
1/6
measured PWM signal in %
PWM 60%
IN 1000 Hz
measured PWM frequency in Hz*
* If the PWM signal measured is exactly 0 % or 100 %, no
PWM frequency can be measured. In this case, -- Hz will
be indicated.
2/6 Generating the PWM output signal
2/6
PWM 100%
generated PWM signal in %
OUT 1000 Hz
generated PWM frequency in Hz
Signal OFF
signal on / off
Î In order to adjust the duty cycle of the PWM signal,
select the desired value using buttons ♉ and ♊. The
adjusted value will be saved automatically.
Î Adjust the frequency of the PWM signal with the pa-
rameter PWM in the 6/6 menu.
Î In order to switch the signal on or off, press button ♟.
3/6 Measuring a 0-10 V input signal
3/6
measured 0-10 V signal in %
0-10V 26%
IN 2,6V
measured voltage in V
