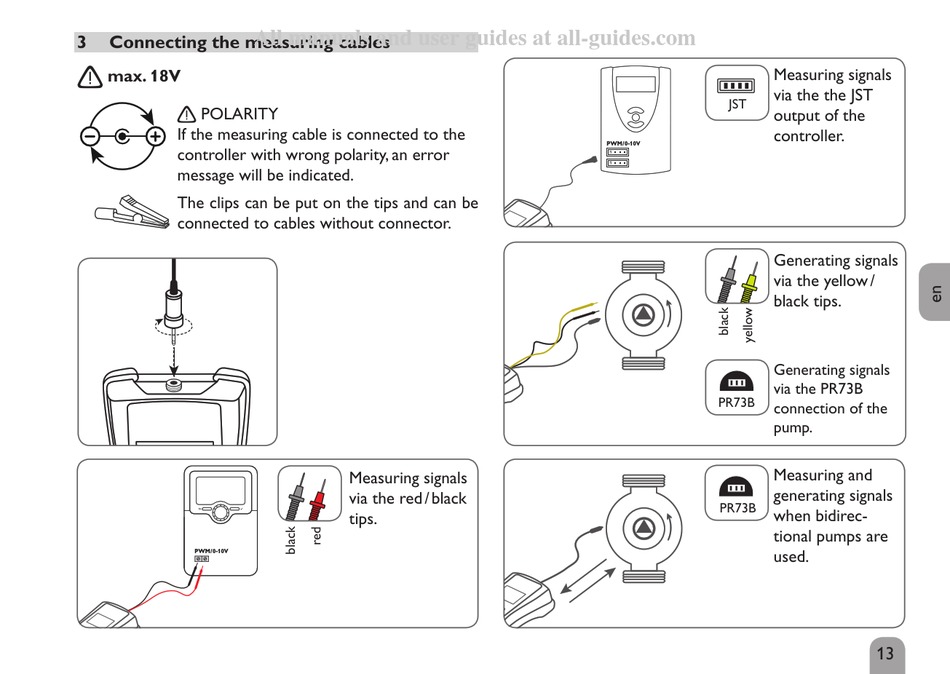

Connecting the measuring cables

⚠ max. 18V
⚠ POLARITY
If the measuring cable is connected to the
controller with wrong polarity, an error
message will be indicated.
The clips can be put on the tips and can be
connected to cables without connector.
PWM / 0-10V
Measuring signals
via the red / black
tips.
Measuring signals
via the the JST
JST
output of the
controller.
PWM / 0-10V
Generating signals
via the yellow /
black tips.
Generating signals
via the PR73B
PR73B
connection of the
pump.
Measuring and
generating signals
PR73B
when bidirec-
tional pumps are
used.
