P131
Operating instructions pressure transmitter

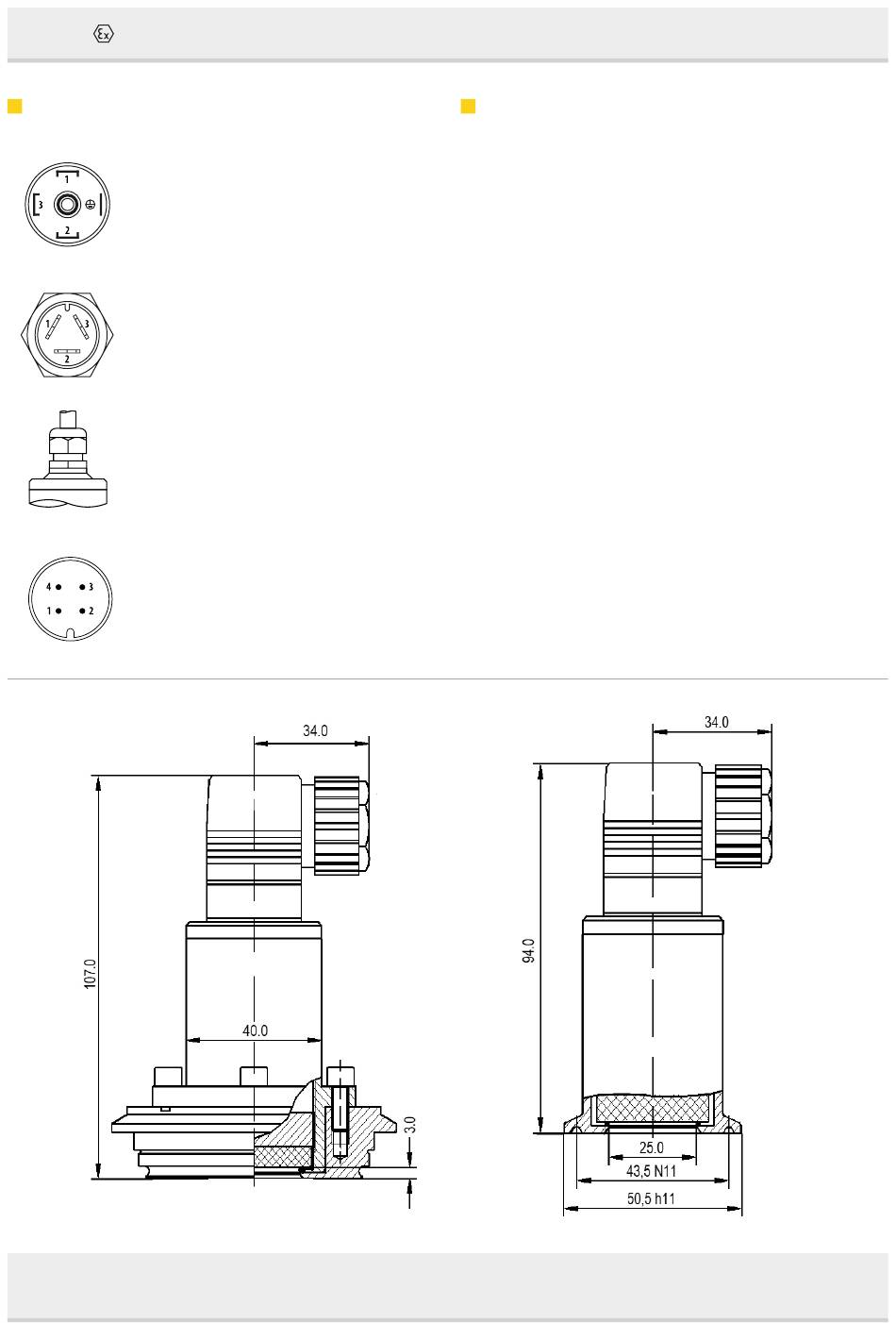

ELECTRICAL CONNECTION
EN 175301-803A
4...20 mA
pin 1: +
pin 2: –
U = 12...30V DC
Quickon-connector
4...20 mA
pin 1: +
pin 2: –
U = 12...30V DC
cable
4...20 mA
red: +
black: –
U = 12...30V DC
M12 connector
4...20 mA
pin 1: +
pin 3: –
U = 12...30V DC
Nöding Messtechnik GmbH • Oldenfelder Bogen 29 • D-22143 Hamburg, Germany • Tel.: +49 40 67 58 51 – 0
Fax: +49 40 67 58 51 – 49 • Internet: www.noeding-messtechnik.de • E-mail: info@noeding-messtechnik.de
TECHNICAL DATA
Range:
0...40 mbar to 0...40 bar
Output:
4...20 mA, 2-wire
Accuracy:
≤ ± 0,2% FS ≥ 100mbar@ 25°C
power supply:
1 2...30V
Ambient temp.:
see „ operating conditions"
storage temperature: -40...85 °C
Temperature coeff.:
≤ ± 0,015% FS/K (zero)
≤ ± 0,01% FS/K (span)
Long term stability:
≤ ± 0,15% FS p. a.
Process connection: stainless steel 1.4404
Housing:
stainless steel 1.4404
Sensor:
ceramic AL
Electr. connection:
see ordering code
Protection class:
see ordering code
