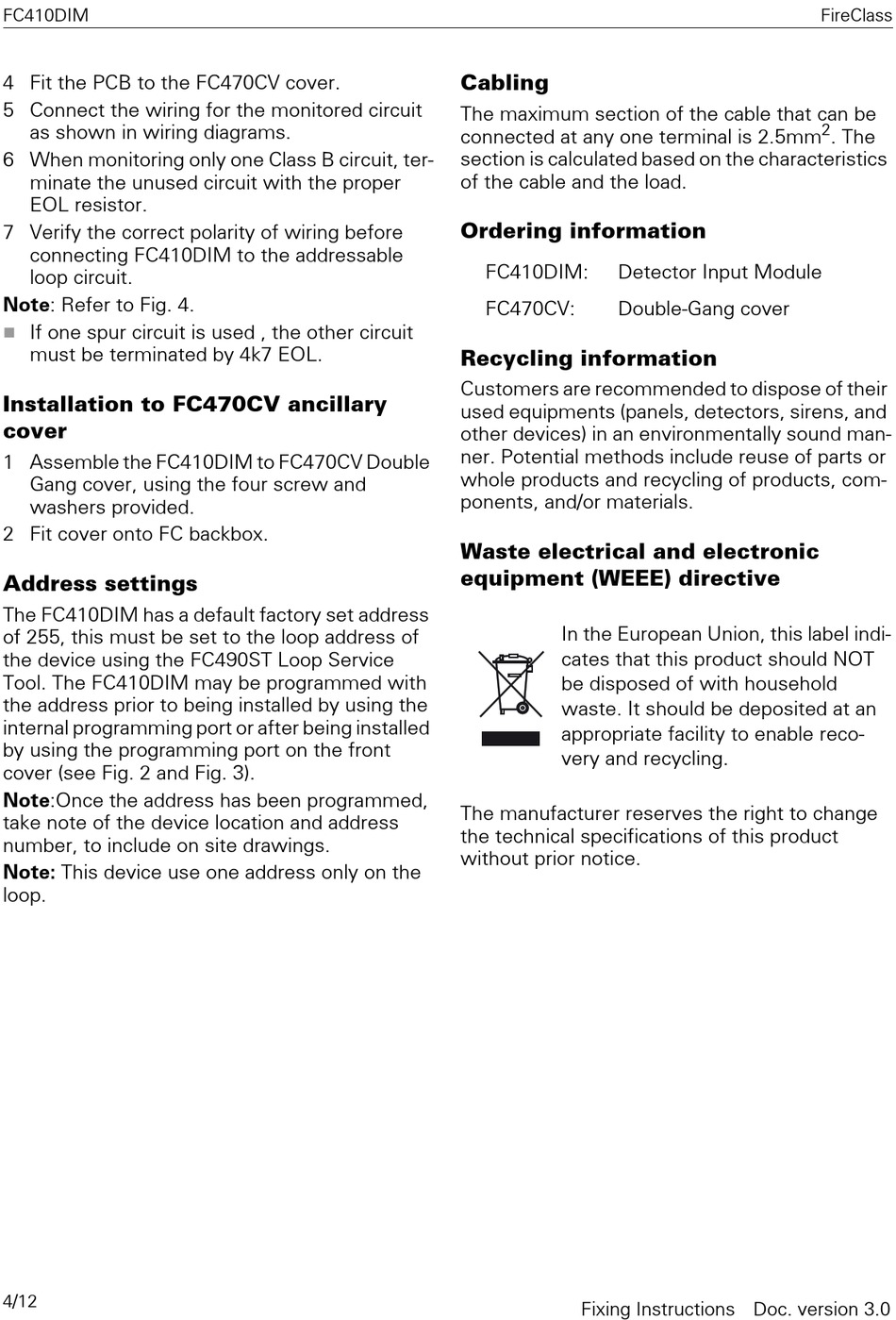

FC410DIM
4 Fit the PCB to the FC470CV cover.
5 Connect the wiring for the monitored circuit
as shown in wiring diagrams.
6 When monitoring only one Class B circuit, ter-
minate the unused circuit with the proper
EOL resistor.
7 Verify the correct polarity of wiring before
connecting FC410DIM to the addressable
loop circuit.
Note: Refer to Fig. 4.
If one spur circuit is used , the other circuit
must be terminated by 4k7 EOL.
Installation to FC470CV ancillary
cover
1 Assemble the FC410DIM to FC470CV Double
Gang cover, using the four screw and
washers provided.
2 Fit cover onto FC backbox.
Address settings
The FC410DIM has a default factory set address
of 255, this must be set to the loop address of
the device using the FC490ST Loop Service
Tool. The FC410DIM may be programmed with
the address prior to being installed by using the
internal programming port or after being installed
by using the programming port on the front
cover (see Fig. 2 and Fig. 3).
Note:Once the address has been programmed,
take note of the device location and address
number, to include on site drawings.
Note: This device use one address only on the
loop.
4/12
Cabling
The maximum section of the cable that can be
connected at any one terminal is 2.5mm
section is calculated based on the characteristics
of the cable and the load.
Ordering information
FC410DIM:
Detector Input Module
FC470CV:
Double-Gang cover
Recycling information
Customers are recommended to dispose of their
used equipments (panels, detectors, sirens, and
other devices) in an environmentally sound man-
ner. Potential methods include reuse of parts or
whole products and recycling of products, com-
ponents, and/or materials.
Waste electrical and electronic
equipment (WEEE) directive
In the European Union, this label indi-
cates that this product should NOT
be disposed of with household
waste. It should be deposited at an
appropriate facility to enable reco-
very and recycling.
The manufacturer reserves the right to change
the technical specifications of this product
without prior notice.
Fixing Instructions Doc. version 3.0
FireClass
