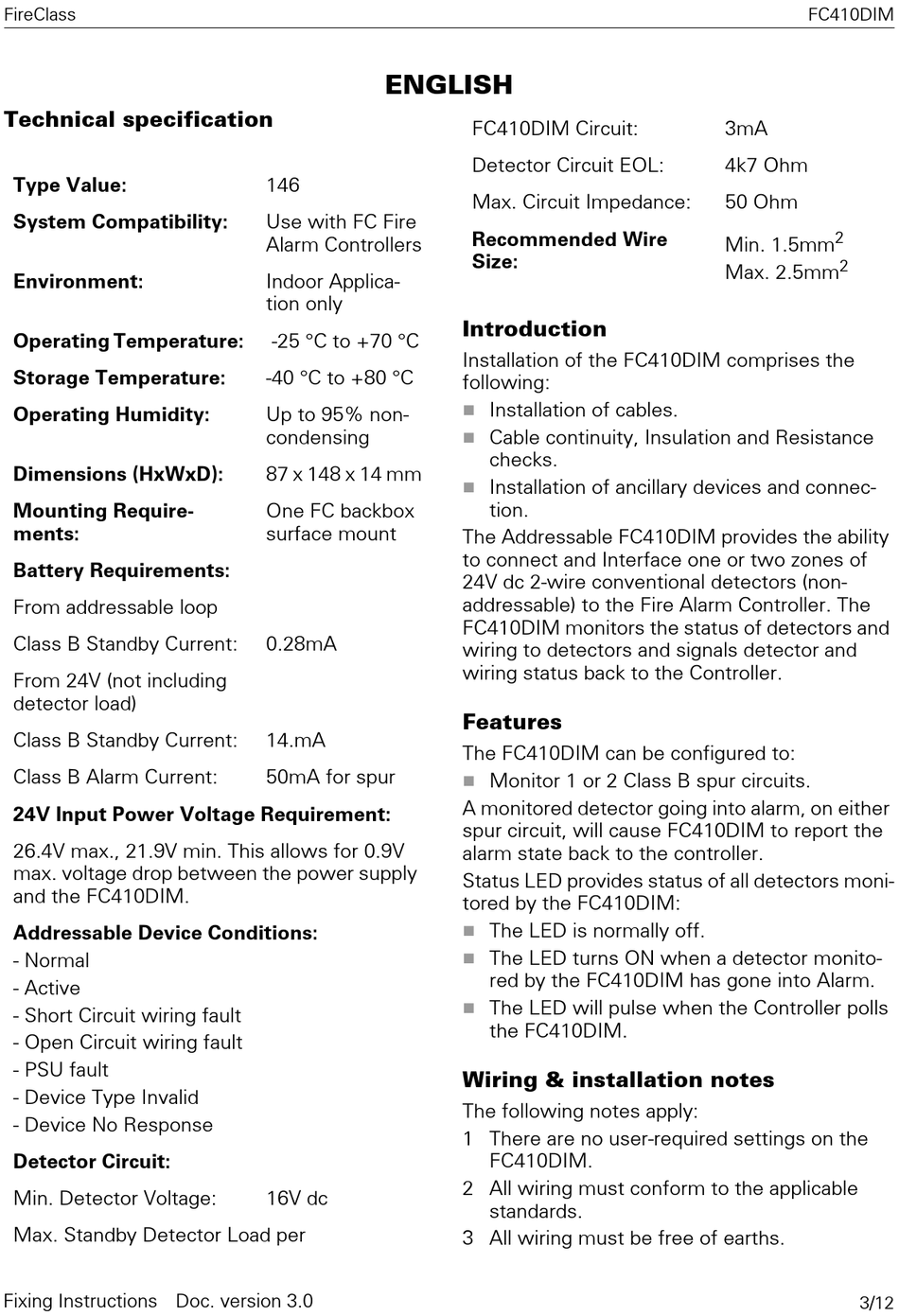

FireClass
Technical specification
Type Value:
System Compatibility:
Environment:
Operating Temperature:
Storage Temperature:
Operating Humidity:
Dimensions (HxWxD):
Mounting Require-
ments:
Battery Requirements:
From addressable loop
Class B Standby Current:
From 24V (not including
detector load)
Class B Standby Current:
Class B Alarm Current:
24V Input Power Voltage Requirement:
26.4V max., 21.9V min. This allows for 0.9V
max. voltage drop between the power supply
and the FC410DIM.
Addressable Device Conditions:
- Normal
- Active
- Short Circuit wiring fault
- Open Circuit wiring fault
- PSU fault
- Device Type Invalid
- Device No Response
Detector Circuit:
Min. Detector Voltage:
Max. Standby Detector Load per
Fixing Instructions Doc. version 3.0
ENGLISH
146
Use with FC Fire
Alarm Controllers
Indoor Applica-
tion only
-25 °C to +70 °C
-40 °C to +80 °C
Up to 95% non-
condensing
87 x 148 x 14 mm
One FC backbox
surface mount
0.28mA
14.mA
50mA for spur
16V dc
FC410DIM Circuit:
Detector Circuit EOL:
Max. Circuit Impedance:
Recommended Wire
Size:
Introduction
Installation of the FC410DIM comprises the
following:
Installation of cables.
Cable continuity, Insulation and Resistance
checks.
Installation of ancillary devices and connec-
tion.
The Addressable FC410DIM provides the ability
to connect and Interface one or two zones of
24V dc 2-wire conventional detectors (non-
addressable) to the Fire Alarm Controller. The
FC410DIM monitors the status of detectors and
wiring to detectors and signals detector and
wiring status back to the Controller.
Features
The FC410DIM can be configured to:
Monitor 1 or 2 Class B spur circuits.
A monitored detector going into alarm, on either
spur circuit, will cause FC410DIM to report the
alarm state back to the controller.
Status LED provides status of all detectors moni-
tored by the FC410DIM:
The LED is normally off.
The LED turns ON when a detector monito-
red by the FC410DIM has gone into Alarm.
The LED will pulse when the Controller polls
the FC410DIM.
Wiring & installation notes
The following notes apply:
1 There are no user-required settings on the
FC410DIM.
2 All wiring must conform to the applicable
standards.
3 All wiring must be free of earths.
FC410DIM
3mA
4k7 Ohm
50 Ohm
2
Min. 1.5mm
2
Max. 2.5mm
3/12
