Weight Adjustment - humanscale M2.1 Installationsanleitung

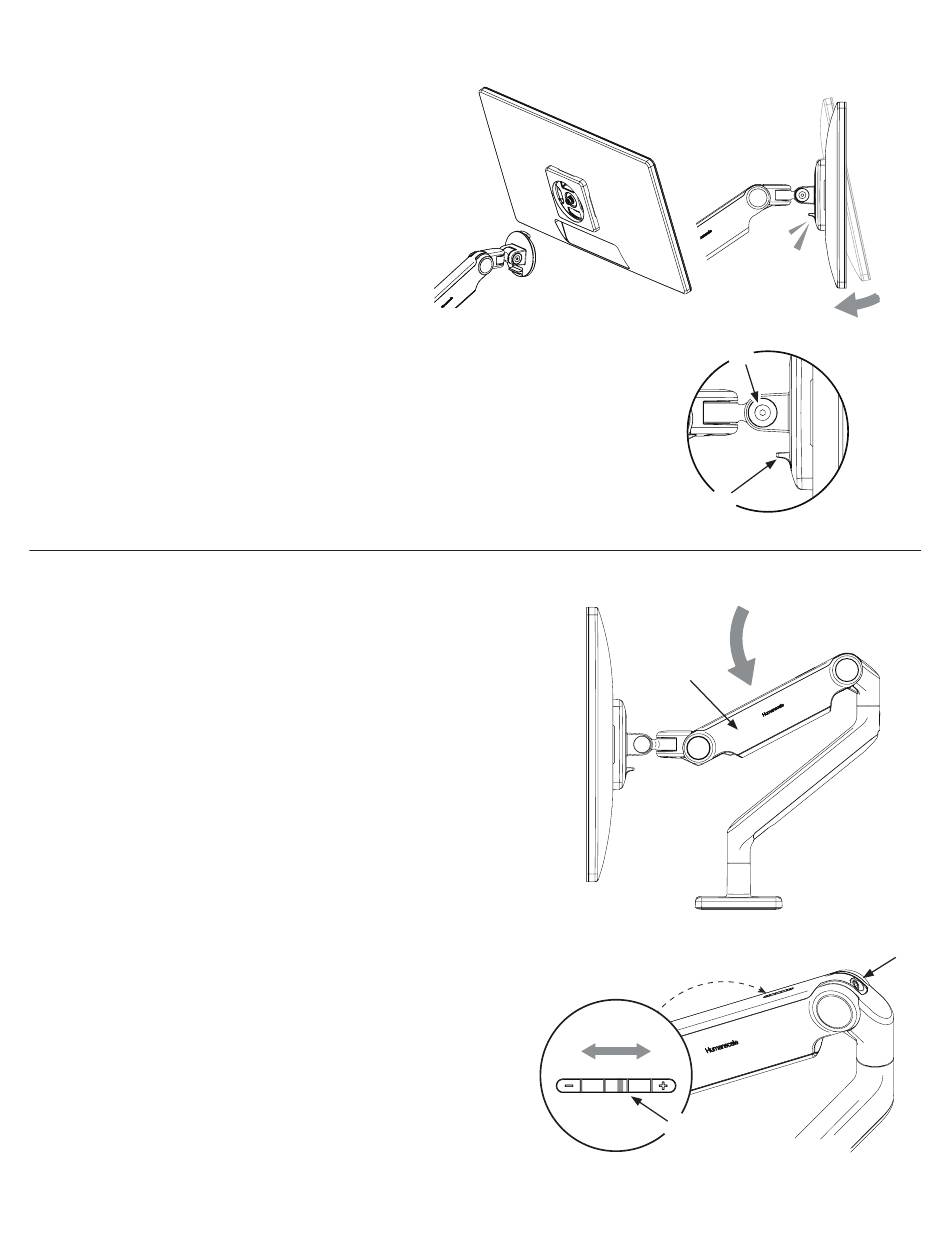

Attach Monitor To Arm
1 Hold the monitor angled back and lower it onto
the arm. Fit the hook at the top of the arm into
the corresponding cutout in the VESA Bracket.
2 Tilt the monitor back upright until the Quick
Release Tab (B) on the arm snaps into position.
3 To remove the monitor, lift the Quick Release
Tab and pull the bottom of the monitor away
from the arm, then lift free of the hook.
NOTE: If needed, adjust the tension screw (A) to
hold the monitor in position.

Weight Adjustment

Your monitor should move up and down easily and stay in
place once adjusted. If it is difficult to adjust or moves without
assistance, it is not properly balanced.
M2.1: Weight Range: 5.5-15.5 lbs. (2.5-7 kg)
1
Press the Upper Arm Link (A) downward until Adjustment
Screw (B) is visible.
2
If the arm rises up on it's own, the lift force is too high
and can be decreased by rotating the Adjustment Screw
counterclockwise (towards -) with a 4 mm hex key. If the
arm falls down with the weight of the monitor, the lift force
is too low and can be increased by turning the Adjustment
Screw clockwise (towards +).
3
The current counterbalance setting can be seen through
the counterbalance indicator (C) on top of the upper arm.
This information can be used to quickly set multiple arms
to the same level without needing the monitors to be
installed.
CAUTION: Do not over tighten the screws as it can damage
the screw head or threads.
