3 Installation with KERN EMB 2000-2V

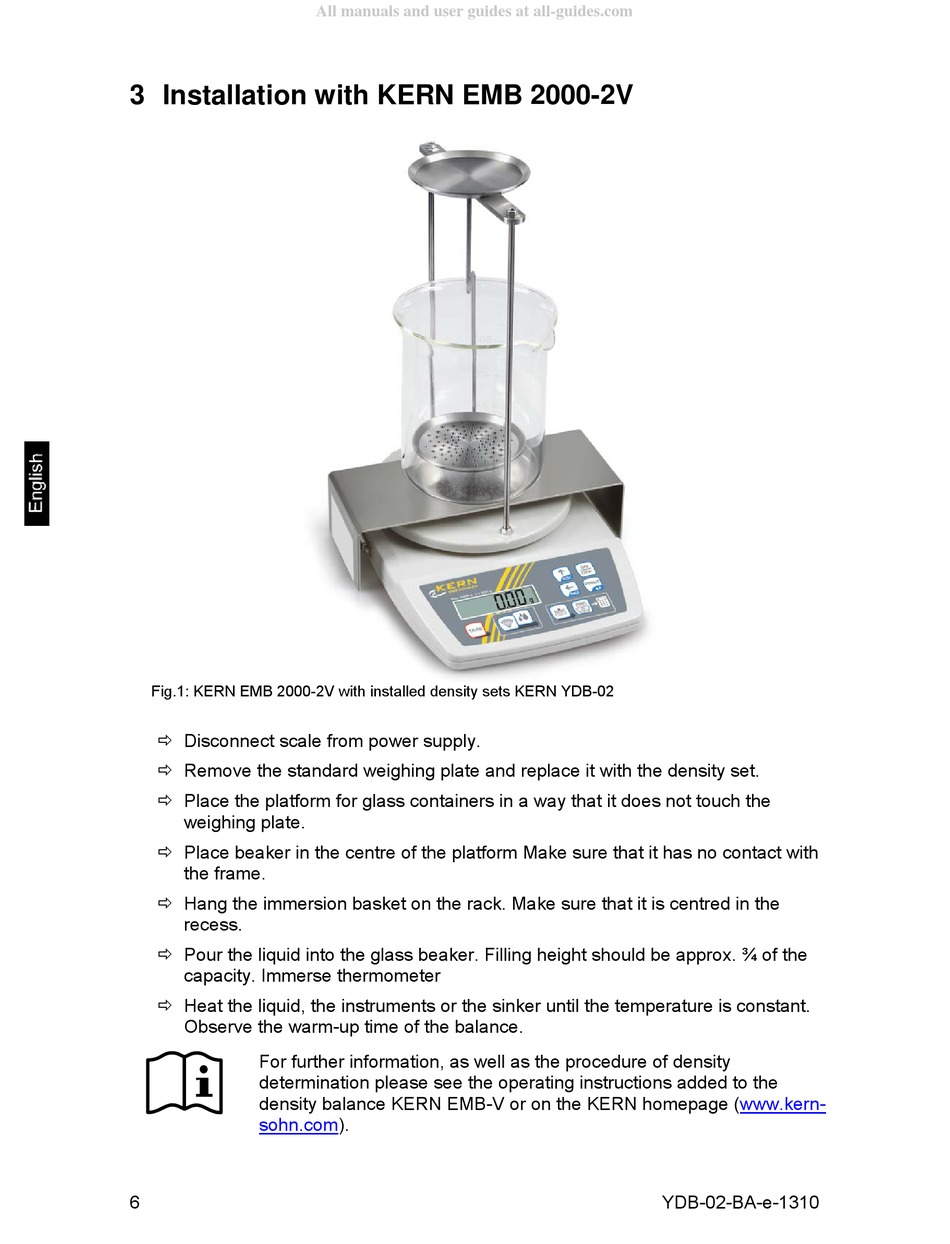

Fig.1: KERN EMB 2000-2V with installed density sets KERN YDB-02
Disconnect scale from power supply.
Remove the standard weighing plate and replace it with the density set.
Place the platform for glass containers in a way that it does not touch the
weighing plate.
Place beaker in the centre of the platform Make sure that it has no contact with
the frame.
Hang the immersion basket on the rack. Make sure that it is centred in the
recess.
Pour the liquid into the glass beaker. Filling height should be approx. ¾ of the
capacity. Immerse thermometer
Heat the liquid, the instruments or the sinker until the temperature is constant.
Observe the warm-up time of the balance.
For further information, as well as the procedure of density
determination please see the operating instructions added to the
density balance KERN EMB-V or on the KERN homepage
sohn.com).
6
All manuals and user guides at all-guides.com
(www.kern-
YDB-02-BA-e-1310
