Mounting and wiring of CYK11 junction box

9.3.1 Installation of CYK11 junction box
The junction box is installed with the front cover removed.

Wall installation

The junction box must be installed such that the cables are introduced from below.
Mount the housing of the junction box directly to the wall or mounting plate. The mounting plate can
be used as a drilling template.

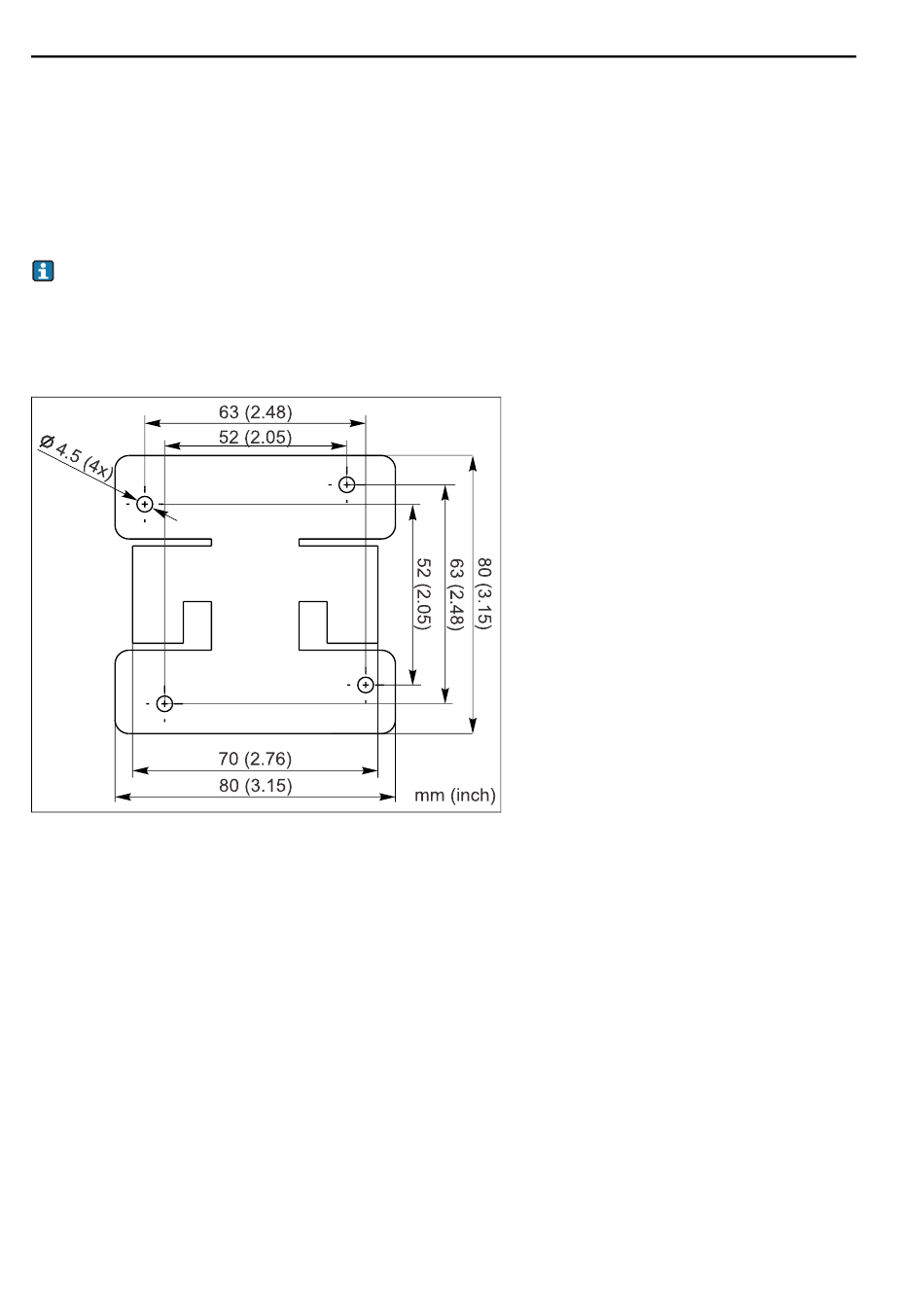

Dimensions of the mounting plate
a0016243
