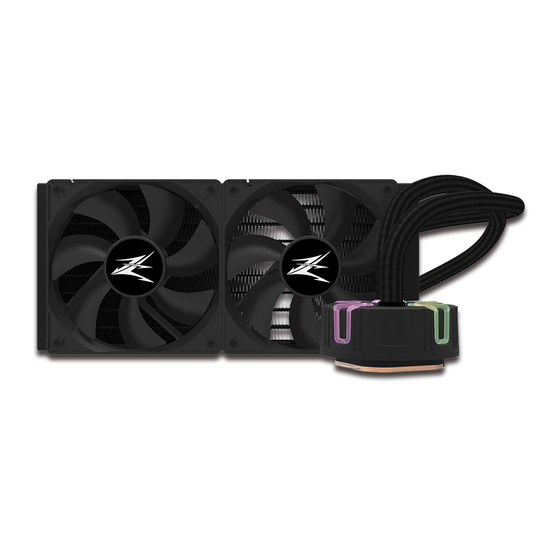

Z24/Z36 User's Manual
Ver. 053121
Latest Intel & AMD Compatibility
Intel Socket : LGA2066/2011-V3/2011/1200/115x CPUs
AMD Socket : AM4/AM3
www.zalman.com
* To ensure safe and easy installation, please read the following precaution.
1
* Product design and specifications may be revised to improve quality and performance without notice.
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für ZALMAN Reserator5
Inhaltszusammenfassung für ZALMAN Reserator5
- Seite 1 Latest Intel & AMD Compatibility Intel Socket : LGA2066/2011-V3/2011/1200/115x CPUs AMD Socket : AM4/AM3 www.zalman.com * To ensure safe and easy installation, please read the following precaution. * Product design and specifications may be revised to improve quality and performance without notice.
-
Seite 2: Sicherheitshinweise
■ Au cours du transport du système, le refroidisseur doit être retiré. Zalman Tech Co., Ltd. n'est pas responsable de tout dommage qui pourrait survenir au cours du transport d'un système. -
Seite 3: Меры Предосторожности
■ Zalman Tech Co., Ltd. no se responsabiliza de los daños que se produzcan en el «overclocking» de la CPU, como en la propia CPU como en los componentes del sistema. - Seite 4 ■ A Zalman Tech Co., Ltd. não se responsabiliza por quaisquer danos ao CPU, bem como aos componentes do sistema, causados por overclocking. ■ Durante o transporte do sistema, o refrigerador deve ser removido. A Zalman Tech Co., Ltd. não se responsabiliza por quaisquer danos que ocorram durante o transporte de um sistema.
-
Seite 5: Środki Ostrożności
■ Cégünk nem vállal felelősséget a termék szakszerűtlen vagy nem megfelelő használatából eredő problémákért. ■ Zalman Tech Co., Ltd. Is not responsible for any damages dne to overclocking CPU such as, CPU and system components. - Seite 6 ■ La nostra azienda non si assume alcuna responsabilità per eventuali problemi dovuti all’utilizzo del prodotto per scopi diversi da quelli per i quali è progettato e/o per negligenza del cliente. ■ Zalman Tech Co., Ltd. non è responsabile di alcun danno a CPU overcloccate e componenti della CPU e del sistema.
-
Seite 7: Specifications
Specifications Model Reserator 5 (Z24/Z36) Material PPS, PC, Pure Copper Dimensions 82(L) x 82(W) x 40(H)mm Pump Speed 1,000~2,100RPM±10% PWM Control Control Method LED : Addressable RGB (3-Pin 5V ) Materials Aluminum Radiator 120 X 278 X 27(H)mm Dimensions 120 X 397 X 27(H)mm Dimensions 120 X 120 X 25(H)mm Bearing Type... - Seite 8 1) Nuts Position ① ① AM3 ② ③ ② LGA1200 / 115x ③AM4 Caution Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket. No backplate is necessary for Intel LGA2066 /2011-V/2011 socket. 2) LGA1200/115x...
- Seite 9 3) AM3 4) AM4...
- Seite 10 INTEL, AMD Loading Block 1) Intel 2) AMD Loading Block(Intel) Loading Block(AMD) INTEL, AMD Clip 1) Intel Intel Clip LGA 1200/115X LGA 2066/2011-V3/2011 2) AMD AMD Clip...
- Seite 11 1. Intel Users 1) LGA2066/2011-V3/2011 Stand-offs(B) Thermal Compound Fixing Bolts 2) LGA1200/115x Washers Stand-offs(A)
- Seite 12 Thermal Compound Fixing Bolts 2. AMD Users 1) AM3/AM4 Washers Stand-offs(A)
- Seite 13 Thermal Compound Fixing Bolts Caution Be sure to check the direction of the connector pin of the pump and cable to fit the groove. Pump Cable Pump Connector Cable Connector...
- Seite 14 Screw Washers UNC 6-32 5mm screws UNC 6-32 30mm screws Screw Washers UNC 6-32 30mm screws...
-
Seite 15: Cable Connection
3. Cable Connection 1) Connection to other motherboards (Z24/Z36) PWM Pump Cable (4-Pin, 12V) Pump LED Cable (3-Pin, 5V, Addressable RGB) Reserator 5 (Z24) PWM Fan Cable (A) PWM Fan 'Y' Cable PWM Fan Cable (B) Reserator 5 (Z36) PWM Fan Cable (A) PWM Fan 'Triple' Cable PWM Fan Cable (B) PWM Fan Cable (C) - Seite 16 4. Fan Specifications Model Reserator 5 Z24/Z36 Dimensions Bearing Type 120 x 120 x 25(H)mm EBR Bearing Speed 800 ~ 2,000 RPM±10% Max Noise Level 37 dB(A) ±10% Max Air Flow Max Air Pressure 77.37 CFM ±10% 2.92mmH₂O Control Method Life Span PWM Control 50,000hours...
- Seite 17 MEMO...
- Seite 18 MEMO...
- Seite 19 MEMO...
- Seite 20 Zalman Tech Co.,Ltd. #2612, Obiztower, 126, Beolmal-ro, Dongan-gu, Anyang-si, Gyeonggi-do,14057, Korea...
