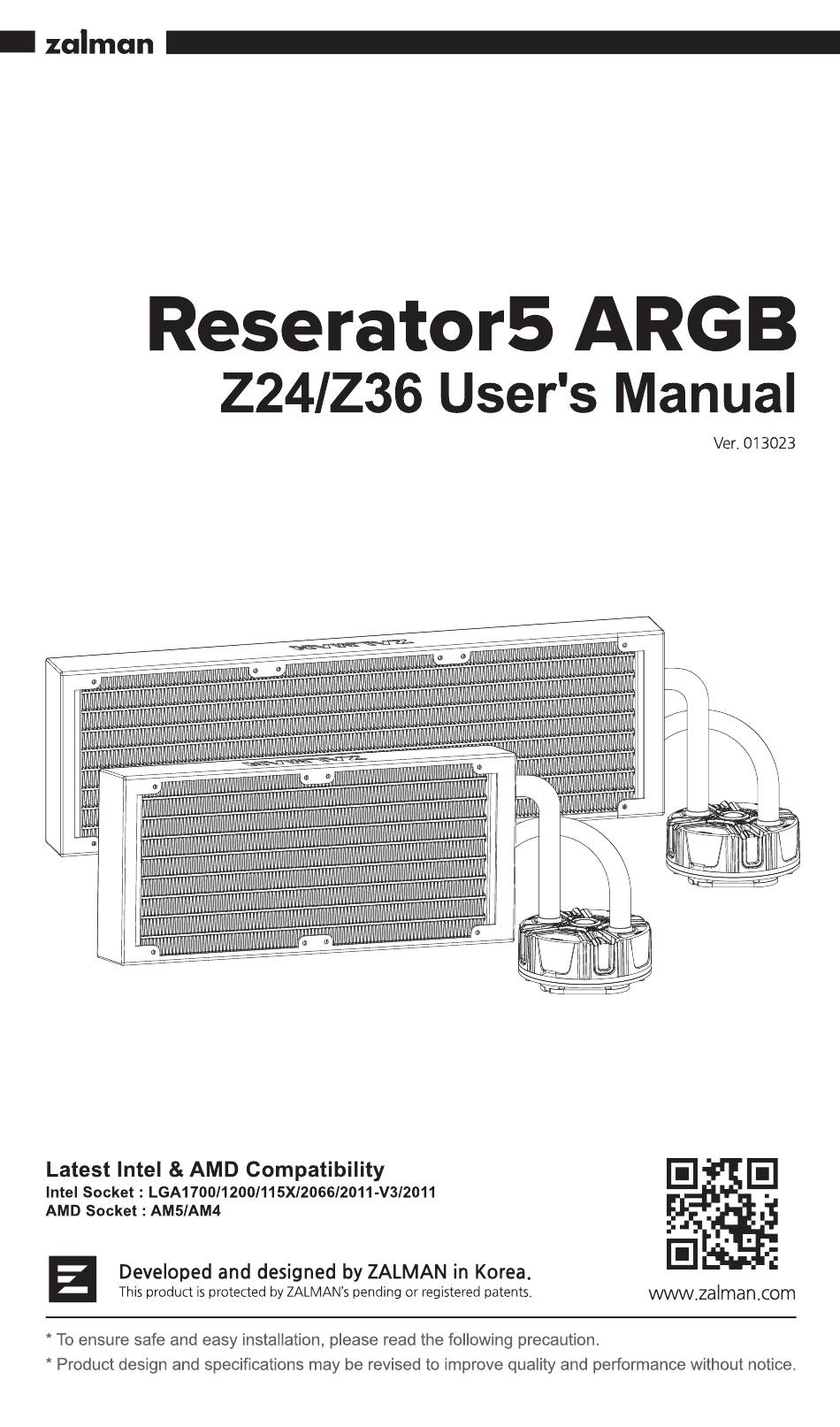

zalman
Reserator5
Latest Intel & AMD Compatibility
Intel
Socket
: LGAI
700/1200/115X/2066/2011.V3/2011
AMD
Socket
: AM5/AM4
Developed and designed by ZALMAN in Korea.
This product is protected by ZALMAN•s pending or registered patents
* To ensure safe and easy installation, please read the following precaution
• Product design and specifications
Z24/Z36
may be revised to improve quality and performance
ARGB
User's
Manual
Ver. 013023
www.zalman.com
without notice.
