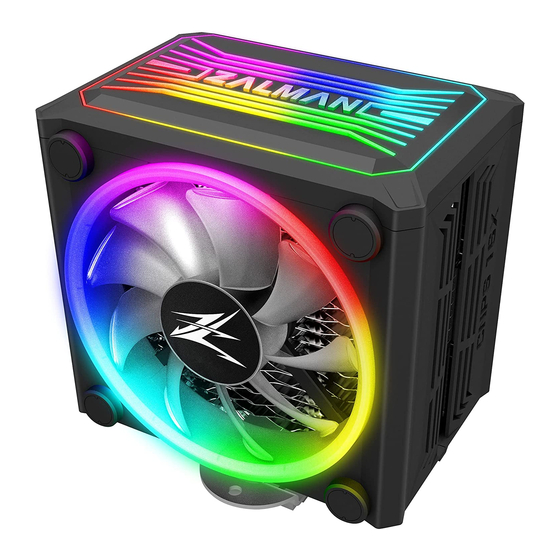

User's Manual
Ver. 010620
Latest Intel & AMD Compatible
Intel Socket LGA2066/2011-V3/2011/115X CPUs
AMD Socket AM4/AM3+/AM3 CPUs
www.zalman.com
* To ensure safe and easy installation, please read the following precaution.
1
* Product design and specifications may be revised to improve quality and performance without notice.
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für ZALMAN CNPS16X
Inhaltszusammenfassung für ZALMAN CNPS16X
- Seite 1 Latest Intel & AMD Compatible Intel Socket LGA2066/2011-V3/2011/115X CPUs AMD Socket AM4/AM3+/AM3 CPUs www.zalman.com * To ensure safe and easy installation, please read the following precaution. * Product design and specifications may be revised to improve quality and performance without notice.
-
Seite 2: Sicherheitshinweise
■ Au cours du transport du système, le refroidisseur doit être retiré. Zalman Tech Co., Ltd. n'est pas responsable de tout dommage qui pourrait survenir au cours du transport d'un système. -
Seite 3: Меры Предосторожности
■ Zalman Tech Co., Ltd. no se responsabiliza de los daños que se produzcan en el «overclocking» de la CPU, como en la propia CPU como en los componentes del sistema. - Seite 4 ■ A Zalman Tech Co., Ltd. não se responsabiliza por quaisquer danos ao CPU, bem como aos componentes do sistema, causados por overclocking. ■ Durante o transporte do sistema, o refrigerador deve ser removido. A Zalman Tech Co., Ltd. não se responsabiliza por quaisquer danos que ocorram durante o transporte de um sistema.
-
Seite 5: Środki Ostrożności
■ Cégünk nem vállal felelősséget a termék szakszerűtlen vagy nem megfelelő használatából eredő problémákért. ■ Zalman Tech Co., Ltd. Is not responsible for any damages dne to overclocking CPU such as, CPU and system components. - Seite 6 ■ La nostra azienda non si assume alcuna responsabilità per eventuali problemi dovuti all’utilizzo del prodotto per scopi diversi da quelli per i quali è progettato e/o per negligenza del cliente. ■ Zalman Tech Co., Ltd. non è responsabile di alcun danno a CPU overcloccate e componenti della CPU e del sistema.
-
Seite 7: Specifications
Specifications Model CNPS16X Materials Pure Copper, Pure Aluminum, ABS Dimensions 140(L) x 100(W) x 165(H)mm Weight 880g Heat Dissipation Area 5,117㎠ Dimensions 120(L) x 120(W) x 26(H)mm Bearing Type EBR Bearing Fan Speed 800~1,500 RPM ±10% Max Noise Level 27.0 dB(A) ±10%... - Seite 8 INTEL, AMD Backplate 1) Nuts Position ① ① AM3 ② ③ ② 115X ③AM4 Caution Please check the proper ZALMAN logo direction on backplate for each Intel and AMD socket. No backplate is necessary for Intel LGA2066/2011-V/2011 socket. 2) 115X...
- Seite 9 3) AM3 4) AM4 Caution Take note of the orientation of the nuts and the side caps.
- Seite 10 INTEL, AMD Loading Block 1) Intel 2) AMD Loading Block(Intel) Loading Block(AMD) Caution Remove the tape cover of loading block and attach it to the backplate. 1. Intel Users 1) LGA2066 / 2011-V3 / 2011 Stand-offs(B) Intel Guide Stand-off Nuts 2) Nuts Position Caution Backplate is not needed for LGA2066 / 2011-V3 / 2011 sockets.
- Seite 11 Fixing Bolts Detail Image Caution Screw-in both bolts in an alternating fashion until they are completely tightened. Fan + Guide (Front) Fan + Guide (Reverse) Caution Please check the direction of the fan before installation. Cooler Top LED Cover ③ ⑤...
- Seite 12 2) LGA115X Washers Stand-offs(A) Stand-off Nuts Intel Guide 3) Nuts Position Thermal Compound Fixing Bolts Detail Image Caution Screw-in both bolts in an alternating fashion until they are completely tightened.
- Seite 13 Fan + Guide (Front) Fan + Guide (Reverse) Caution Please check the direction of the fan before installation. Cooler Top LED Cover ① ② Caution Be sure to connet ⑤ with ③. ※ Placing ⑤ on ①, ② or ④ could cause malfunction &...
- Seite 14 2. AMD Users 1) AM3 / AM4 Washers Stand-offs(A) AMD Guide Stand-off Nuts 2) Nuts Position Caution Please be cautious for the direction of AMD Guide installation. Thermal Compound Fixing Bolts Detail Image Caution Screw-in both bolts in an alternating fashion until they are completely tightened.
- Seite 15 Fan + Guide (Front) Fan + Guide (Reverse) Caution Please check the direction of the fan before installation. Cooler Top LED Cover ① ② Caution Be sure to connet ⑤ with ③. ※ Placing ⑤ on ①, ② or ④ could cause malfunction &...
- Seite 16 3. Installation Guide 1) Top LED Cover (Install) 2) Top LED Cover (Dismantle) Caution • Please be sure to check the RGB pins and its connector before installation. • Please align RGB pins vertically to its connector during installation. (Pins can be bent if your alignment off). 1) Fan + Guide (Install) 2) Fan + Guide (Dismantle) Caution...
-
Seite 17: Cable Connection
4. Cable Connection 1) Connection to other motherboards PWM Fan Cable(A) PWM Fan 'Y' Cable PWM Fan Cable(B) 2) Connection to Gigabyte motherboards... - Seite 18 PWM Fan Cable(A) PWM Fan 'Y' Cable PWM Fan Cable(B) 4. Fan Specifications Model : LF120 Dimensions : 120 x 120 x 26(H)mm Fan Speed : 800 ~ 1,500 ±10% RPM Max Noise Level : 27 dB(A) ±10% Bearing Type : EBR Bearing Max Airflow : 49 CFM ±10% Max Air Pressure : 1.21mmH Pin Connector : 4-Pin (PWM), 3-Pin (Addressable)
- Seite 19 제품 보증서 제품명 모델명 구입일 년 월 일 Serial No. 구입처 판매 금액 1. 품질 보증기간 : 제품 구입일로부터 1년. (단, 구입 영수증이 있을 때) 2. 무상 A/S : 품질 보증기간 내에 제품 자체 성능 상의하자 및 불량 발생 시. 3.
- Seite 20 www.zalman.com...
