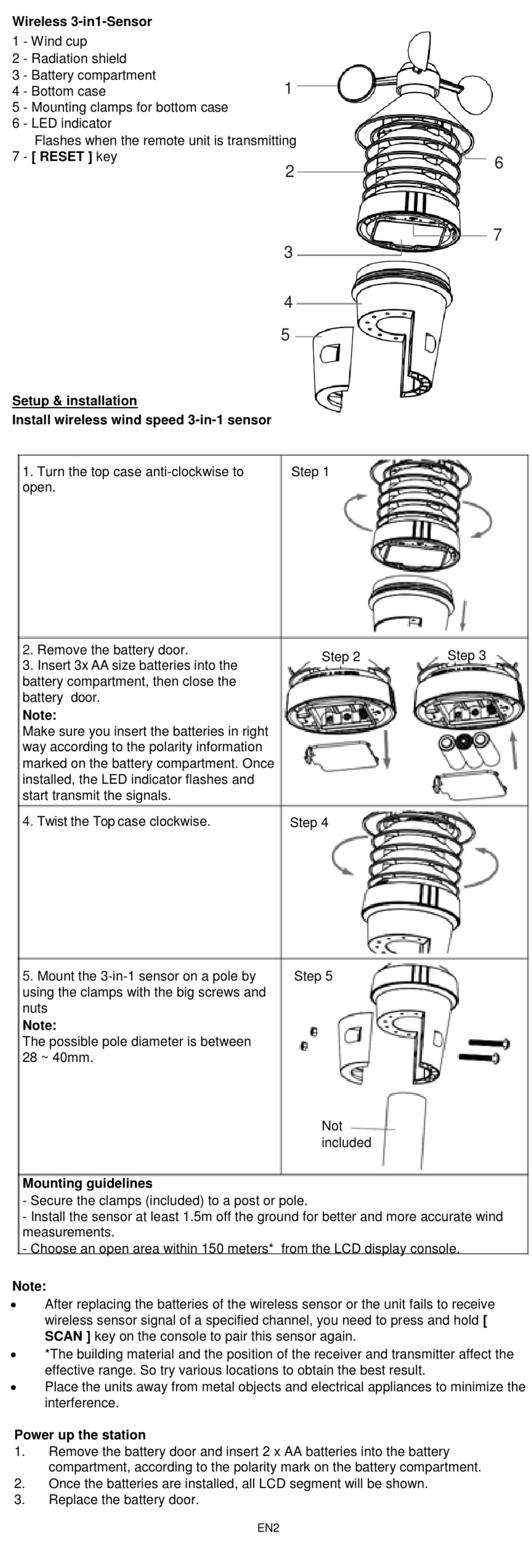

Wireless 3-in1-Sensor
1 -
Wind cup
2 - Radiation shield
3 - Battery compartment
4 - Bottom case
5 - Mounting clamps for bottom case
6 -
LED indicator
Flashes when the remote unit is transmitting
7 - [ RESET ] key
Setup & installation
Install wireless wind speed 3-in-1 sensor
1. Turn the top case anti-clockwise to
open.
2.
Remove the battery door.
3. Insert 3x AA size batteries into the
battery compartment, then close the
battery door.
Note:
Make sure you insert the batteries in right
way according to the polarity information
marked on the battery compartment. Once
installed, the LED indicator flashes and
start transmit the signals.
4.
Twist the Top case clockwise.
5.
Mount the 3-in-1 sensor on a pole by
using the clamps with the big screws and
nuts
Note:
The possible pole diameter is between
28 ~ 40mm.
Mounting guidelines
- Secure the clamps (included) to a post or pole.
- Install the sensor at least 1.5m off the ground for better and more accurate wind
measurements.
- Choose an open area within 150 meters* from the LCD display console.
Note:
After replacing the batteries of the wireless sensor or the unit fails to receive
wireless sensor signal of a specified channel, you need to press and hold [
SCAN ] key on the console to pair this sensor again.
*The building material and the position of the receiver and transmitter affect the
effective range. So try various locations to obtain the best result.
Place the units away from metal objects and electrical appliances to minimize the
interference.
Power up the station
1.
Remove the battery door and insert 2 x AA batteries into the battery
compartment, according to the polarity mark on the battery compartment.
2.
Once the batteries are installed, all LCD segment will be shown.
3.
Replace the battery door.
1
2
3
4
5
Step 1
Step 2
Step 4
Step 5
Not
included
EN2
6
7
Step 3
