9.2

Setting up back doors

If you would like to integrate another door video module (maximum of 16) into the system to add
a back door (e.g.: receiving goods, cellar doors etc.), follow these steps:
1) Connect the door video module for the back door to the network for the main door
intercom station. All devices at the door intercom station must be located on the physical
LAN.
2) Open the ABUS CMS software and activate the door module for the back door.
3) Add the door intercom module for the back door in ABUS CMS software and open remote
configuration.

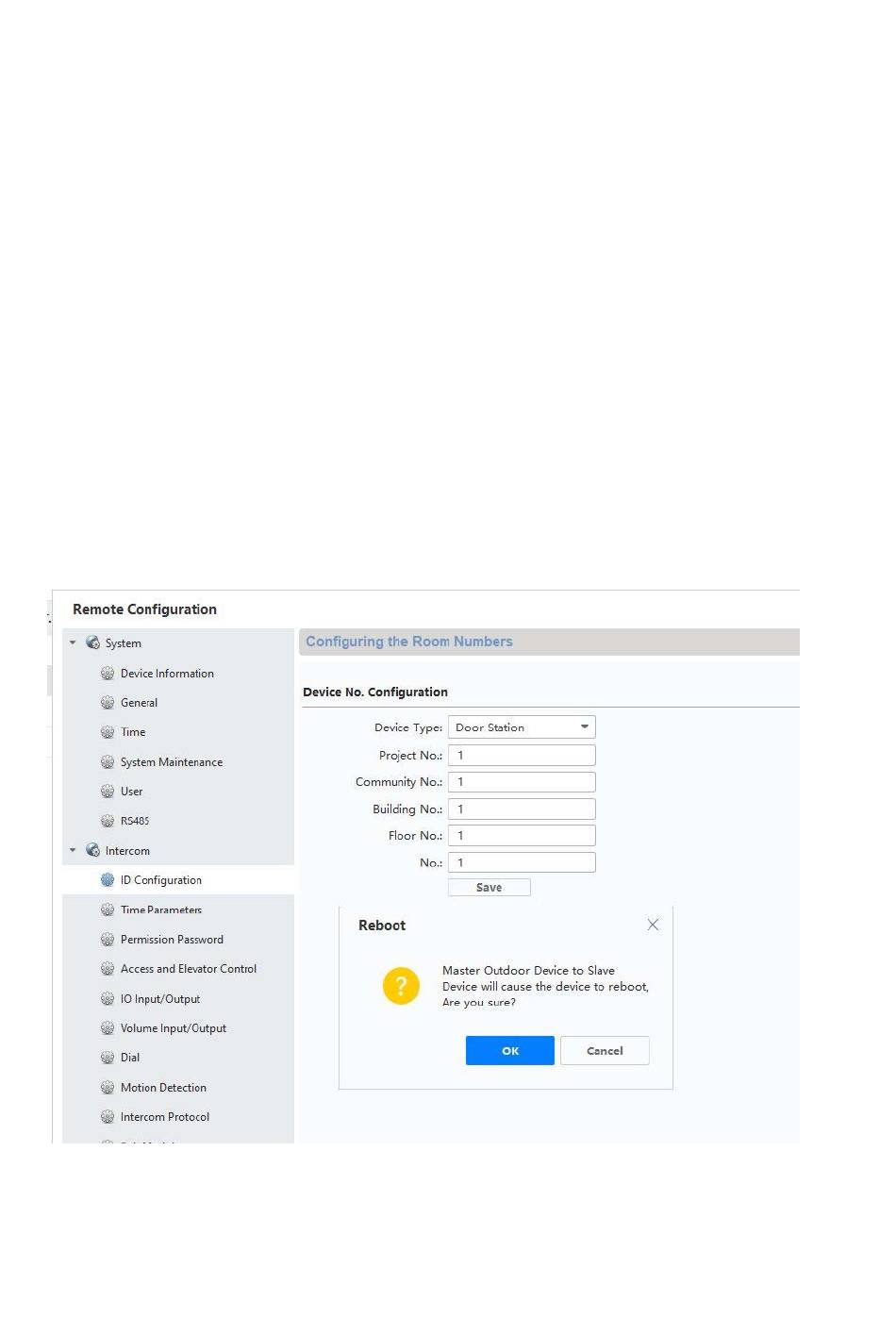

4) Now turn to "Room Number" under "Intercom". The numbers for the back door are entered
under "No.:". The main door video module must have the number "0". The additional
back doors will be numbered 1-9. Do not change the "Period/Building/Unit or Floor"
numbers.
After savings, the system will restart. Confirm by pressing "OK".
