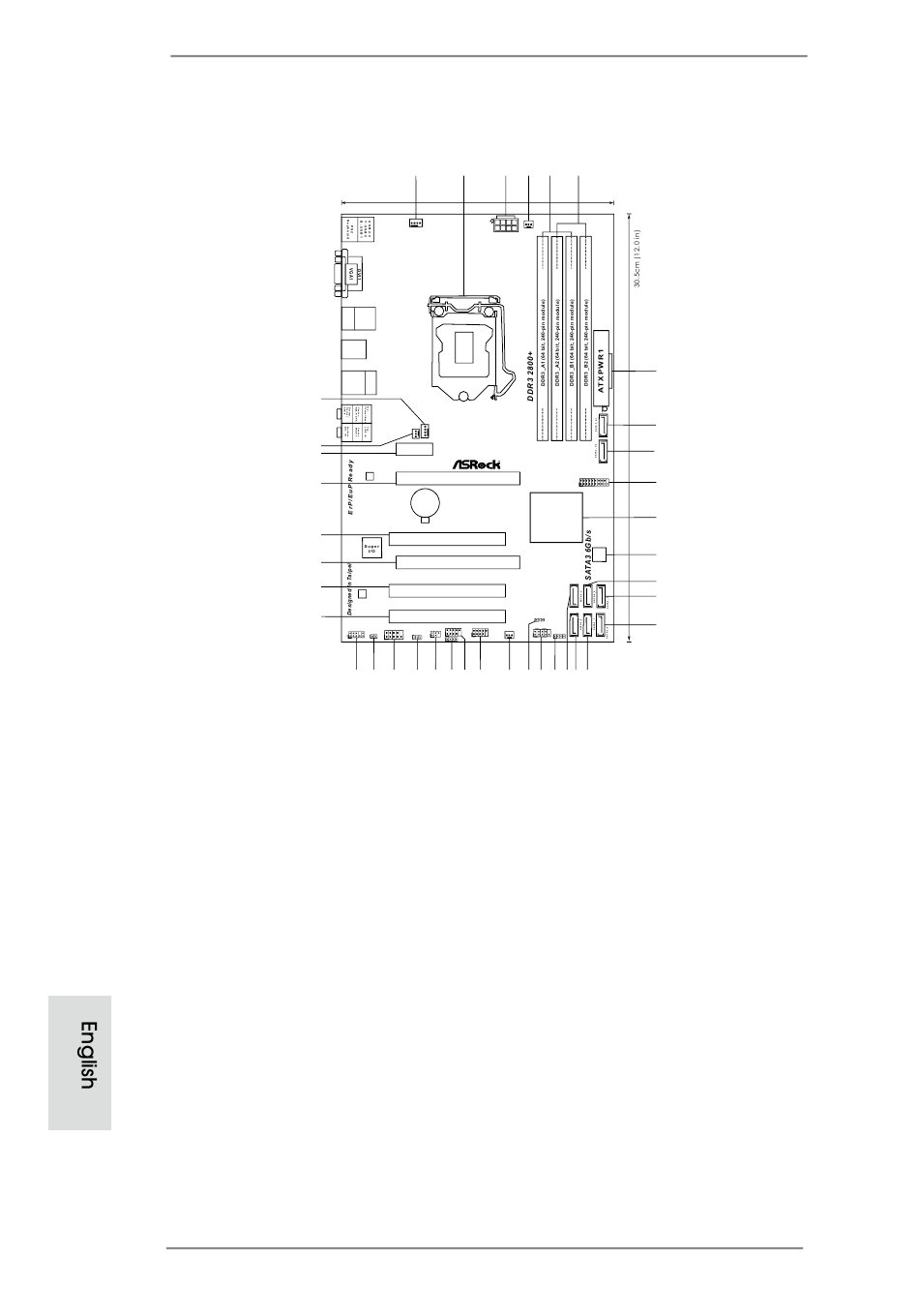

Motherboard Layout
1 CPU Fan Connector (CPU_FAN1)
2 1155-Pin CPU Socket
3 ATX 12V Power Connector (ATX12V1)
4 CPU Fan Connector (CPU_FAN2)
5 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
6 2 x 240-pin DDR3 DIMM Slots
(DDR3_A2, DDR3_B2, Black)
7 ATX Power Connector (ATXPWR1)
8 SATA3 Connectors (SATA3_A1, Gray)
9 SATA3 Connectors (SATA3_A2, Gray)
10 USB 3.0 Header (USB3_0_1, Black)
11 Intel Z77 Chipset
12 SPI Flash Memory (64Mb)
13 SATA2 Connectors (SATA2_4, Black)
14 SATA2 Connectors (SATA2_3, Black)
15 SATA3 Connectors (SATA3_0, Gray)
16 SATA3 Connectors (SATA3_1, Gray)
17 SATA2 Connectors (SATA2_2, Black)
18 SATA2 Connectors (SATA2_5, Black)
19 Chassis Speaker Header (SPEAKER1, Black)
20 System Panel Header (PANEL1, Black)
2
1 2
20.1cm (7.9 in)
CPU_FAN1
USB 2.0
HDMI1 T: USB2
B: USB3
USB 3.0
T: USB2
B: USB3
USB 2.0
Top:
T: USB4
RJ-45
B: USB5
38
CHA_FAN1
PWR_FAN1
37
PCIE1
36
LAN
PCIE2
PHY
35
PCI Express 3.0
CMOS
Battery
34
PCI1
X X
Fast LAN F ast RAM
33 PCIE3
Z77 Pro4
X
Fast USB
32
PCI2
AUDIO
CODEC
RoHS
31 PCI3
USB_8_9 USB_6_7
HD_AUDIO1
COM1 IR1
HDMI_SPDIF1
CLRCMOS1
1 1
1 1
1
1
CIR1
1
30 29 28 27 26 25 24 23
ASRock Z77 Pro4 Motherboard
3 4 5 6
CPU_FAN2
ATX12V1
7
8
Front USB 3.0
9
USB3_0_1
10
1
Intel
11
Z77
64Mb
12
BIOS
13
14
PLED1
1
15
PLED PWRBTN
CHA_FAN2
SPEAKER1
1
1
HDLED RESET
PANEL1
17 16
22 21 20 19 18
21 Power LED Header (PLED1)
22 Chassis Fan Connector (CHA_FAN2)
23 USB 2.0 Header (USB_6_7, Black)
24 USB 2.0 Header (USB_8_9, Black)
25 Consumer Infrared Module Header
(CIR1, Gray)
26 Infrared Module Header (IR1)
27 Clear CMOS Jumper (CLRCMOS1)
28 COM Port Header (COM1)
29 HDMI_SPDIF Header
(HDMI_SPDIF1, Black)
30 Front Panel Audio Header
(HD_AUDIO1, Black)
31 PCI Slot (PCI3, Black)
32 PCI Slot (PCI2, Black)
33 PCI Express 2.0 x16 Slot (PCIE3, Black)
34 PCI Slot (PCI1, Black)
35 PCI Express 3.0 x16 Slot (PCIE2, Black)
36 PCI Express 2.0 x1 Slot (PCIE1, Black)
37 Power Fan Connector (PWR_FAN1)
38 Chassis Fan Connector (CHA_FAN1)
