Bose FreeSpace Installationsanleitung Seite 6

Installation
6

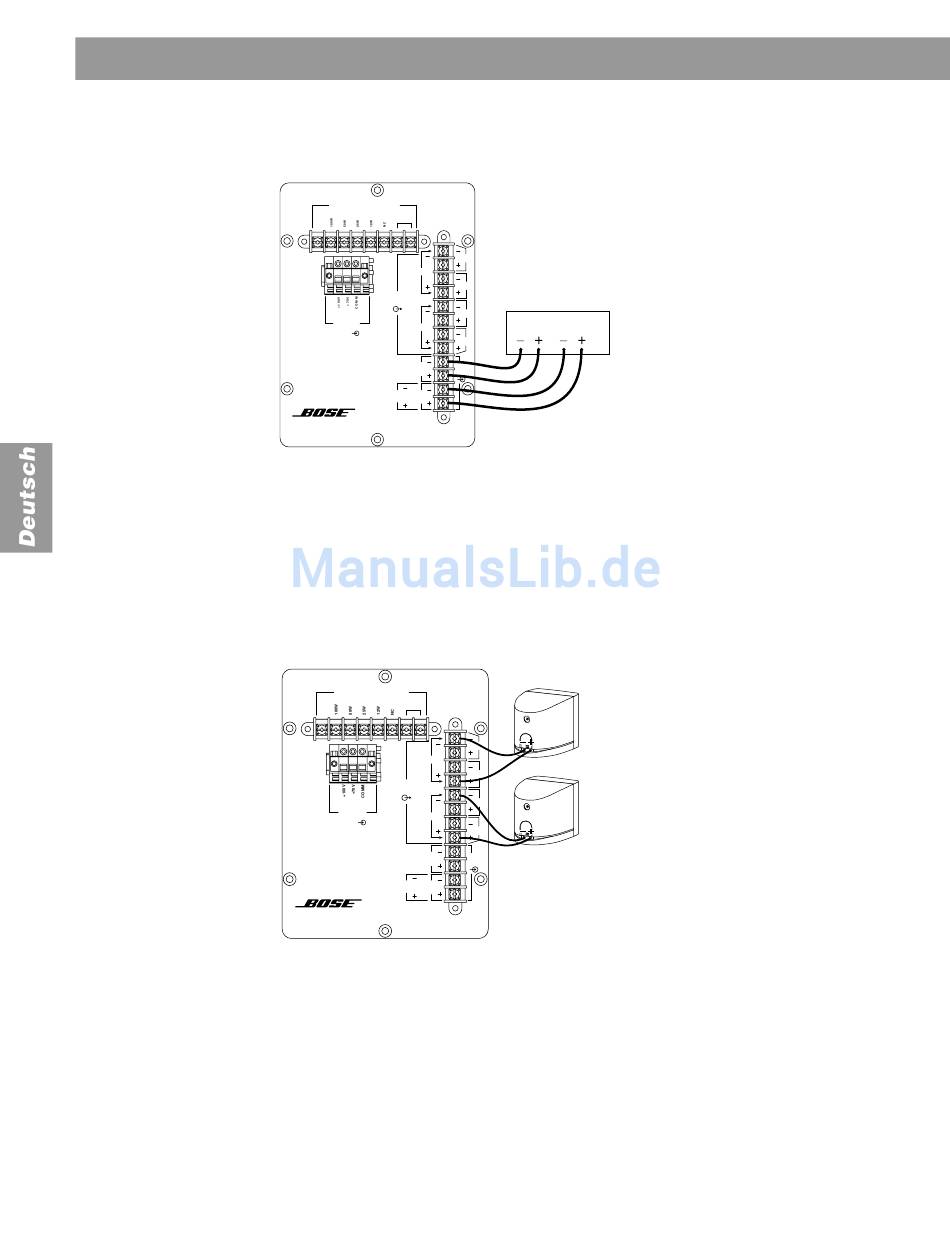

• Anschließen einer Stereo-Quelle unter Umgehung des
Transformators
Note: Jumpers required
TRANSFORMER SETTINGS
for 70V/100V operation.
For transformer bypass,
remove jumpers from
transformer settings and
+
use 4-8Ω input.
SAT 2
SATELLITE
CONNECTIONS
MONO
SAT 1
70V/100V
INPUT___
Refer to installation manual
PN254410 for proper installation STEREO
CH 2
and operation instructions
INPUT
MONO STEREO
USE JUMPERS
CH 1
FreeSpace 3 ®
Acoustimass Module
2.4 Anschluss des Satelliten-Lautsprechers
Es gibt drei Optionen zum Anschließen der Satelliten-Lautsprecher
an das Modul, gleichgültig, ob der Transformator verwendet wird
oder nicht:
• Mit 2 Satelliten-Lautsprechern
Note: Jumpers required
TRANSFORMER SETTINGS
for 70V/100V operation.
For transformer bypass,
remove jumpers from
transformer settings and
+
use 4-8Ω input.
SAT 2
SATELLITE
CONNECTIONS
MONO
SAT 1
70V/100V
INPUT___
Refer to installation manual
PN254410 for proper installation STEREO
CH 2
and operation instructions
MONO STEREO
USE JUMPERS CH 1
FreeSpace 3 ®
Acoustimass Module
SAT 4
SAT 3
SAT 2
Stereo Source
L R
SAT 1
4-8Ω
SAT 4
Channel 2
in Stereo
SAT 3
SAT 2
SAT 1
Channel 1
in Stereo
4-8Ω
INPUT
