Operation

6.1

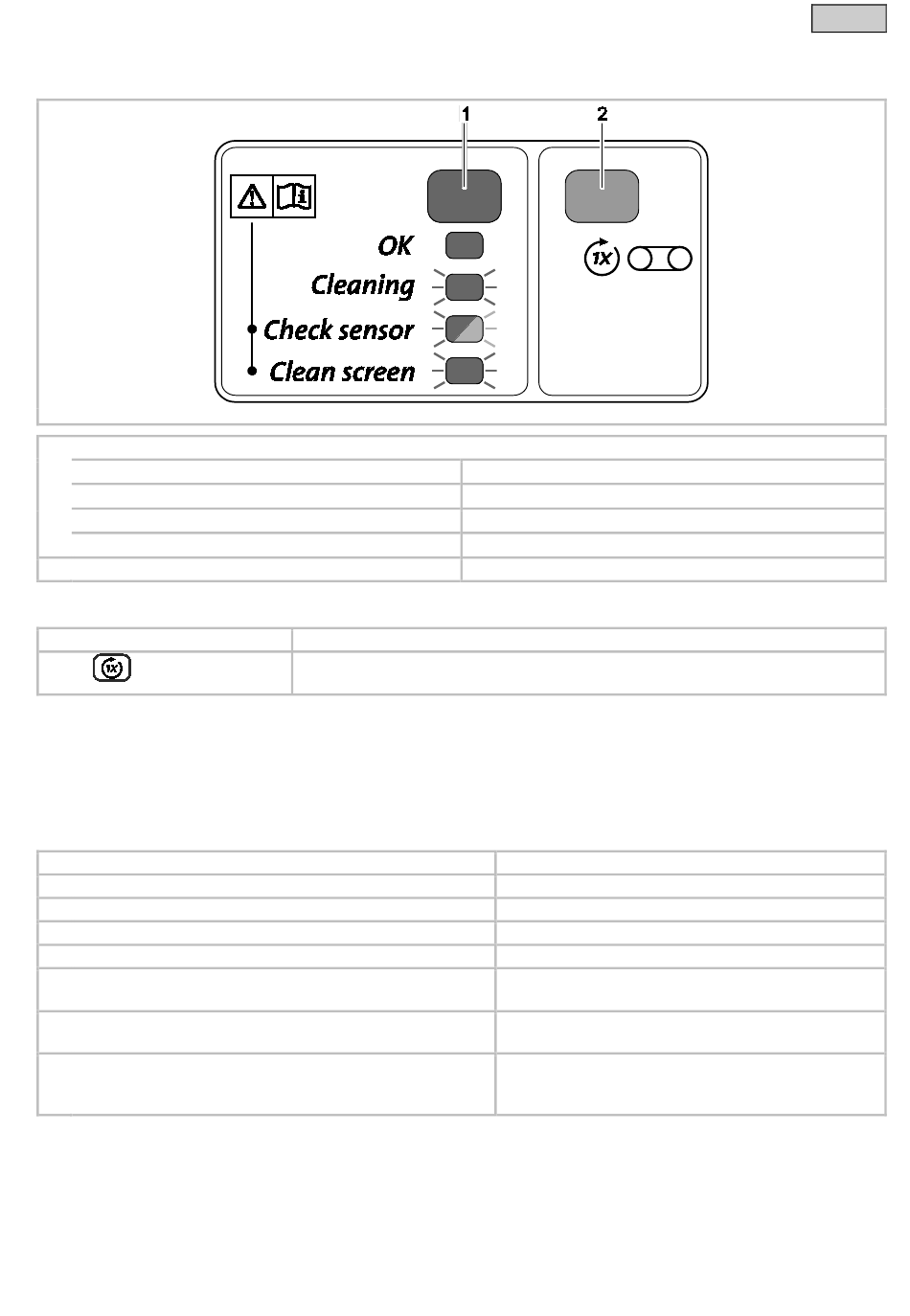

Operating panel

1 LED, 2 colours
• Lit green
• Flashes green
• Flashes green/red
• Flashes red
2 Button, start/stop manual cleaning
6.2

Manual cleaning

Proceed as follows
Press for 1 s.
6.3

Automatic cleaning

Due to the build-up of debris the water level on the ScreenMatic screen also rises. When the sensor in the
control device comes into contact with the water, it triggers the rotational movement of the ScreenMatic
screen.
By briefly moving the ScreenMatic screen back several times a larger line of debris is formed, which can be
better removed by the stripper.
Sequence of an automatic cleaning cycle
Normal soiling
1. Contact of the sensor with water
2. Contact of the sensor with water
3. Contact of the sensor with water
4. Contact of the sensor with water
Heavy soiling or incorrectly aligned control device (perma-
nently high water level on the ScreenMatic screen)
1. Contact of the sensor with water
The ScreenMatic rotating screen unit is operational
Cleaning active
Malfunction (→ System messages)
Malfunction (→ System messages)
(→ Manual cleaning)
Description
The ScreenMatic screen is rotated by 1 revolution.
• Press the button again for 1 s: The rotational movement stops prematurely.
Rotational movement of the ScreenMatic screen
Brief movement backward
Brief movement backward
Brief movement backward
One rotation forward
• The debris is conveyed into the debris tray.
Brief movement backward, then one rotation for-
ward
• The debris is conveyed into the debris tray.
