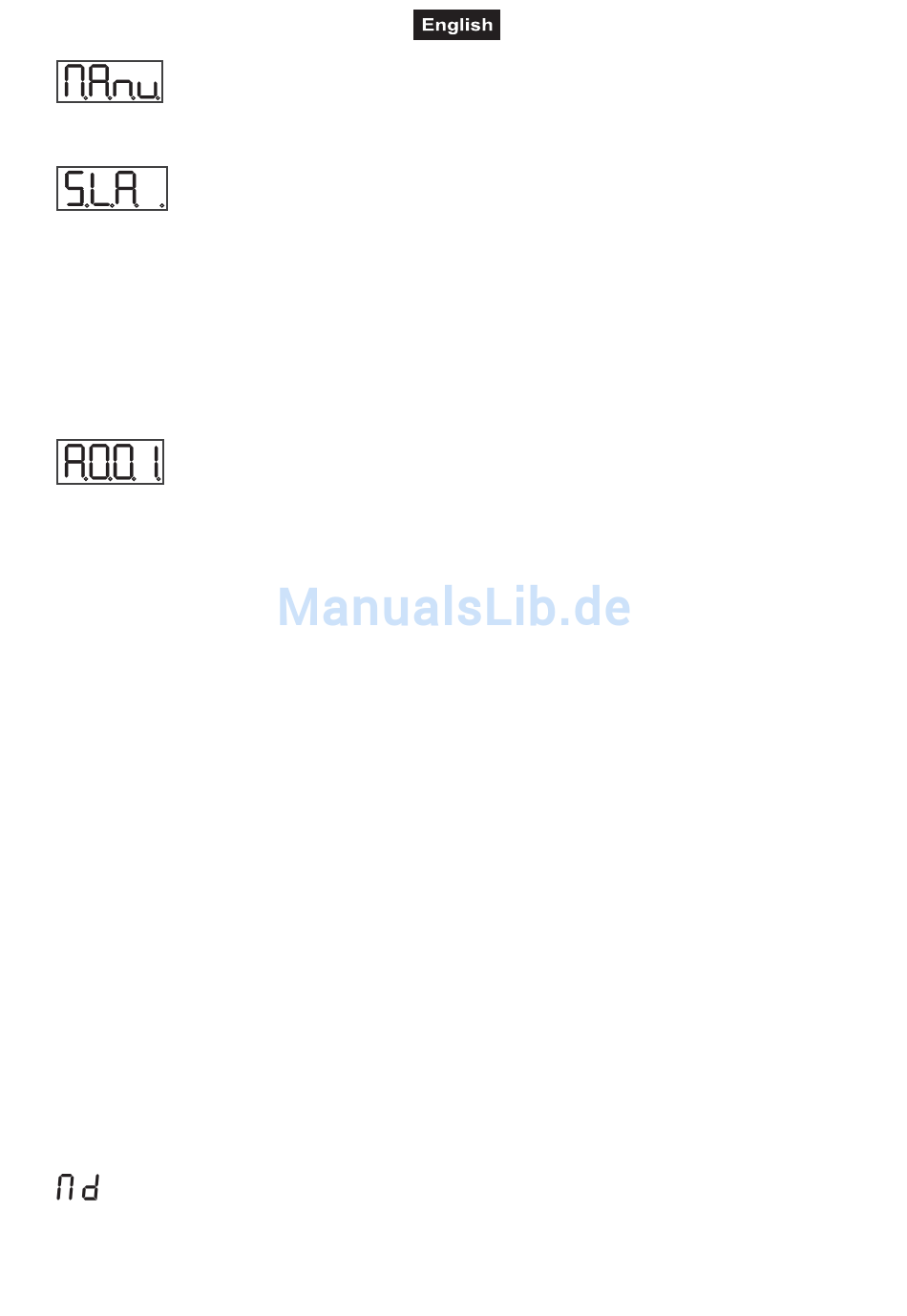

Manual RGB mixing
Press the F / S button. The desired color mixtures can be selected via the UP or DOWN
buttons.
Master/Slave-Operation
The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the side panel of the LED WMS 8-fold set RBG you can find an XLR-jack and an XLR-plug, which can be
used for connecting several controllers.
Choose the controller which is to control the effects. This device then works as master-device and controls
all other slave-devices, which are to be connected to the master-device via a balanced lead. Connect the
OUT-jack with the IN-plug of the next device.
DMX-controlled operation
You can control the projectors individually via your DMX-controller. Every DMX-channel has a different
occupation with different features.
Addressing
The Control Board allows you to assign the DMX fixture address, which is defined as the first channel from
which the LED WMS 8-fold set RBG will respond to the controller.
For address setting, press the Up/Down-buttons until the display shows "A001" and set the desired address
via the Up/Down-buttons.
Controlling:
After having addressed the LED WMS 8-fold set RBG, you may now start operating it via your lighting
controller.
Note:
After switching on, the LED WMS 8-fold set RBG will automatically detect whether DMX 512 data is received
or not. If the data is received, the control LED flashes. If there is no data received at the DMX-input, the
control LED lights up permanently.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of the LED WMS
8-fold set RBG.
- the controller is switched off or defective, if the cable or connector is defective or the signal wires are swap
in the input connector.
Note: It's necessary to insert the XLR termination plug (with 120 Ohm) in the last lighting in the link in order
to ensure proper transmission on the DMX data link.
DMX-protocol
L I
Control channel 1 – Each spot occupies the same 6 channels as every other. Eight spots
occupy 6 channels.
20/42
00026151.DOC, Version 2.2
