3.A. CHECKING AND SETTING THE DIP SWITCHES
Check the configuration of the DIP SWITCHES (at the back of the UPS, see Figure
C) against the below table (according to the options installed, if any). The dip switch
configurations are illustrated in Figure E
Configuration 1
SW1
1 2 3 4 5
Configuration 3
SW1
1 2 3 4 5 6 7 8
Configuration 5
SW1
1 2 3 4 5 6 7 8
Configuration 7
SW1
1 2 3 4 5 6 7 8

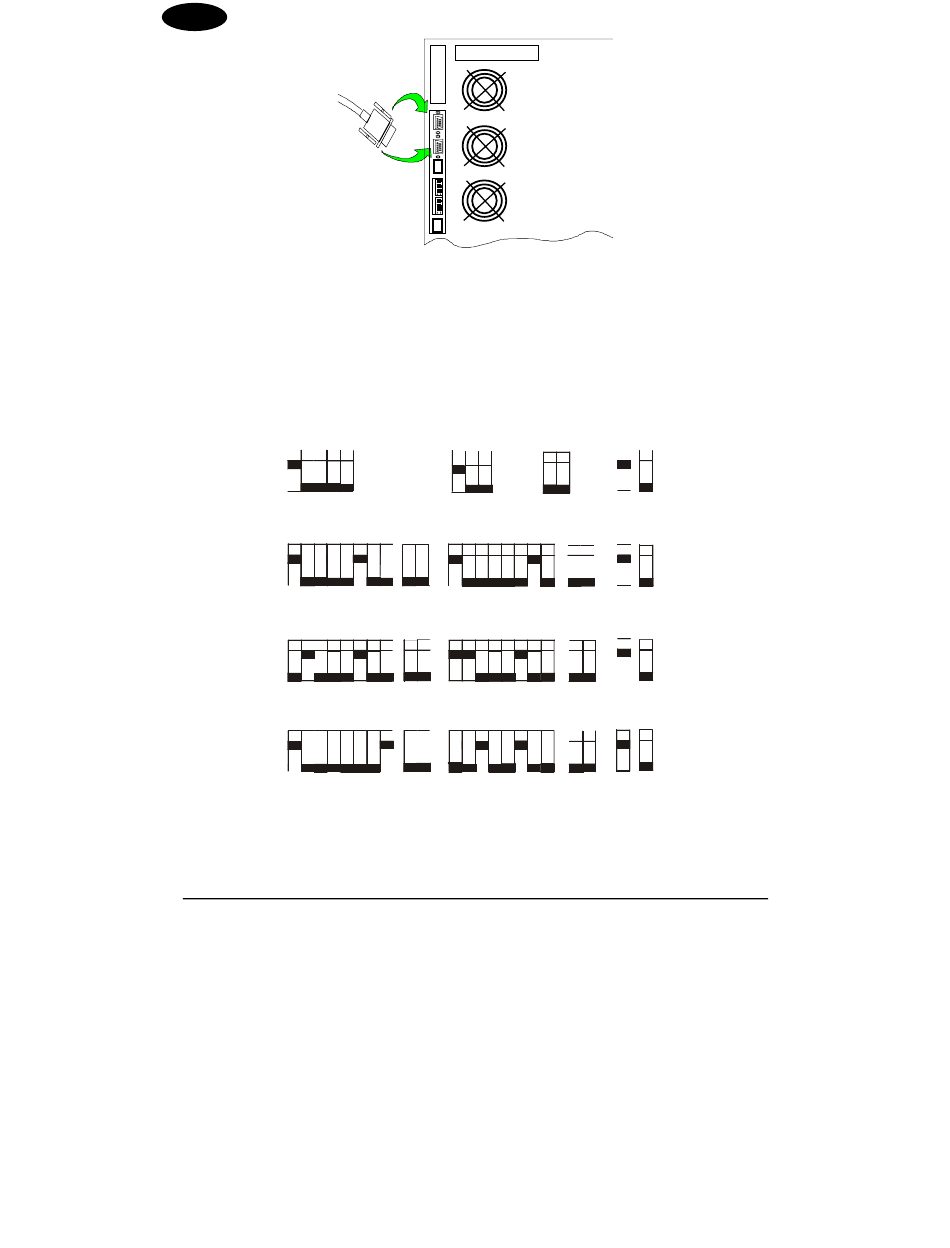

Figure D – Synthesis TWIN™ DIP SWITCH configurations
N.B. In the set-up illustrated in fig.f baud rate (speed of data transmission) is
programmed for a default value of 9600, if the personal computer in use is not
compatible with this value it may be altered in accordance with the table below:
page 4 – Hardware installation instructions – 10H92240P1 rev. 2 – 11/2000
