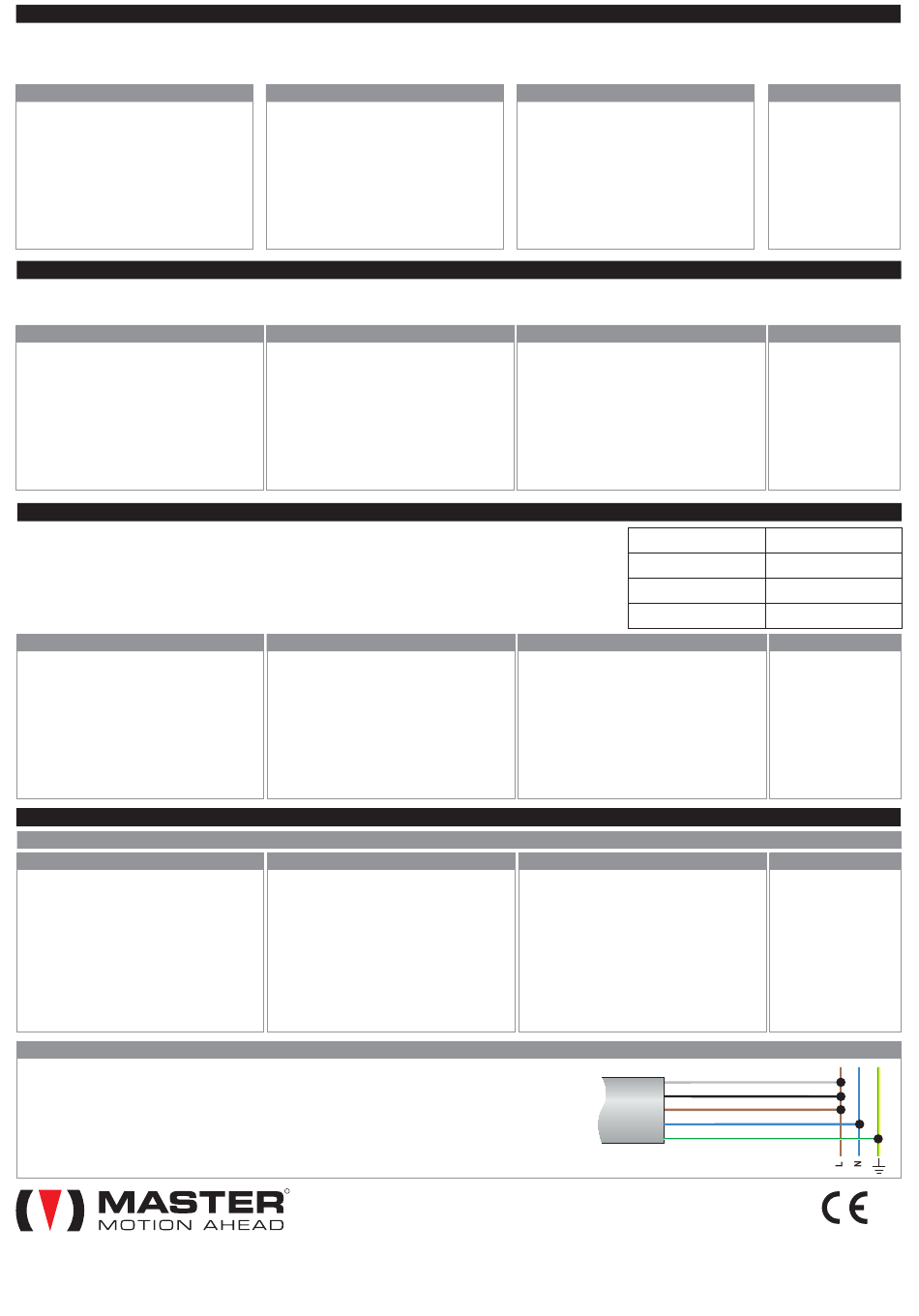

11. OPERATION LOGIC OF COMMAND BUTTONS

The buttons can be operated either in PULSE logic or HOLD-TO-RUN logic.
PULSE: to activate the motor press a button for at least 0.5 seconds, to stop the motor press briefly (less than 0.5 seconds) one of the two buttons.
HOLD-TO-RUN: to activate the motor press a button for at least 0.5 seconds, to stop the motor release the button.
The factory sets the device to work in PULSE logic. To modify this parameter operate as described.
10.1 UTILIZZANDO IL TRASMETTITORE (solo Atom e Leg)
ARCO
01. Bring the motor in an intermediate position
02. Press MENU for about 5 sec, until «rS»
appears on display
03. Press 1 time PREV / 8 times NEXT.
«18» appears on display
04. Press STOP. The motor signals:
1 up = hold-to-run, 1 down = pulse
05. To select PULSE: press PREV
To select HOLD-TO-RUN: press NEXT
06. Press STOP. The motor signals:
1 up = hold-to-run, 1 down = pulse

12. TEST RADIO

As soon as the module stores a wind sensor, a communication control is automatically activated between the sensor and the device. If the communication is lost for more than 60
minutes, the motor performs an upward movement to protect the blind. This automatic manoeuvre is performed every 60 minutes until the reactivation of the radio communication.
The factory recommends to keep the "test radio" active in order to identify in good time any malfunction of the radio sensor or of the radio communication.
10.1 UTILIZZANDO IL TRASMETTITORE (solo Atom e Leg)
ARCO
01. Bring the motor in an intermediate position
02. Press MENU for about 5 sec, until «rS»
appears on display
03. Press 1 time PREV / 7 times NEXT.
«17» appears on display
04. Press STOP. The motor signals:
1 up = active, 1 down = inactive
05. To deactivate: press PREV
To activate: press NEXT
06. Press STOP. The motor signals:
1 up = active, 1 down = inactive

13. TENSIONING ADJUSTMENT

During the installation, the motor calculates the optimum torque value needed to properly stretch the fabric when this is
completely unrolled. The value set by the factory is: 1 MINIMUM TENSIONING.
In case you want to change this parameter, operate as described.
10.1 UTILIZZANDO IL TRASMETTITORE (solo Atom e Leg)
ARCO
01. Bring the motor in an intermediate position
02. Press MENU for about 5 sec, until «rS»
appears on display
03. Press 9 times NEXT.
«09» appears on display
04. Press STOP. The motor signals the current
value (1 to 3 movements)
05. Press NEXT the number of times equal to
the desired setting (1 to 3)
06. Press STOP. The motor signals the new
value (1 to 3 movements)

14. RESET

14.1 USING A TRANSMITTER
ARCO
01. Bring the motor in an intermediate position.
02. Press MENU for about 5 sec, until «rS»
appears on display
03. Press 2 time PREV / 9 times NEXT.
«29» appears on display
04. Press STOP. The display flashes, the
motor performs some movement
05. Press together PREV and NEXT for about
2 seconds until the motor indicates that the
reset was performed (1 moving up / down).
06. Reinstall the motor (see section 4).
14.2 USING COMMAND BUTTONS
01. If possible, bring the motor to the intermediate position.
02. Disconnect the power supply.
03. Connect as on the diagram.
04. Connect the power supply. Wait 30 seconds, the motor makes a signal: «
If you want to delete also the limit switch wait, otherwise go to point 6.
05. After 15 seconds, the motor makes another signal: «
06. Disconnect the power supply.
07. Restore the connections (see diagram on section 3).
08. Reinstall the motor (see section 5).
All rights reserved. All products and technical specifications given in this document are subject to variation without notice. Unless previously and specifically authorised by the manufacturer, the device must be used
exclusively with transmitters produced by the same manufacturer. The manufacturer shall not be liable for damage resulting from improper, incorrect or unreasonable use.
FLUTE, KUADRO, KORT
01. Bring the motor in an intermediate position
02. Holding down STOP, press PROG for
about 1 sec, until LEDs light
03. Press 1 time UP / 8 times DOWN.
04. Press STOP. The motor signals:
1 up = hold-to-run, 1 down = pulse
05. To select PULSE: press DOWN
To select HOLD-TO-RUN: press UP
06. Press STOP. The motor signals:
1 up = hold-to-run, 1 down = pulse
FLUTE, KUADRO, KORT
01. Bring the motor in an intermediate position
02. Holding down STOP, press PROG for
about 1 sec, until LEDs light
03. Press 1 time UP / 7 times DOWN.
04. Press STOP. The motor signals:
1 up = active, 1 down = inactive
05. To deactivate: press DOWN
To activate: press UP
06. Press STOP. The motor signals:
1 up = active, 1 down = inactive
FLUTE, KUADRO, KORT
01. Bring the motor in an intermediate position
02. Holding down STOP, press PROG for about
1 sec, until LEDs light
03. Press 9 times DOWN.
04. Press STOP. The motor signals the current
value (1 to 3 movements)
05. Press DOWN the number of times equal to
the desired setting (1 to 3)
06. Press STOP. The motor signals the newt
value (1 to 3 movements)
FLUTE, KUADRO, KORT
01. Bring the motor in an intermediate position.
02. Holding down STOP, press PROG for
about 1 sec, until LEDs light
03. Press 2 time UP / 9 times DOWN.
04. Press STOP. The LEDs flash, the motor
performs some movement
05. Press together UP and DOWN for about 2
seconds until the motor indicates that the
reset was performed (1 moving up /
down).
06. Reinstall the motor (see section 4).
Radio code deleted
Limit switch deleted ».
R
All rights reserved.
VISIO
01. Bring the motor in an intermediate position
02. Press MENU, «Menu rx» appears on
display
03. Press 1 time PREV / 8 times NEXT.
«18» appears on display
04. Press STOP. The motor signals:
1 up = hold-to-run, 1 down = pulse
05. To select PULSE: press DOWN
To select HOLD-TO-RUN: press UP
06. Press STOP. The motor signals:
1 up = hold-to-run, 1 down = pulse
VISIO
01. Bring the motor in an intermediate position
02. Press MENU, «Menu rx» appears on
display
03. Press 1 time PREV / 7 times NEXT.
«17» appears on display
04. Press STOP. The motor signals:
1 up = active, 1 down = inactive
05. To deactivate: press DOWN
To activate: press UP
06. Press STOP. The motor signals:
1 up = active, 1 down = inactive
VISIO
01. Bring the motor in an intermediate position
02. Press MENU, «Menu rx» appears on
display
03. Press 9 times NEXT.
«09» appears on display
04. Press STOP. The motor signals the current
value (1 to 3 movements)
05. Press UP the number of times equal to the
desired setting (1 to 3)
06. Press STOP. The motor signals the new
value (1 to 3 movements)
VISIO
01. Bring the motor in an intermediate position.
02. Press MENU, «Menu rx» appears on
display
03. Press 2 time PREV / 9 times NEXT.
«29» appears on display
04. Press STOP. The display flashes, the
motor performs some movement
05. Press together PREV and NEXT for about
2 seconds until the motor indicates that
the reset was performed (1 moving up /
down).
06. Reinstall the motor (see section 4).
5 poles
».
cable
05
Other transmitters...
See the User manual of
the transmitter at
section:
«RECEIVER MENU -
Function 18 -
Buttons logic»
Other transmitters...
See the User manual of
the transmitter at
section:
«RECEIVER MENU -
Function 17 -
Test radio»
Setting
N° of movements
1 Minimum tensioning
2 Medium tensioning
3 Maximum tensioning
Other transmitters...
See the User manual of
the transmitter at
section:
«RECEIVER MENU -
Function 09 -
Torque reduction»
Other transmitters...
See the User manual of
the transmitter at
section:
«RECEIVER MENU -
Function 29 -
Receiver reset»
gray
black
brown
blue
yellow/green
