2.5.

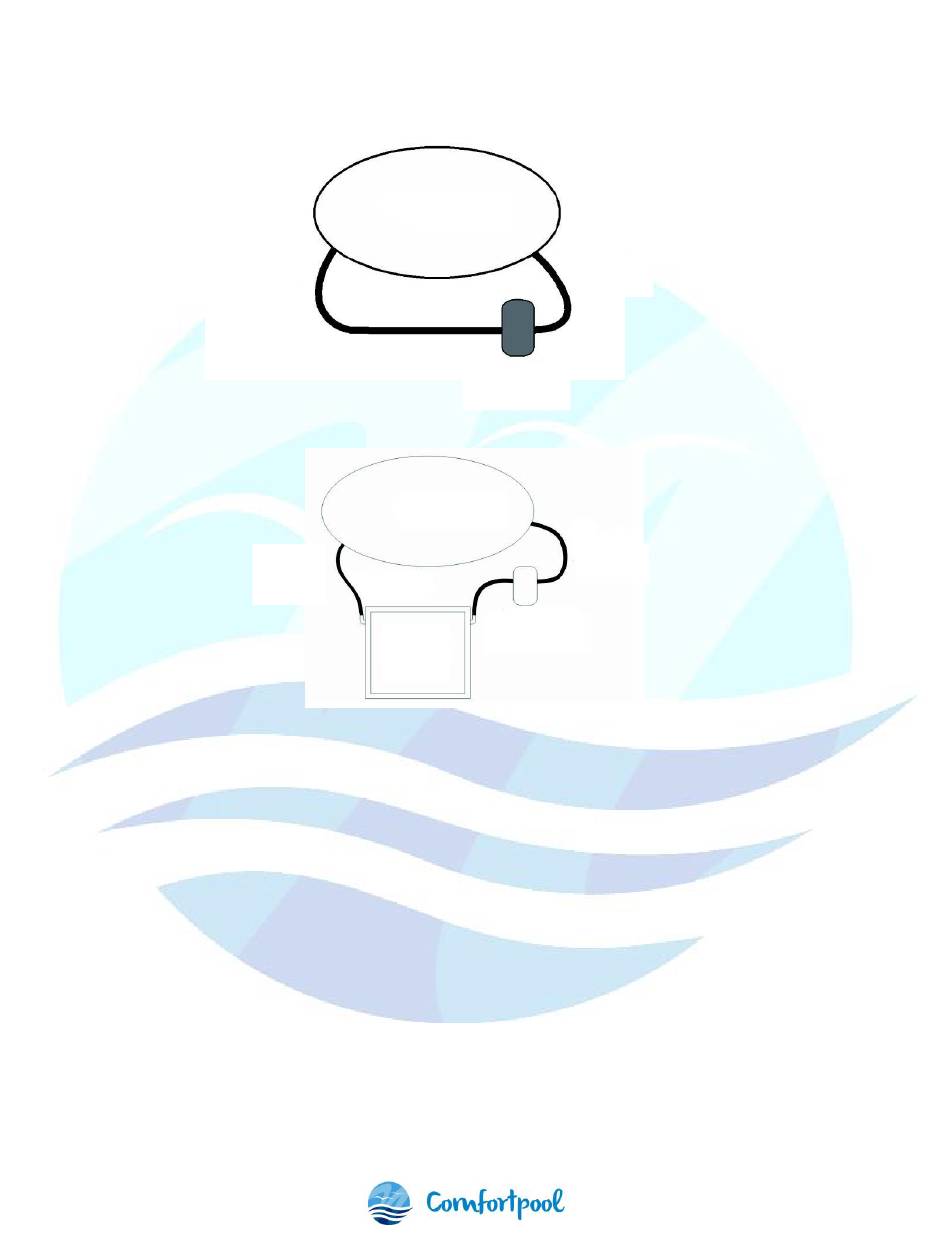

Installation illustration

Situation before installation:
Situation after installation:
* Above drawing is for demonstrative purposes only; piping layout is for reference only. The drawing is illustrative
and not to scale, dimensions may differ from the enclosed product.
2.6. Installation instructions
Solar mat - pool outlet
These instructions assume that the pool and filtration system are already installed and that a pool hose is
attached to the pool's water inlet.
Solar mat - filter pump
6. Turn off the filter pump.
7. Block the water flow on both sides between the pool inlet and the pump outlet so that water does not flow out
through the hoses.
8. Disassemble the pool hose that runs from the filter pump to the pool inlet and set it aside.
9. Depending on the filter pump and the desired location of the solar mat, you must select the input and output
of the solar mat.
10. Take a pool hose and connect it between the pump (where the return hose was previously connected) and
the water inlet of the solar mat, using hose clamps.
Solar mat - pool inlet
return
hose
pool
return
hose
solar
mat
pool
hose
filter pump
hose
filter pump
|
