Back Box Installation in Drywalls

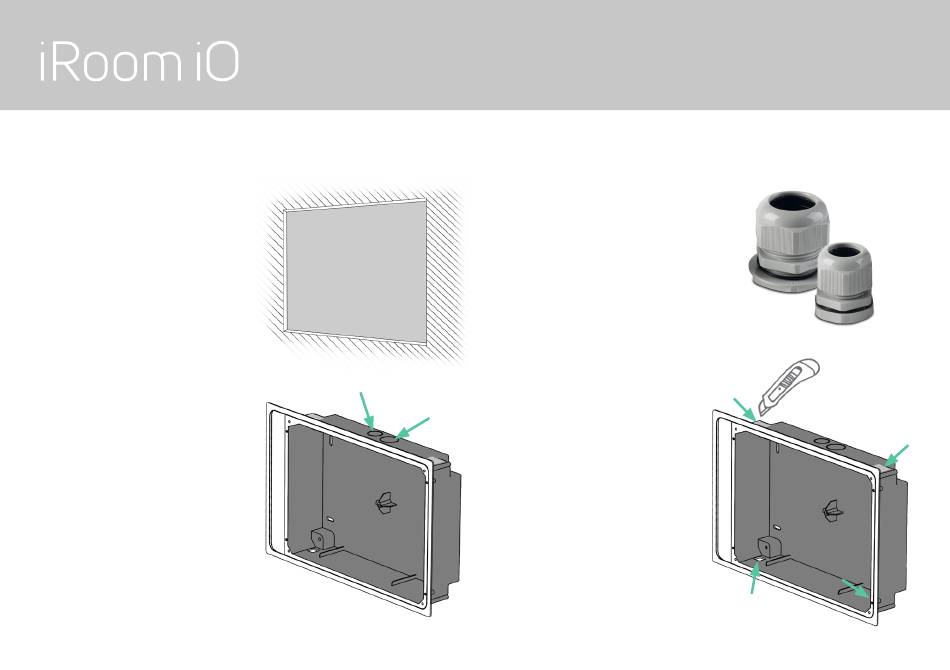

1. Prepare the recess in the wall
using the included cut-out
template. See also cut-out
dimensions on page 24.
2. Remove the knockout(s) for the
power cable from the back box.
If you use PoE+ to power
your touchDock you'll need
to remove only the small
knockout. If you use a regular
power cable you'll need
to remove both the large
knockout for the power cable
and the small knockout for the
LAN cable.
intelligence. on.
3. Feed the power cable through
the opening in the back box.
Use the included cable fitting(s)
that provide strain-relief.
4. With a cardboard knife, cut
small holes into the silver
safety strips that cover the
corner openings for the
mounting clamps.
Do not remove the safety
strips since they protect your
docking station from dust and
dirt buildup.
