Install the Docking Station

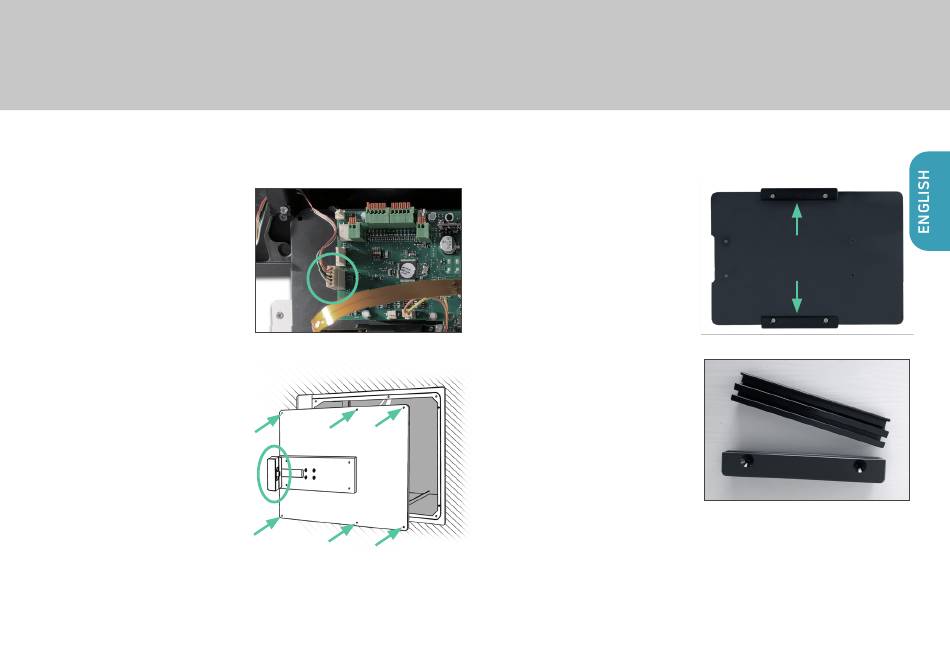

1. Connect the keypad control
cable that's attached to the
Aluminum frame to the upper
5-pin connector on the circuit
board of the docking station.
2. After connecting the cables,
insert the docking station into
the opening of the aluminum
frame that's attached to the
back box and fix it with the 6
flat head screws (M3 x 12).
The charging block needs to
be on the left side for
horizontal installation or on
the bottom side for vertical
installation.
Page 11
3. Optional step for some
touchDock models and iPad
models:
Depending on the docking
station model and the iPad you
want to use there is a second
set of guide rails included.
Refer to the included note in
the box to find out if you need
to swap the guide rails for your
iPad.
If necessary, unscrew the
guide rails from the glass
panel and replace them before
attaching the glass panel to
the docking station.
