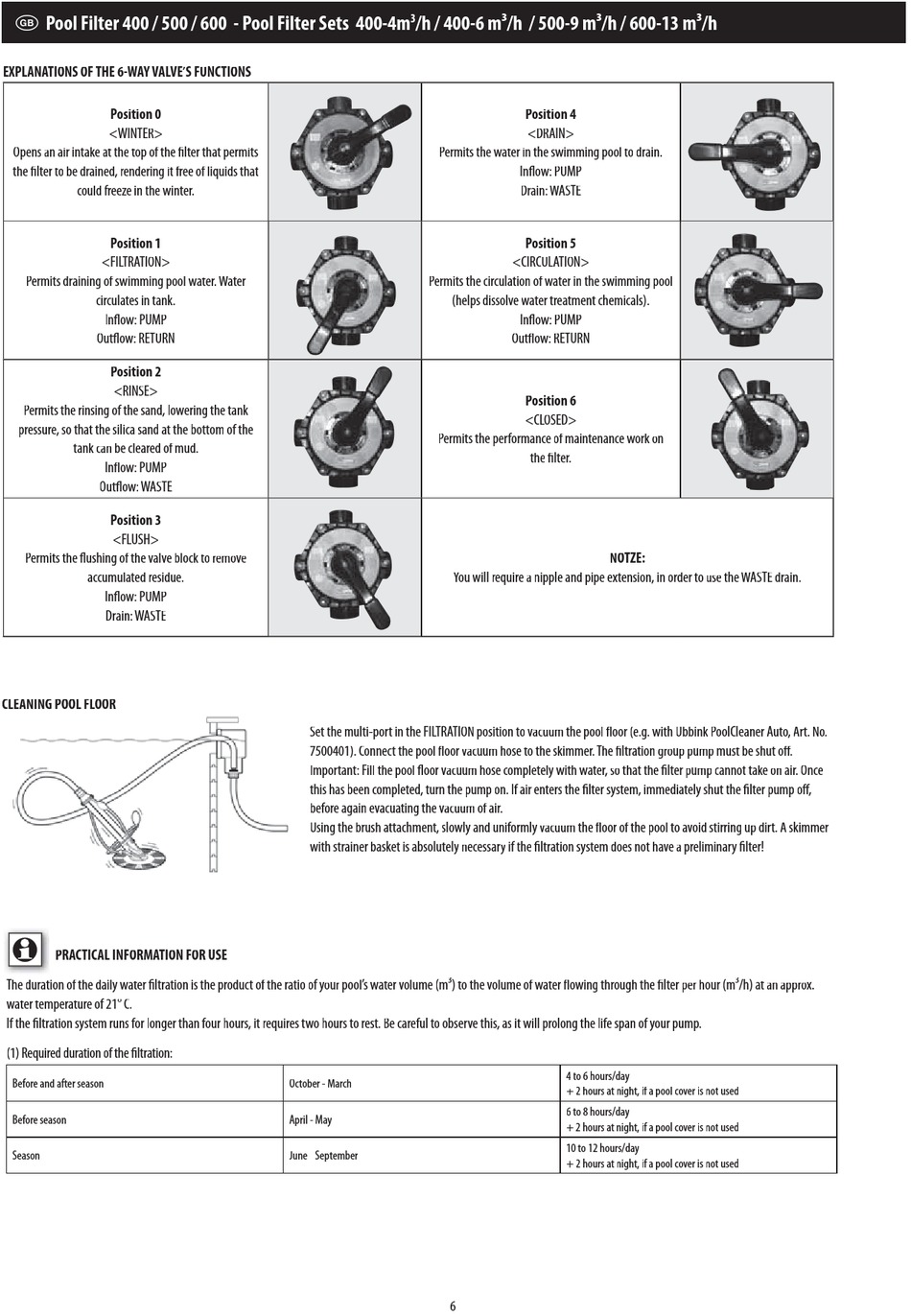

Pool Filter 400 / 500 / 600 - Pool Filter Sets 400-4m
EXPLANATIONS OF THE 6-WAY VALVE'S FUNCTIONS
Position 0
<WINTER>
Opens an air intake at the top of the filter that permits
the filter to be drained, rendering it free of liquids that
could freeze in the winter.
Position 1
<FILTRATION>
Permits draining of swimming pool water. Water
circulates in tank.
Inflow: PUMP
Outflow: RETURN
Position 2
<RINSE>
Permits the rinsing of the sand, lowering the tank
pressure, so that the silica sand at the bottom of the
tank can be cleared of mud.
Inflow: PUMP
Outflow: WASTE
Position 3
<FLUSH>
Permits the flushing of the valve block to remove
accumulated residue.
Inflow: PUMP
Drain: WASTE
CLEANING POOL FLOOR CLEANING POOL FLOOR
PRACTICAL INFORMATION FOR USE
The duration of the daily water filtration is the product of the ratio of your pool's water volume (m³) to the volume of water flowing through the filter per hour (m³/h) at an approx.
water temperature of 21° C.
If the filtration system runs for longer than four hours, it requires two hours to rest. Be careful to observe this, as it will prolong the life span of your pump.
(1) Required duration of the filtration:
Before and after season
Before season
Season
3 /h / 400-6 m³/h / 500-9 m³/h / 600-13 m³/h
Permits the water in the swimming pool to drain.
Permits the circulation of water in the swimming pool
(helps dissolve water treatment chemicals).
Permits the performance of maintenance work on
You will require a nipple and pipe extension, in order to use the WASTE drain.
Set the multi-port in the FILTRATION position to vacuum the pool floor (e.g. with Ubbink PoolCleaner Auto, Art. No.
7500401). Connect the pool floor vacuum hose to the skimmer. The filtration group pump must be shut off.
Important: Fill the pool floor vacuum hose completely with water, so that the filter pump cannot take on air. Once
this has been completed, turn the pump on. If air enters the filter system, immediately shut the filter pump off,
before again evacuating the vacuum of air.
Using the brush attachment, slowly and uniformly vacuum the floor of the pool to avoid stirring up dirt. A skimmer
with strainer basket is absolutely necessary if the filtration system does not have a preliminary filter!
October - March
April - May
June - September
6
Position 4
<DRAIN>
Inflow: PUMP
Drain: WASTE
Position 5
<CIRCULATION>
Inflow: PUMP
Outflow: RETURN
Position 6
<CLOSED>
the filter.
NOTZE:
4 to 6 hours/day
+ 2 hours at night, if a pool cover is not used
6 to 8 hours/day
+ 2 hours at night, if a pool cover is not used
10 to 12 hours/day
+ 2 hours at night, if a pool cover is not used
