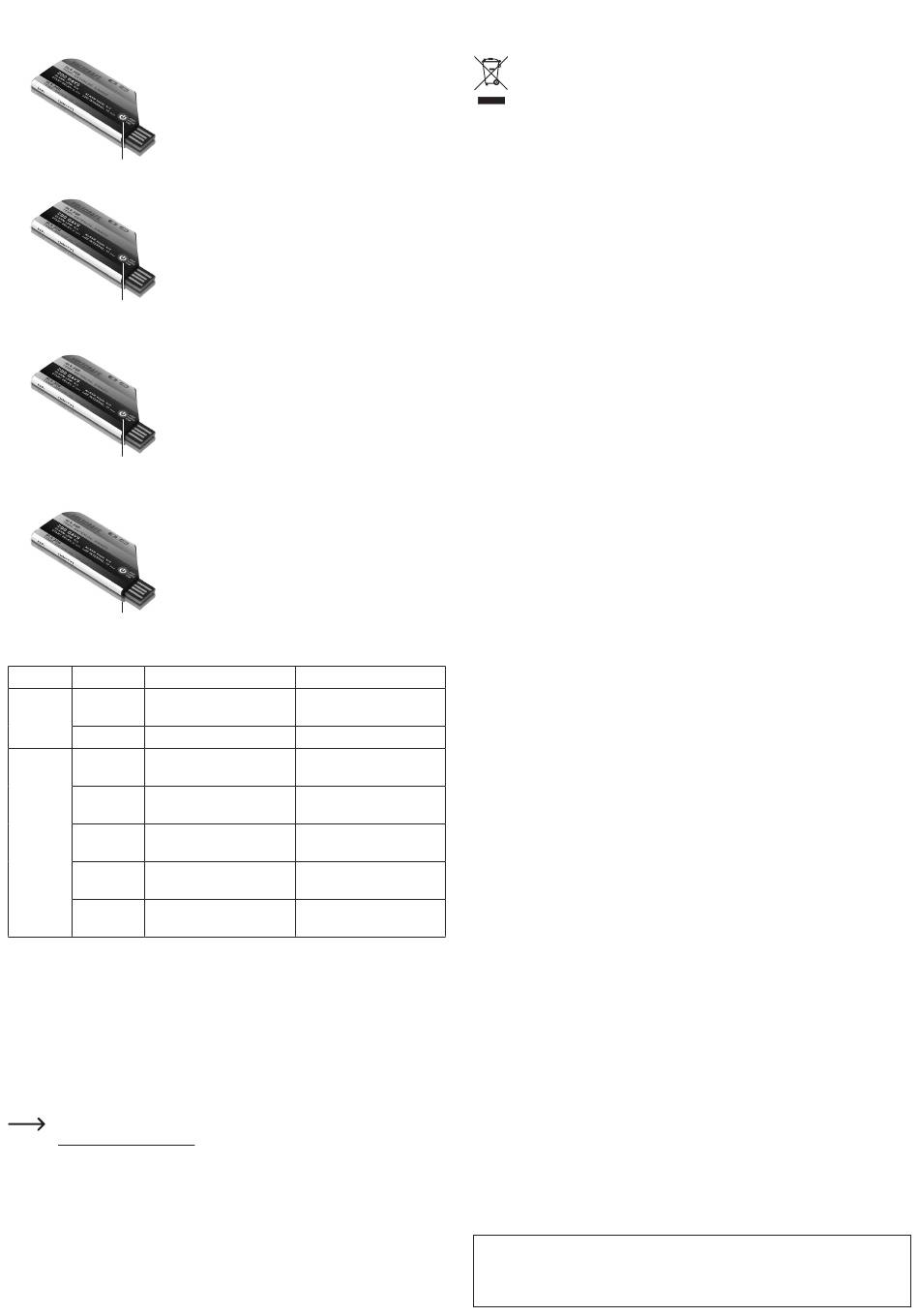

VOLTCRAFT DLS-200 Bedienungsanleitung Seite 4

1. Press and hold the Start/Stop button for 5 seconds to start recording. The RECORD LED
will flash 5 times to indicate that recording has started. Tear off the serial number label for
your reference.
Press Botton for 5 Seconds
2. While recording, press the Start/Stop button to check the status of the logger.
Status Request
3. Press and hold the Start/Stop button for 5 seconds to stop recording. The ALARM LED will
flash 5 times to indicate that recording has stopped.
Press Botton for 5 Seconds
4. When recording has stopped, tear off the transparent plastic cover and connect the logger
to a computer's USB port to view the auto-generated PDF report.
Tear off
Operation Indication
Operation Status Action
Start logger Press and hold for 5 seconds
Start/Stop
Stop logger Press and hold for 5 seconds
Not started Press button
Recording
Press button
Status
– OK
request by
Recording –
pressing Press button
Alarm
Start/Stop
Stopped
button
Press button
– OK
Stopped –
Press button
Alarm
Care and cleaning
• Disconnect the product from the mains before each cleaning.
• Do not use any aggressive cleaning agents, rubbing alcohol, or other chemical solutions as
they can cause damage to the housing and functioning of the product.
• Clean the product with a dry, fibre-free cloth.
Declaration of Conformity (DOC)
Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this
product conforms to the 2014/53/EU directive.
Click on the following link to read the full text of the EU declaration of conformity:
www.conrad.com/downloads
Enter the product item number in the search box. You can then download the EU
declaration of conformity in the available languages.
Disposal
a) Product
b) Batteries
• As the end user, you are required by law (Battery Ordinance) to return all used batteries.
• Batteries containing hazardous substances are labeled with this symbol to indicate that
• Used batteries can be returned to collection points in your municipality, our stores or
You thus fulfill your statutory obligations and contribute to the protection of the environment.
Technical data
Recording option .......................... Single-use
Temperature accuracy .................. ± 0.5 °C (-20 °C to 40 °C)
Temperature resolution ................. 0,1 °C
Data storage capacity ................... 115,200 readings
Shelf life ........................................ 2 years (extreme low or high temperatures may shorten
Battery .......................................... CR2450
Recording interval ......................... 10 minutes
Recording duration ....................... 200 days max. (customisable)
Alarms .......................................... 2 thresholds or without an alarm
Startup mode ................................ Button
Stop mode .................................... Button or plug into computer's USB port
Sensor type .................................. NTC
Protection class ............................ IP67/NEMA 6
Certifications ................................. EN12830, CE, RoHS
Report generation ......................... Auto-generated PDF
Connection Interface .................... USB 2.0 A-type
LED confirmation
Alarm configuration ....................... Optional
RECORD LED flashes
Operating conditions ..................... -30 °C to 70 °C
5 times
ALARM LED flashes 5 times
Storage conditions ........................ -20 °C to 50 °C
RECORD LED + ALARM
LED flashes 1 time
Dimensions ................................... 75 mm x 30 mm x 7 mm (L x W x H)
Weight .......................................... Approx. 15 g (with battery)
RECORD LED flashes 1 time
ALARM LED flashes 1 time
RECORD LED flashes
2 times
ALARM LED flashes 2 times
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product in accordance
with applicable regulatory guidelines.
Disposing of them in household waste is prohibited.
disposal in domestic waste is forbidden. The abbreviations for the heavy metals involved
are: Cd = Cadmium, Hg = Mercury, Pb = Lead (name on batteries, e.g. below the waste bin
icon on the left).
wherever batteries are sold.
± 1.0 °C (below -20 °C; above 40 °C)
battery life)
0% to 100% RH
<75% RH for -10 °C to 30 °C; <50% RH for 30 °C to 50 °C
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights in-
cluding translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data
processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited. This publication
represent the technical status at the time of printing.
Copyright 2020 by Conrad Electronic SE. *2315346_v2_1220_02_DS_m_4L_(1)
