Kranzle Therm 1017 Bedienungsanleitung-Ersatzteillisten Seite 7

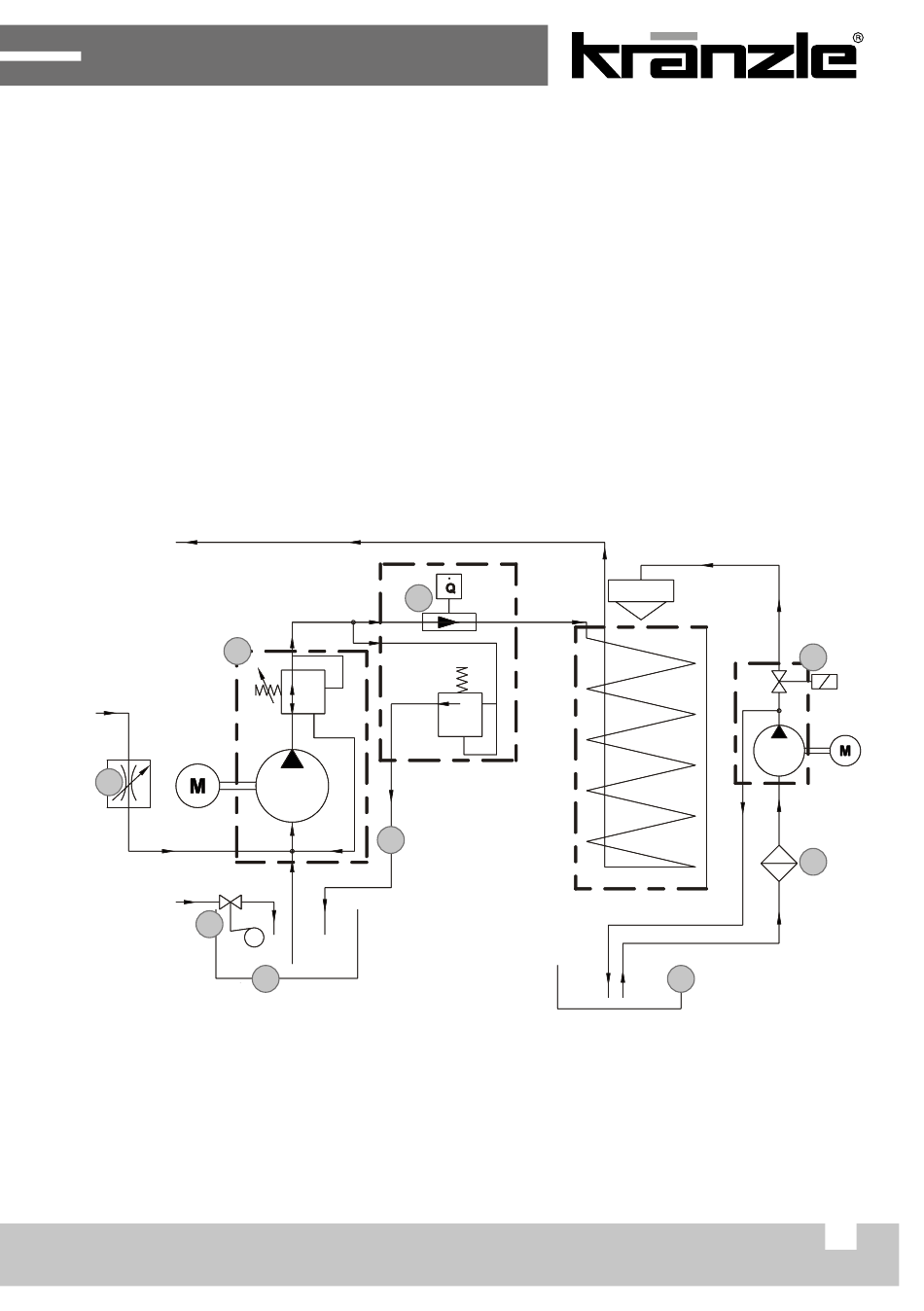

Pipeline plan Pipeline plan
1. Float valve, water inlet 1. Float valve, water inlet
2. Water tank 2. Water tank
3. Detergent valve 3. Detergent valve
4. high-pressure pump with 4. high-pressure pump with
integrated unloader valve integrated unloader valve
5. Flow-Safety-Block with 5. Flow-Safety-Block with
integrated safety valve for integrated safety valve for
heating coil and flow monitoring heating coil and flow monitoring
device device
4
3
1

6. By-Pass line 6. By-Pass line
7. Fuel pump with solenoid valve 7. Fuel pump with solenoid valve
8. Fuel filter 8. Fuel filter
9. Fuel tank 9. Fuel tank
5

7
8
9
7
