Thank you for buying a LSL product. Because of our passion for motorcycles all our products are designed to meet your needs as a motorcyclist. We wish you always a safe and pleasant ride with your new LSL product from Paaschburg
& Wunderlich GmbH.
CAUTION:
Important safety information. If you are not a trained mechanic, contact a specialist workshop to install the LSL product. Failure to comply with the installation instructions can cause damage to your vehicle and invalidate
your warranty claims. No liability is accepted for consequential damage. The manufacturer assumes no liability for damage due to improper installation of LSL products. Improper use of this product can impair driving safety.
Unauthorized reworking and / or changing of the LSL product can lead to failure of the function and is not permitted. Structural changes to the parts are prohibited and lead to the loss of liability and guarantee claims. Please keep
these instructions for future reference.

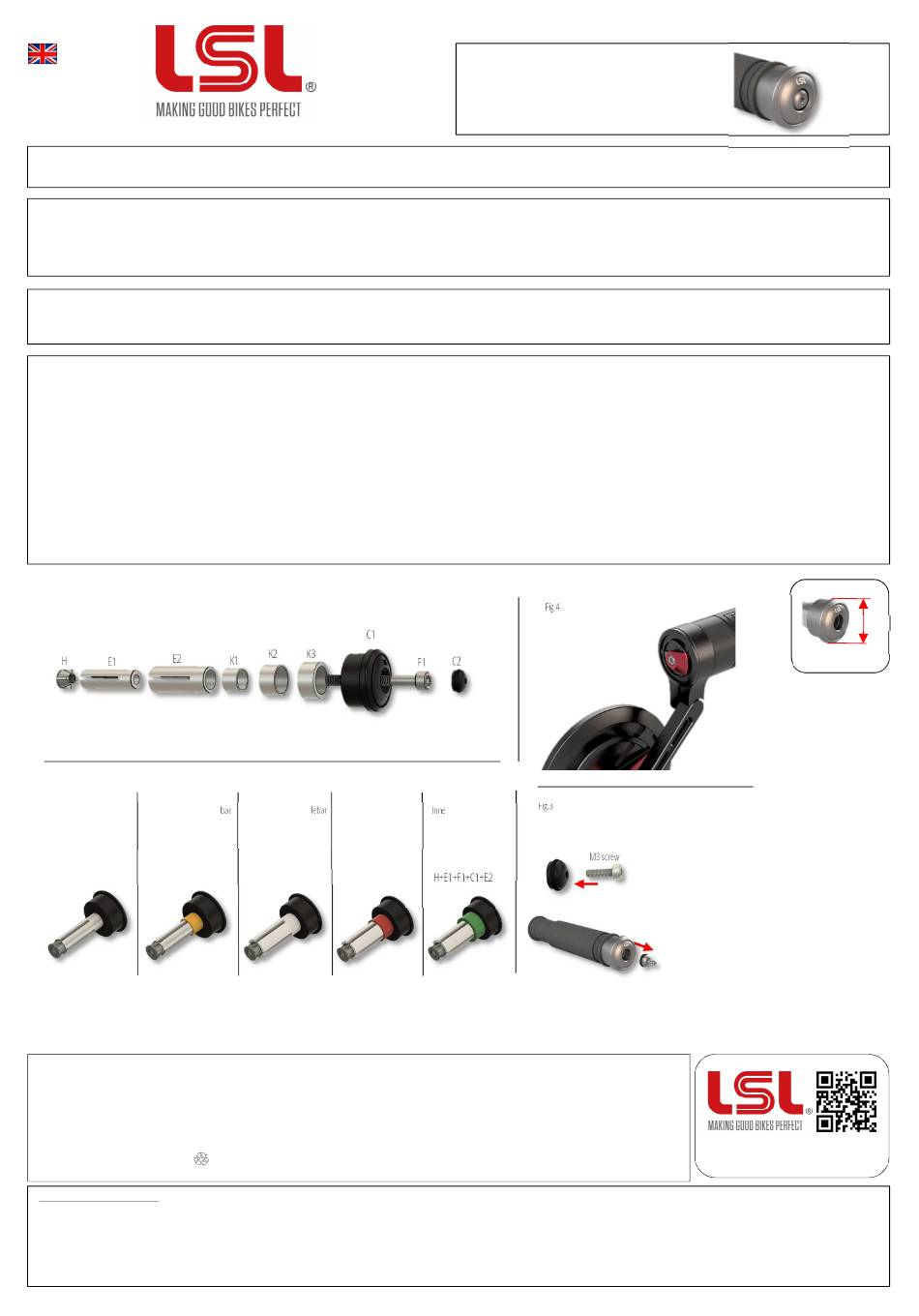

Scope of delivery RiseUp Clamps:
• 1 Pair LSL handlebar end
with mounting kit (Fig 1)
Assembly of the LSL handlebar
1. Make sure that your motorcycle stands solidly on the ground.
2. Clean the inside of your handlebar.
3. Check the inside diameter of the handlebar (aluminum handlebar 14mm / steel handlebar 18mm).
4. Assemble the parts according to the following figure. (Fig 2)!
5. Check that the wings of the conical nut H fit inside the slots of the sleeve E1. This will prevent the turning of the sleeve inside of the handlebar during the installation.
Secure the screw with screw locking (not included)
CAUTION:
6. Position the assembly inside the handlebar and turn the screw F1 tight.
7. Place the part C2 into C1. If part C2 has to be dismantled, screw a M3 screw (not included in delivery) into the thread into the C2 part and pull C2 out (Fig 3).
CAUTION:
Make sure that the weight C1 does not impair the function of the rotating gas sleeve! A jammed throttle affects the driving safety.
Make sure that the steering system and the handlebars with all operating parts can move freely from other vehicle parts, especially the fuel tank.
Find suitable housings, turn signals, taillights, power resistors, electronic flasher relays, adapter cables and other accessories in our Webshop!
Fig. 1
E2
H
E1
Fig. 2
Inner diameter handlebar
Inner diameter handlebar
max. 13,9mm
max. 15,9mm
H+E1+F1+C1+K1
H+E1+F1+C1
Before each ride: It is the duty and responsibility of the rider to regularly check and maintain the safety-related vehicle parts. Before starting your journey, check the correct adjustment and function of the LSL
products and the tightness of all screwed connections.
Warranty: Take the time to do a 100% professional job of installing the LSL products. Take into account all our installation and safety instructions.
A faulty, improper installation or handling of the product will void the warranty.
Maintenance/Care: Do not use aggressive detergents to care for the LSL products. The LSL products can be perfectly cleaned with a simple, lukewarm detergent solution. Contact with brake fluid, brake cleaner,
fuel, etc. should be avoided. Immediately pick up any unintentionally applied impurities with a soft cloth and clean the surface with detergent solution
Enviromental Information: This LSL product may not be disposed in the normal household rubbish at the end of its lifetime. The disposal can be done through the Paaschburg u. Wunderlich customer service
or a local return and waste collection institution.
Exclusion of liability and guarantee regulation:
In the event of improper handling, installation or use of the device, warranty and guarantee claims may expire. Due to the non-verifiability of the correct application, Paaschburg und Wunderlich GmbH assumes no liability for direct or indirect damage or consequential damage resulting from the operation of the device.
This does not apply if the damage is based on intent or gross negligence on the part of Paaschburg & Wunderlich GmbH, or if the damage consists in injury to life, limb or health, or Paaschburg & Wunderlich GmbH has culpably violated an essential contractual obligation (cardinal obligation).
Paaschburg & Wunderlich GmbH, Am Alten Lokschuppen 10a, D-21509 Glinde
Tel.: +49 (0) 40 248 277-0; E-Mail:
sales@pwonline.de
136-RE1A_Rev00_2020-10
C1
K2
K3
K1
Inner diameter handlebar
Inner diameter handlebar
max. 17,9mm
max. 20,9mm
H+E1+F1+C1+E2
H+E1+F1+C1+E2
Mounting and safety instructions
LSL handlebar end „RETRO"
Fig 4
C2
F1
Fig.3
Inner diameter handlebar
> 21mm
M3 screw
H+E1+F1+C1+E2
A
A = Ø 36,6 mm
Example with barend mirror #301-5232
Similar to illustration
Abbildung ähnlich
Similar to illustration
www.LSL.eu
All rights reserved. Changes and errors are excepted.
136-RE1A_Rev00_2020-10
