Caliber mcd 171 Schnellstartanleitung

S P E C I F I C A T I O N S
GENERAL
Power Supply DC 11 -14V
Polarity Negative Ground
Speaker impedance 4 ohms
Power Output 4 x 55W
CD PLAYER
System Compact disc audio system
Usable disc Compact disc
Sampling frequency 44.1KHz
No of quantization bits 1bit
Frequency 5-20,000Hz
Number of channels 2 stereo
S/N Ratio 90dB

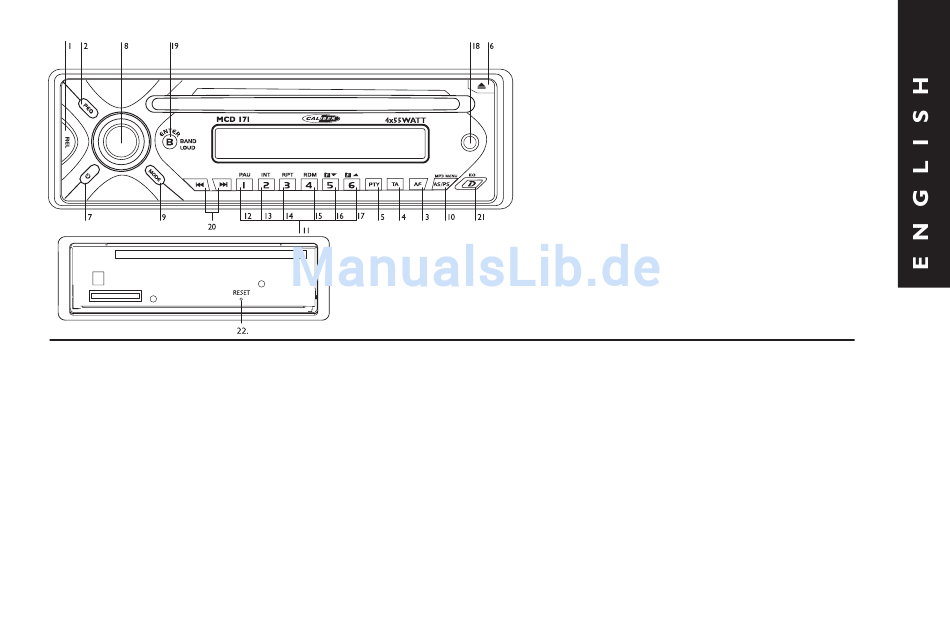

1. PANEL RELEASE BUTTON
2. PEQ (FLAT-CLASSIC-POPM-ROCKM-DSP OFF)
3. AF BUTTON
4. TA BUTTON
5. PTY BUTTON
6. DISC EJECT
7. POWER BUTTON
8. ROTARY VOLUME KNOB
AUDIO SELECT BUTTON/ MP3 FILE SEARCH
9. MODE BUTTON
10. AUTOMATICALLY STORE/PRESET SCAN (AS/PS)/MENU BUTTON
11.PRESET STATIONS BUTTONS (1~6)
12.PAUSE BUTTON
13.INTRO BUTTON
14.REPEAT BUTTON
15.SHUFFLE (RANDOM) BUTTON
16.PREVIOUS FOLDER BUTTON
17.NEXT FOLDER BUTTON
18.AUX IN JACK
19.BAND/LOUD/MP3 ENTER BUTTON
20.TUNING UP/DOWN,TRACK UP/DOWN BUTTONS
21.DISPLAY BUTTON/ MP3 ID3 BUTTON
22.RESET BUTTON
RADIO SECTION
FM
Frequency Range 87.5-108 Mhz
Usable Sensitivity Better than 15dB at S/N 30 dB
Stereo Separation 25 dB at 1KHz
S/N Ratio 50 dB
AM/MW
Frequency Range 522-1620 Khz
Intermediate Frequency 450KHz
Usable Sensitivity Better than 45dB
S/N Ratio 40 dB
REMARK :
Specifications subject to change without notice.
1
