S P E C I F I C A T I O N S
GENERAL
Power Supply DC 11 -14V
Polarity Negative Ground
Speaker impedance 4 ohms
Power Output 4 x 55W
CD PLAYER
System Compact disc audio system
Usable disc Compact disc
Sampling frequency 44.1KHz
No of quantization bits 1bit
Frequency 5-20,000Hz
Number of channels 2 stereo
S/N Ratio 70dB
11:07 Pagina 1

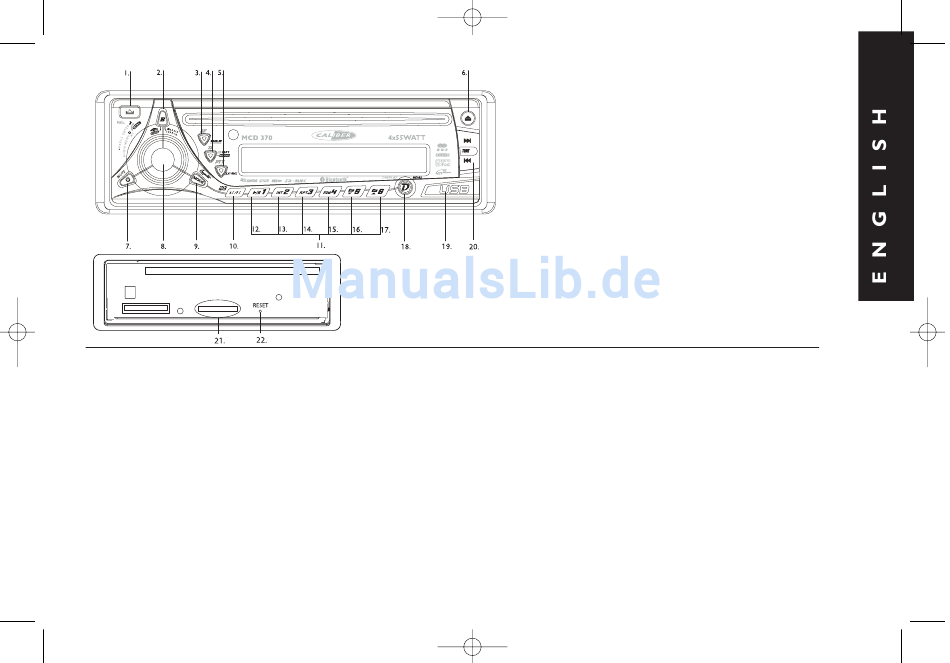

1. PANEL RELEASE BUTTON
2. BAND/FILE & FOLDER SEARCH/FILE ERASE/IPOD SEARCH BUTTON
3. AF/SUBWOOFER BUTTON
4.TA/RECORD & COPY BUTTON
5. PTY/IX BASS BUTTON
6. DISC EJECT
7. POWER/MUTE BUTTON
8. ROTARY VOLUME KNOB
AUDIO SELECT/ENTER/DIAL BUTTON
9. MODE/CALL TRANSFER/DIAL BUTTON
10. AUTOMATICALLY STORE/PRESET SCAN (AS/PS)/ID3/IPOD
INFORMATION BUTTON
11. PRESET STATIONS BUTTONS (1~6)
12.PAUSE/PLAY BUTTON
13. INTRO BUTTON
14. REPEAT BUTTON
15. SHUFFLE (RANDOM) BUTTON
16. PREVIOUS FOLDER BUTTON
17. NEXT FOLDER BUTTON
18. DISPLAY BUTTON/MENU BUTTON
19. USB COVER
20.TUNING UP/DOWN,TRACK UP/DOWN BUTTONS
21. SD/MMC CARD INPUT
22. RESET BUTTON
RADIO SECTION
FM
Frequency Range 87.5-108 Mhz
Usable Sensitivity Better than 15dB at S/N 30 dB
Stereo Separation 25 dB at 1KHz
S/N Ratio 50 dB
AM/MW
Frequency Range 522-1620 Khz
Intermediate Frequency 450KHz
Usable Sensitivity Better than 45dB
S/N Ratio 40 dB
REMARK :
Specifications subject to change without notice.
