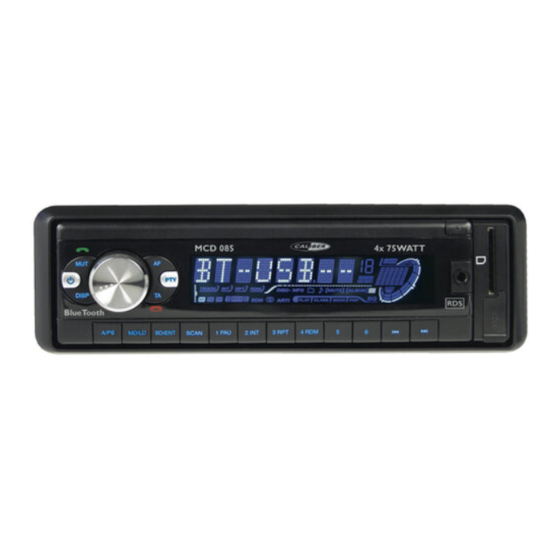

Caliber mcd 085 Schnellstartanleitung

1 6
2
4
18 11 5
SYSTEM
KEY
Short press Long press
1 Mute
2 Power on Power off
3
4 Audio menu Menu
5 Mode Loud
6 Rotary volume
7
8
9
10
11
12
13
14
15
16
17
18 Display
19
20
21
22
Panel release Push this button to release the frontpanel
Power Power function to activate or deactivate the unit. To deactive press and hold the power button for 3 seconds
Band Band selection allows you to select different reception bands, f.i. FM1, FM2, FM3
Mute Push this button to turn off the sound, push again to return to the last volume level.
OK Push this button to confirm the option you have selected.
AF AF stands for Alternative frequencies; the tuner will return to alternative frequencies whenever the reception signal is getting worse
TA TA stands for Traffic announcement which means that it will give you information about the traffic (if broadcasted) no matter what mode you are in (USB, SD) it will automatically interrupt the
music and give the information, after that it automatically switches back to the selected mode.
PTY The PTY function allows you to search for stations with a particular program type like NEWS group and POP group both of these groups are divided in different subjects. PTY "POP", pop/rock,
easy/light, classics/others, jazz/country, nation/oldies. PTY "NEWS", news/info, sport/educatie, culture/science, weather/finance, social/religion
Tune up/down Long press to move the radio frequency number up/down step by step.
Info View played track information
Menu (system) Hold button for 3 seconds to open the menu. Press repeatedly to view menu items.
Audio menu The Audio menu button gives you the possibility to adjust your sound system with the following options Bass, Treble, Balance and Fader. These options can be used to fine tune your sound.
Mode The mode button allows you to go from one source to another source (f.i. Tuner) by pushing the button as many times as needed.
Scan (tuner) Each found station will be played for 5 seconds
AS AS stands for Autostore; in tuner mode it will automatically store the 6 strongest stations (M1-M6). Note: all previous stored stations are lost
PS PS stands for Preset stations this means that when you push this button in tuner mode it will automatically switches to the first preset (M1) then it will go to the next and so on.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode
Pause/Play This button allows you in USB or SD mode to play or to pause the music.
INT INT will play 10 seconds of each song on the USB or SD. If the preferred song is playing, push again and it will play that song
Repeat Repeat will play a selected song or album continuously. Available in USB and SD mode
Random Shuffle will play all the songs random. Available in USB and SD mode
File/track down/up In MP3 mode press this button to go up or down one folder.
Fast forward/backward Long press to fast forward to the USB or SD
Seek up/down Short press to move to the next station automatically
3,5mm AUX in Jack To connect an external audio system
USB input When inserting a USB stick the unit will switch to USB mode. (Max 1000 tracks)
SD card input Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 2GB card, max 1000 tracks)
reset (behind panel) Use a non-metallic pointed object to press and hold the reset button for 5 seconds. The unit will be set to factory default.
BLUETOOTH
Pairing Perform pairing through your mobile by searching for all devices. When "CAR--BT" is found, do pairing by entering "0000" for security code.
Reconnect The unit will normally auto-reconnect. If a call is answered when the mobile phone is out of reach (>2meters) the headunit will not auto-reconnect
Answer incoming call Press MUTE button or GREEN button on remote if you wish to answer the call.
Disconnect / Reject Press TA button or RED button on remote if you not wish to answer the call, and return to normal playing mode
call� � � � � � � � �
Call History Press and hold GREEN Button on remote, unit displays maximum 20 entries based on incoming calls and calls made through the remote. Turn rotary volume to select entry and press GREEN
button to call out.
8 10 9
19 22 12 13 14
TUNER
Short press Long press
AF
TA
PTY
PS AS
M1 Memory 1
M2 Memory 2
M3 Memory 3
M4 Memory 4
M5 Memory 5
M6 Memory 6
Band
Seek down Tune down File/track down
Seek up Tune up
Scan
Note! Do not operate the unit while driving.
15 16 17 20 21
MP3/WMA
Short press Long press
Panel release button
Ok
3.5mm AUX in Jack
Pause/play
Repeat track
Repeat DIR
Repeat all
INT
Random
Folder down
Folder up
Info
Enter
Fast backward
File/track up Fast forward
Description of the functions
3 7
MCD 085
English
BT Audio
Short press
Answer incoming
disconnect call
Pause/play
File/track down
File/track up
BLUETOOTH
Long press
call
Reject or
